Roll Groovers
Roll grooving is commonly used in specialized installations like sprinkler systems, large heating systems, and drainage pipe systems. Gruvmaster manufactures roll groover machines, ranging from 1-inch to 24-inch, which are used to facilitate the connection of pipes using mechanical couplings or fittings, allowing for quick and secure joining.
Pipe material:
Garbon steel pipe, Stainless steel pipe, Galvized steel pipe, Black steel pipe
Explore Our Roll Grooving Machines
Advantages of the Roll Groovers
Expert Craftsmanship
With over 20 years of design and production experience, our team ensures precision engineering. Combined with 18+ years of sales expertise, we understand your needs inside out.
Unique Design
Our roll grooving machines feature an exclusive independent oil pump, extending lifespan and preventing dust accumulation - a design unmatched by competitors.
Global Trust
Trusted worldwide, our quality products have earned acclaim from customers in the USA, South Korea, Spain, Brazil, and beyond.
Efficient Production
With a monthly capacity of up to 800 sets, we meet demand promptly, backed by ample inventory for seamless supply.
Extended Warranty
Enjoy 18 months of worry-free operation with our comprehensive product warranty, including free replacement parts for non-wearable components.
Accessible Support
Gain access to operation manuals, instructional videos, and more, ensuring smooth operations anytime, anywhere.
Roll Grooving Machines Product Selection

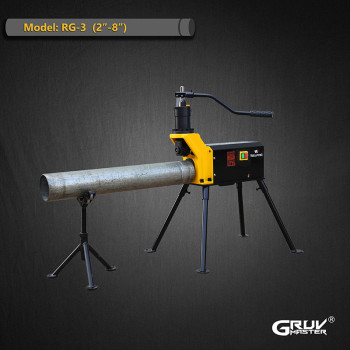

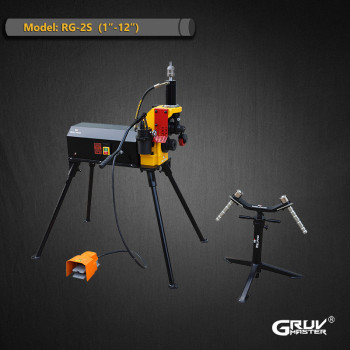

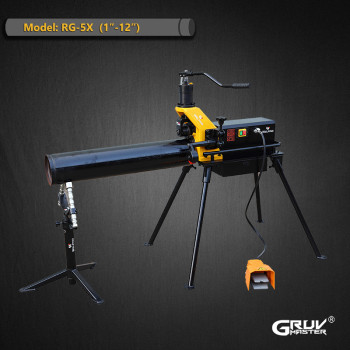

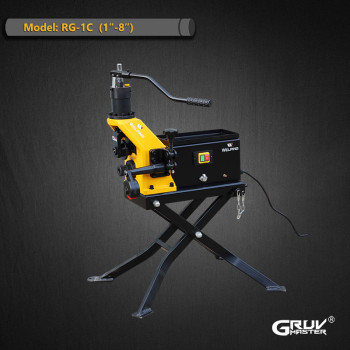

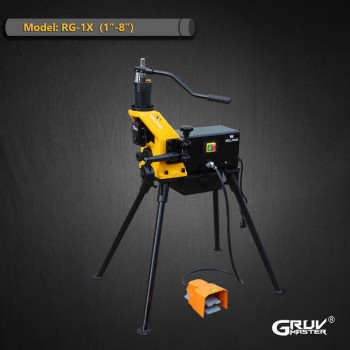

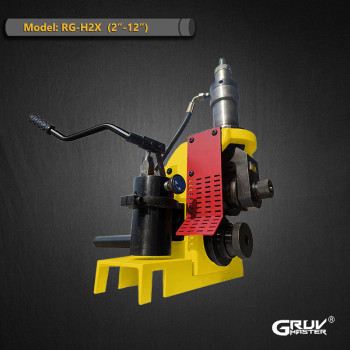

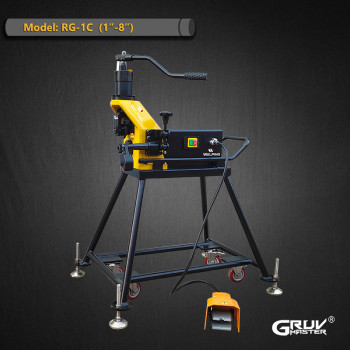

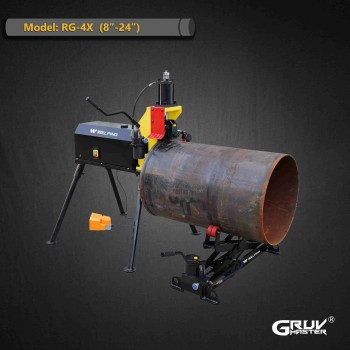

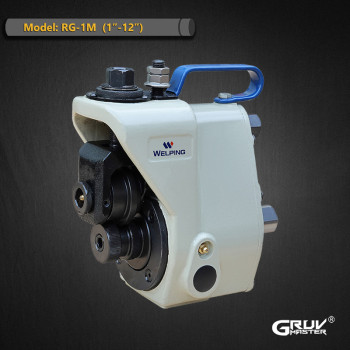

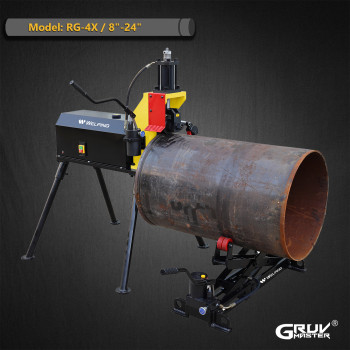

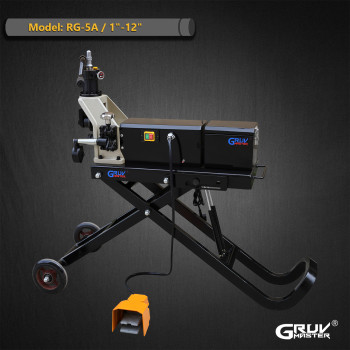

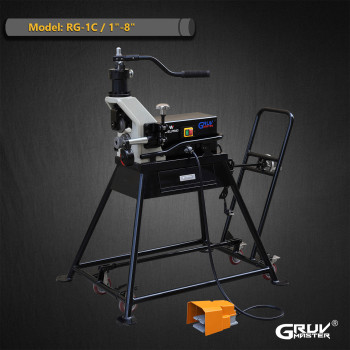

| Gruvmaster model code | RG-1M | RG-2M | RG-H1X | RG-H2X | RG-1X | RG-1C | RG-1A | RG-2X | RG-25 | RG-3 | RG-4X | RG-5X | RG-5A | RG-6X | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Photo ref. |  |  |  |  |  5 |  |  |  |  |  |  |  |  |  | |
| Pipe range | DN | 25 ~ 300 | 25 ~ 150 | 50 ~ 200 | 50 ~ 300 | 25 ~ 200 | 25 ~ 200 | 25 ~ 200 | 50 ~ 300 | 25 ~ 300 | 50 ~ 200 | 200 ~ 600 | 25 ~ 300 | 25 ~ 300 | 50 ~ 400 |
| inch | 1" ~ 12" | 1" ~ 6" | 2" ~ 8" | 2" ~ 12" | 1" ~ 8" | 1" ~ 8" | 1" ~ 8" | 2" ~ 12" | 1" ~ 12" | 2" ~ 8" | 8" ~ 24" | 1" ~ 12" | 1" ~ 12" | 2" ~ 16" | |
| Max. | mm | 8mm | 6mm | 6mm | 10mm | 8mm | 8mm | 8mm | 10mm | 10mm | 6mm | 13mm | 8mm | 8mm | 10mm |
| pipe wall | inch | 5/16" | 1/4" | 1/4" | 3/8" | 5/16" | 5/16" | 5/16" | 3/8" | 3/8" | 1/4" | 1/2" | 5/16" | 5/16" | 3/8" |
| thickness | max. SCH | 1"~8" SCH40 10"~12" SCH30 | 1"~4" SCH40 5"~6" SCH10 | 2"~4" SCH40 5"~8" SCH10 | 2"~12" SCH40 | 1"~8" SCH40 | 1"~8" SCH40 | 1"~8" SCH40 | 2"~12" SCH40 | 1"~12" SCH40 | 2"~4" SCH40 5"~8" SCH10 | 8"~16" SCH40 18"~22" SCH30 24" SCH20 | 1"~8" SCH40 10"~12" SCH30 | 1"~8" SCH40 10"~12" SCH30 | 2"~12" SCH40 14"~16" SCH30/STD |
| Elct. Motor | ( Y / N ) | × | × | × | × | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ |
| Motor Power | Single ph. | / | / | / | / | 800 | 800 | 800 | 1100 | 1100 | 800 | NO | 1100 | 1100 | 1100 |
| (watts) | Three ph. | / | / | / | / | 700 | 700 | 700 | 750 | 750 | 700 | 2200 | 750 | 750 | 750 |
| Hdy. Feecing | ( Y / N ) | × | × | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ |
| Anti flare * | ( Y / N ) | × | × | × | √ | × | × | × | √ | √ | × | × | × | × | √ |
| Packing / move mode | carton / tool box | carton / tool box | carton | crate | 4-legs | trolly | cross legs | 4-legs | 4-legs | 4-legs | 4-legs | 4-legs | trolly w/air cyldr. | 4-legs | |
| Recommended Applications | small contractor, small fab-shop, maintenance of industrial pipeline | maitenance of sprinkler pipeline | small contractor, small fab-shop | midium and large fab shops | small pipes, small projects w/ low wall thickness pipes | small pipes, small projects w/ low wall thickness pipes | small pipes, small projects w/ low wall thickness pipes | high raise buidings, medium and large projects, massive grooving jobs | high raise buidings, medium and large projects, massive grooving jobs | for low end market price competition only | industrial pipeline roll grooving | for small contractor universal design, for low and medium thickness pipe | for small contractor one man operation, for low and medium thickness pipe | high raise buidings, medium and large projects, massive grooving jobs, pipe support w/hydraulic unit | |
Note *: only possible with SCH10 anti-flare roller set, opetional
Roll Grooving Machines Video
Roll Grooving Machines Video
Related File Downloads
Roll Grooving Machines User Manual
Mar 26,2024
What Do Our Clients Say
How To Choose A Proper Roll Groover?
The grooving machine operates on the principle of hard extrusion. A roll grooving machine, serving as a specialized tool, is utilized to create grooves on different metal pipe ends. The motor-driven rotating down roller spins the pipe, while the upper roller descends and applies pressure to the pipe by manipulating the pump handle, ultimately forming the groove. The hydraulic roll grooving machines are known for its compact design and ease of use. With its excellent performance and ability to avoid damaging the pipe coating. We supply a range of pipe groovers to meet different markets and ensure every project successfully completed with the proper size roll grooving machine. So. how to choose a proper roll groover?
- 1
- Pipe Characteristics: When you choose a roll grooving machine, it is essential to have a thorough understanding of the pipe properties such as pipe material, diameter, wall thickness, length, hardness, etc., and also consider other requirements for grooving.
- 2
- Considering the Working Size and Motor Power of Electric Hydraulic Roll Groovers: It is essential to thoroughly understand the technical parameters of each machine. This includes factors such as grooving capacity, wall thickness, voltage, power, and speed, as well as any auxiliary parts and functions. By carefully assessing these specifications in relation to the characteristics of the pipes being worked with, one can confidently select the most suitable electric hydraulic roll groover for the job.
- 3
- Processing Capabilities and Specialty Tubes: Focus on the groove rolling machine's processing capabilities, including its suitability for different materials. This is because some grooving machines may be better suited to processing specific types of metal, while a machine that can handle a wide range of materials may be needed, such as a grooving machine that can be used for Anti-flare and stainless steel pipes.
- 4
- Degree of Automation: The degree of automation is an important factor, especially for high-volume production. If the number of pipes to be grooved is large, it is recommended to choose a fully automated pipe grooving machine. Attention needs to be paid to whether the roll grooving machine has automation features, such as a numerical control (CNC) system, in order to increase productivity and reduce the operator's workload.
- 5
- Energy Consumption and Environmental performance: Considering the energy costs and environmental requirements, we are concerned about the level of energy consumption of the grooving machine and its compliance with the relevant environmental standards.
In addition, we offer customized services. If necessary, you can negotiate with us to produce equipment on demand. The effectiveness of the roll grooving machine differs depending on the specific model, hence it is important to select carefully. As a reputable pipe tools manufacturer, we provide a wide range of models including roll grooving machines, pipe cutting machines, hole cutting machines, pipe threading machines, and grooving production lines for you to choose from. If you have any needs or doubts about pipe tools, welcome to contact us.
