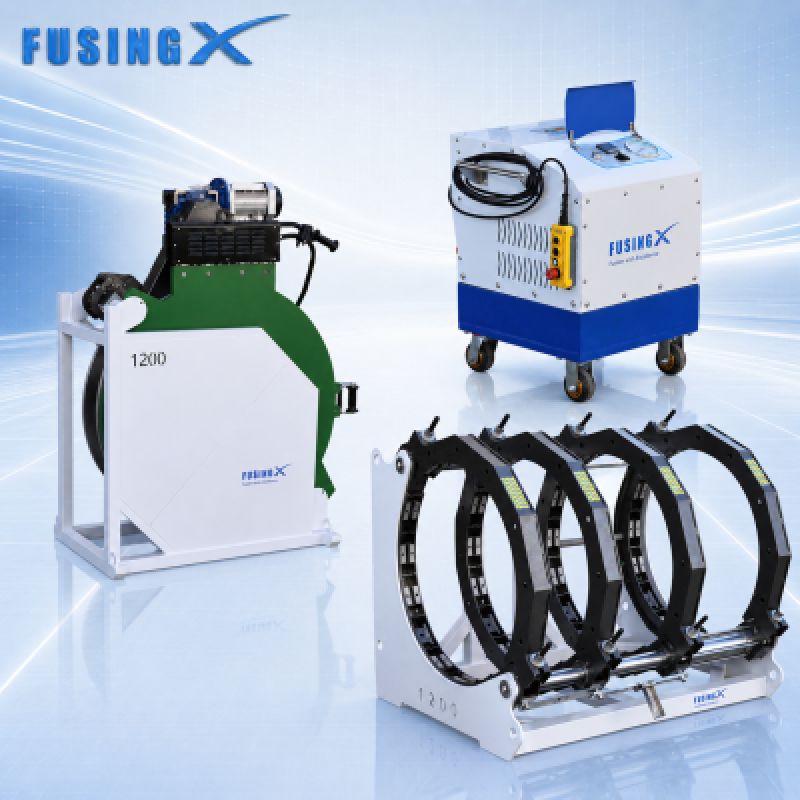

FusingX FX1200 Hydraulic Butt Fusion Welding Machine 630-1200mm
Detail Information
FX1200 Butt Fusion Machine — Fusion with Excellence
Product Overview
The FX1200 is a semi-automatic butt fusion machine designed for HDPE pipe welding from 630mm to 1200mm. Built with a reinforced steel carriage, DynaFX hydraulic power unit, precision heating plate, and heavy-duty facer, it delivers stable clamping, reliable facing, and consistent heating in large-diameter pipe fusion projects.
Key Features
- Robust Frame: Reinforced steel welded carriage with thickened side plates
- DynaFX HPU: Integrated hydraulic and electrical control with enclosed design
- Precision Heating Plate: Cast aluminum with PTFE coating, ±7C temperature control
- Heavy-Duty Facer: Reinforced chain drive, copper motor, HSS double-edge blades
- Die-Cast Clamp Inserts: Quarter-circle aluminum inserts with widened contact surface
- Adjustable Anti-Slip Pads: For pipes slightly smaller than standard size
Technical Specifications
| Parameter | Value |
| Model | FX1200 |
| Welding Range | 630-1200mm |
| Suitable Materials | HDPE, PE, PP, PB, PVDF |
| Rated Voltage | 380V/50Hz, 3PH |
| Rated Power | 30.5KW |
| Max Temperature | 270C |
| Temperature Deviation | plusmn;7C |
| Control | Semi-Automatic |
| Warranty | 18 Months |
| Certificate | ISO 9001, CE |
