Home / All / Manual Roll Grooving / Gruv-Max Heavy-Duty Pipe Grooving Machine for 8"–60" Large-Diameter Pipes

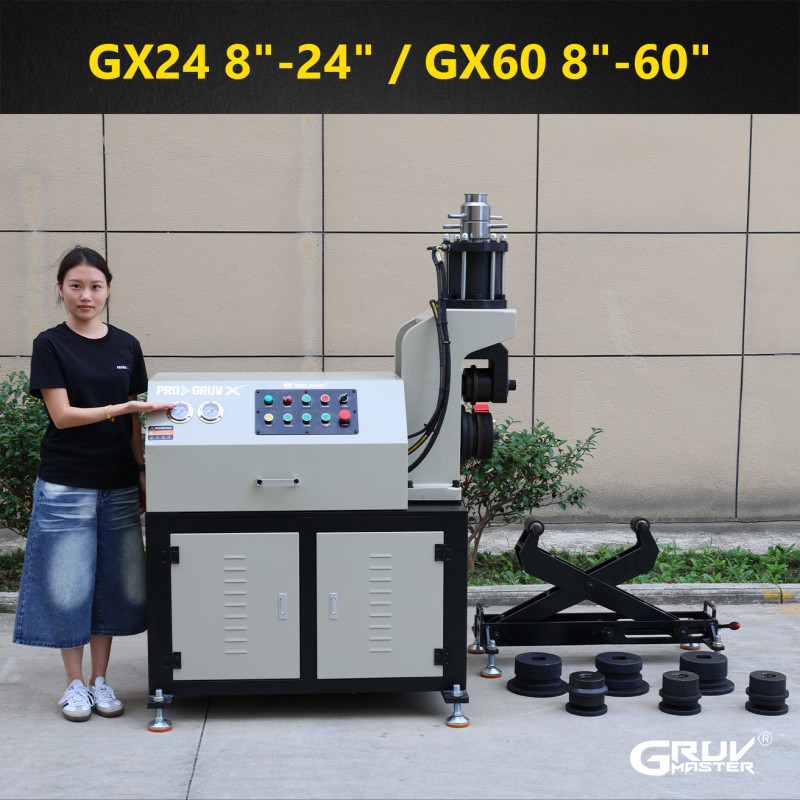

Gruv-Max Heavy-Duty Pipe Grooving Machine for 8"–60" Large-Diameter Pipes

① Gruv-Max heavy-duty roll groover for 8"–60" large-diameter steel pipes.
② Handles thick-wall pipes up to 20 mm with powerful dual-motor drive.
③ Available in GX24 and GX60 models, with OGS or AGS roll sets for different grooving requirements.

Categories: Manual Roll Grooving

Brand: Gruvmaster & Welping

Model: GX24 / GX60

Grooving Capacity: 8"–24" / 8"–60"

Max. Wall Thickness: 20 mm

Output Speed: 20 RPM

Motor Power: 5500W + 2200W

Groove Type: OGS / AGS

FOB port: Shanghai/Ningbo

Terms of Payment: L/C, D/A, D/P, Western Union

Contact Now

Detail Information

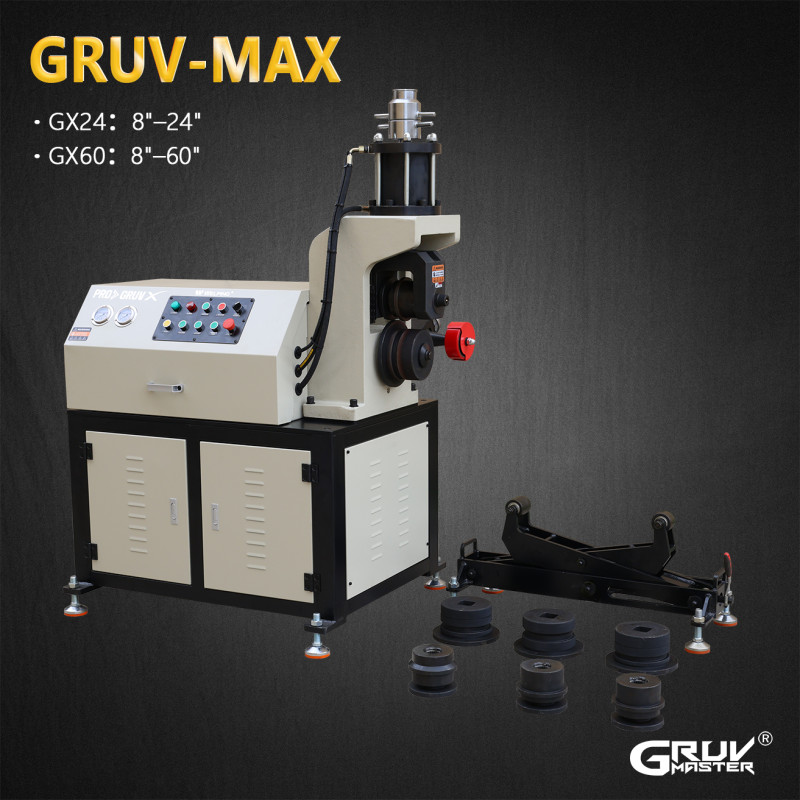

Gruv-Max Heavy-Duty Roll Groover

Built for 8"–60" Pipes and Wall Thicknesses up to 20 mm

Key Features

Features of Manual Roll Groover Machine

· Designed for heavy-duty grooving of large-diameter steel pipes, with a maximum grooving capacity of up to 60".

· Handles thick-wall steel pipes up to 20 mm, suitable for demanding fabrication and construction applications.

· Equipped with high-power dual motors and a high-strength gearbox for stable, continuous operation.

· Heavy-duty groove rollers and drive rollers with interlocking structure help improve groove consistency and pipe sealing surface control.

· Available in GX24 8"–24" and GX60 8"–60" models, with OGS or AGS roll sets available for different grooving requirements.

RG-4M Manual Roll Groover Operation

Gruv-Max Specifications

Model:	GX24	GX60
Grooving Capacity	8"~24"(DN200~DN600,Φ219~Φ630)	8"~60"(DN200~DN1500,Φ219~Φ1524)
Max. Wall Thickness	20mm	20mm
Output Speed	20RPM	20RPM
Power	380V/ 5500W+2200W 3Ph	380V/ 5500W+2200W 3Ph
Gross Weight	1300kgs	1450kgs
Packing Size	195110120cm	240110173cm

Standard Configuration & Optional Accessories

Drive Unit

Catalog No.		Description			Net weight		Size(cm)
999113		1 ¼"-6" roll grooving assembly			12 KG		492240

Standard

Catalog No.	Description	Net weight
911010	Drive roller 1 ¼"~6" (Φ42~Φ168）	0.70 KG
912016	Groove roller 1"~6" (Φ33~Φ168)	0.30 KG
998036	Rachet with socket	1.65 KG

Optional

Catalog No.		Description			Net weight
998034		HDPE tool case			2.70 KG

Roll Grooving Machine Configuration

World's First Patented Compact Roll Groover

The Gruv-One is the world's first patented compact roll groover, achieving a minimum working radius of only 90 mm for pipe grooving in spaces inaccessible to conventional machines.

Manual Operation Without Power Supply

The manual drive design eliminates the need for electricity, allowing flexible operation at different job sites, especially in maintenance and installation applications.

Compact & Portable Design

The lightweight and compact structure with a dedicated toolbox makes transportation and storage easier, providing a convenient solution for on-site grooving.
