AG-8Z-Based Arc Groove Forming Solution: Showcasing Our Custom Roll Grooving Capability
In pipe processing, standard grooves do not cover every application. Different customers may work with different pipe materials, connection methods, and processing requirements. In some projects, special groove profiles are needed, such as arc grooves, outward grooves, or other non-standard forming structures.
Recently, we customized an AG-8Z automatic roll grooving machine according to a customer’s actual processing requirement. The machine was modified for arc groove forming on metal pipe fittings. This was not simply a matter of replacing one accessory. The customization involved targeted design around groove profile, roller matching, and machine stability.
Redesigning the Forming Solution for a Special Groove Profile
AG-8Z is originally designed as an automatic roll grooving machine for batch processing. Its stable machine structure and hydraulic feeding system make it suitable for many standard grooving applications in workshops and job sites.

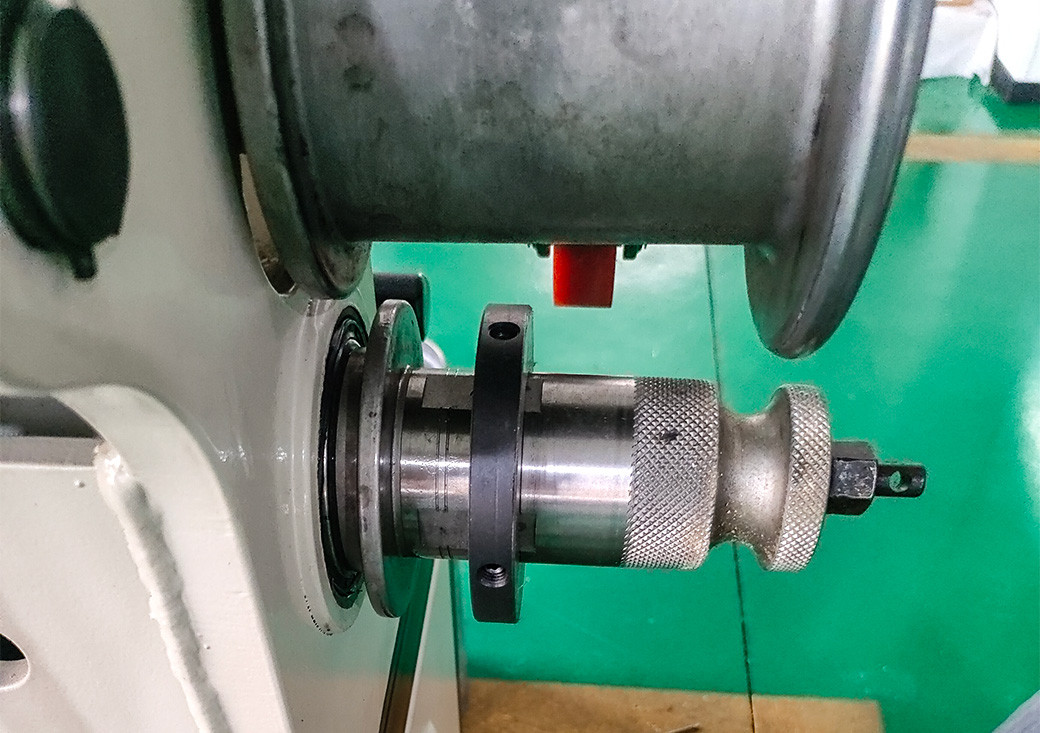

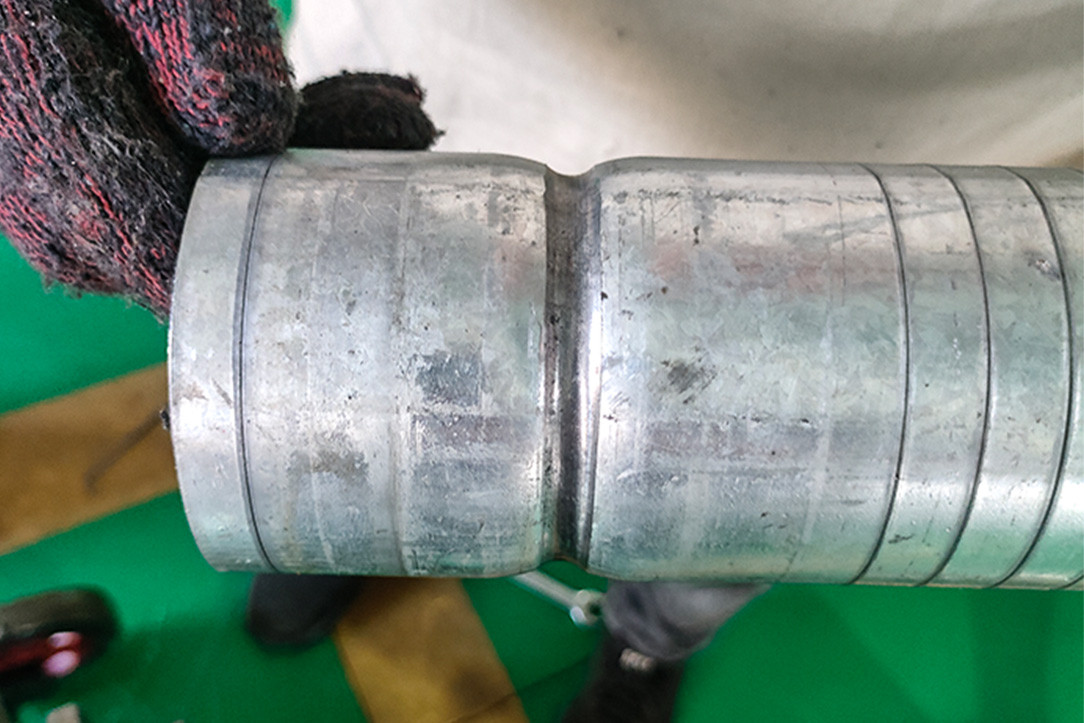

However, in this project, the customer did not require a standard groove. The required profile was a special arc-shaped groove. To achieve this forming result, our design team re-matched the related forming components based on the AG-8Z platform, allowing the machine to complete arc groove forming according to the customer’s requirement.
For this type of customized project, the goal is not only to “press a groove”. The groove profile needs to be close to the required shape, while pipe support, rotation, and feeding should remain stable during the forming process.
A Mature Machine Platform Makes Customization More Reliable
We selected AG-8Z as the base machine because it already has good structural strength and automatic feeding capability. For special groove forming, a stable machine platform is very important.
If the machine body is not rigid enough, or if the pipe rotation is not stable, it is difficult to achieve a good forming result even with the correct forming rollers. Customizing based on a mature machine platform helps reduce development uncertainty and allows the customer to receive a more practical solution in a shorter time.
This is also one of our key approaches in roll grooving machine customization:
use a mature machine platform first, then adjust the structure, rollers, or functions according to the customer’s processing goal.
More Than Standard Products: Customized Roll Grooving Solutions
This arc groove forming project shows our flexible customization capability in roll grooving products. When customers have special processing requirements, we can evaluate the suitable machine solution according to pipe diameter, pipe material, groove shape, forming depth, and actual working conditions.
Some requirements can be achieved by changing the rollers. Others may require adjustments to the machine structure, pipe support method, or hydraulic feeding system. Our advantage is not only offering a single standard model, but also combining different roll grooving machines and processing targets to provide a more complete solution proposal.
One-Stop Sourcing Support for Roll Grooving Products
In addition to automatic roll grooving machines, we also provide various grooving machines and related accessories for different applications, including standard groove processing, large-diameter pipe grooving, special groove forming, pipe fitting grooving, job-site work, and factory batch processing.
For customers, the value of one-stop sourcing is not only purchasing a machine. More importantly, when a special project comes up, they can receive support in machine selection, configuration, and customization.
From standard machines to special groove profiles, from a single machine to supporting equipment, we aim to provide more flexible and professional support for roll grooving applications.
If your project involves non-standard groove profiles, special pipe materials, or unique processing methods, you are welcome to provide samples, drawings, or processing requirements. We can further evaluate a suitable machine solution.
