Stable Clamping, Controlled Cutting: HC-2X Units Under Factory Testing

During testing, each machine was mounted directly onto a steel pipe and used to cut an opening under real working conditions. The HC-2X is intended for branch connections in fire protection, HVAC and industrial piping systems, where clean and accurately positioned holes are needed before installing mechanical tees, crosses or other branch fittings.

Larger hole saws create greater cutting resistance. With a handheld drill, the operator must control the tool, feed pressure and cutting direction at the same time. Any movement during cutting can cause vibration, uneven feeding or an opening that is slightly off position.

A dedicated pipe hole cutting machine provides a more stable setup. Once secured to the pipe, the machine keeps the cutter aligned while the operator controls the feed mechanically. This makes the cutting process easier to manage, especially when the same type of opening must be produced repeatedly.

The chain wraps around the pipe and pulls the base firmly into position, eliminating the need for a separate workbench or custom holding fixture. This is particularly useful when working on pipes that have already been installed or are difficult to move.

As shown in the factory test, the machine remains compact and stable once clamped in place, allowing the hole saw to enter the pipe wall from a controlled position.

As the cutter diameter increases, the machine needs sufficient torque to maintain steady rotation through the pipe wall. A high-speed tool with limited torque may slow down, vibrate or become difficult to feed smoothly.

The HC-2X uses a geared drive designed to deliver strong output at a lower cutting speed. This gives the operator better control over the feed and allows the cutter to work through the material steadily rather than being forced into the pipe.

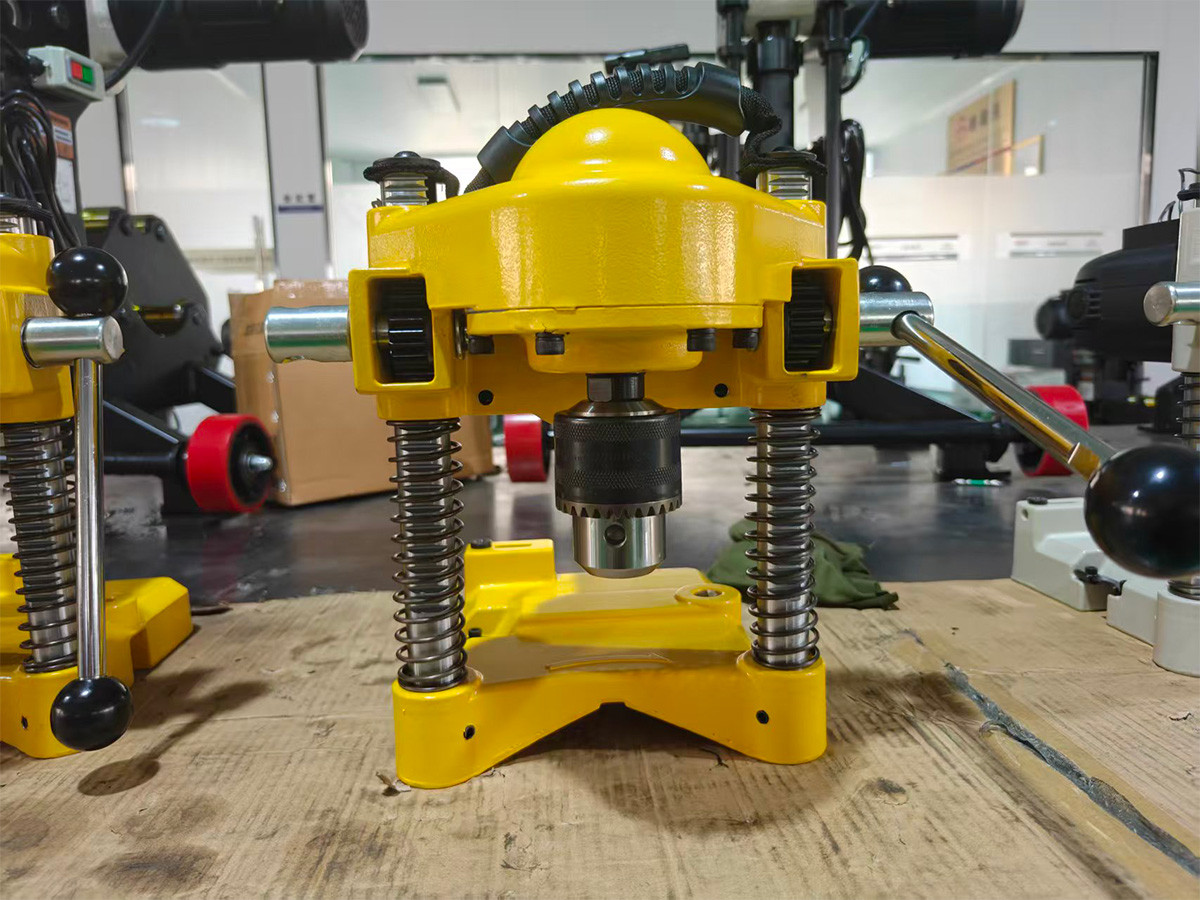

This arrangement helps reduce side movement as the hole saw enters the steel pipe. Return springs assist the cutting head as it moves back after the cut, making retraction smoother and easier to control.

The mechanical feed also gives the operator a clearer sense of cutting resistance, making it easier to adjust pressure as the hole saw progresses through the pipe wall.

Nearby walls, pipe supports, equipment and other pipe runs can all limit where the operator is able to stand. The HC-2X can be operated from either side, allowing the feed handle to be positioned according to the available space.

It is a simple feature, but one that can make a noticeable difference during work in crowded mechanical rooms and confined installation areas.

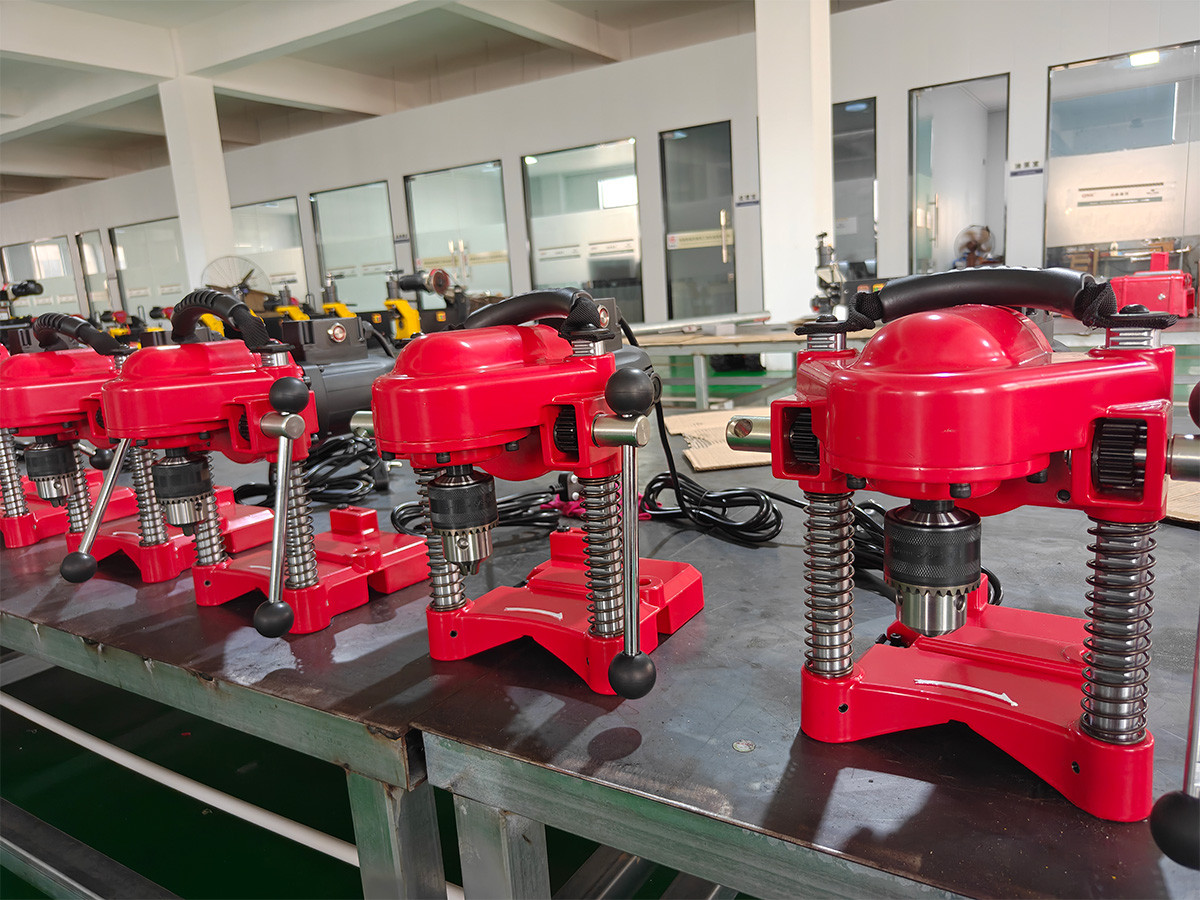

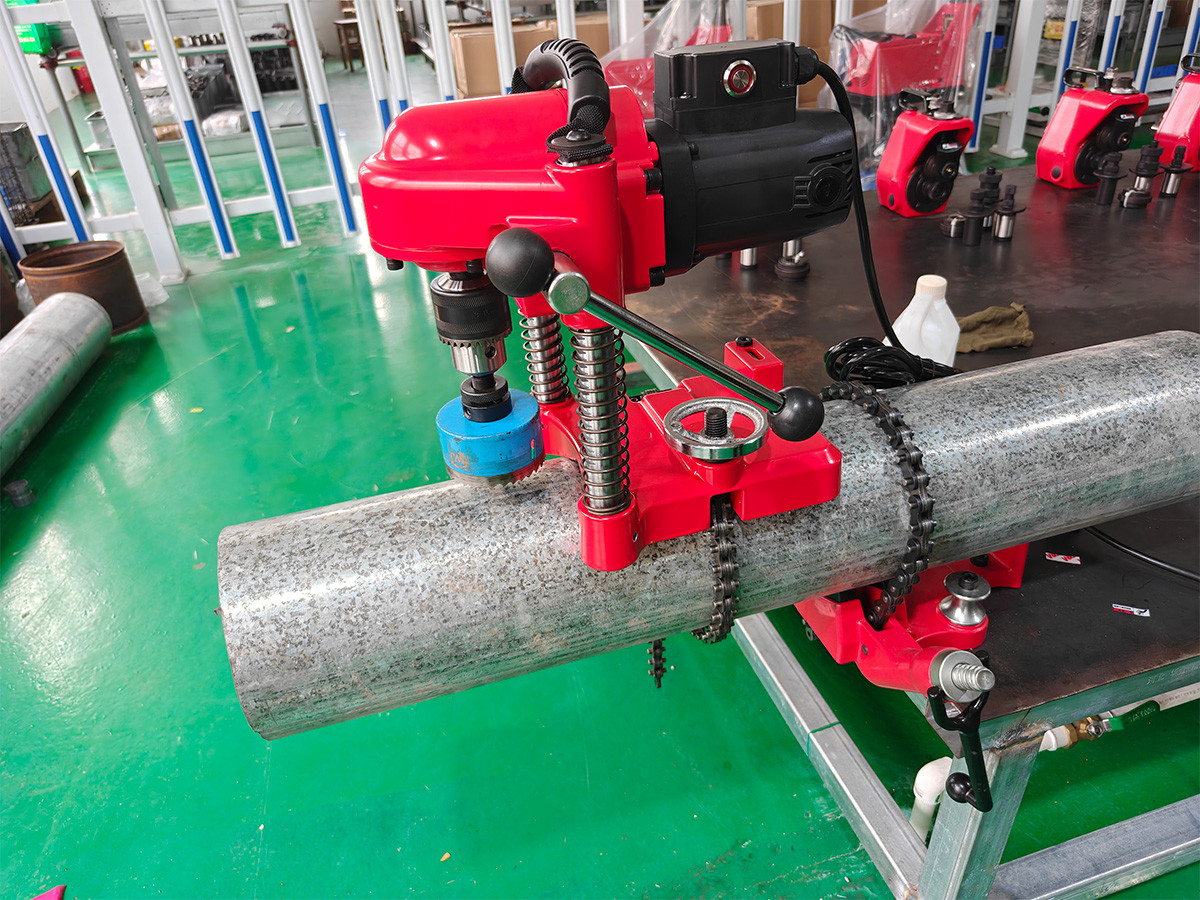

One image captures the machine mounted on a steel pipe during an actual cutting test. The other shows multiple units after assembly, ready for inspection and further testing.

Practical pipe testing allows us to check more than basic motor operation. It also helps confirm clamping stability, feed movement and cutting performance under conditions that are much closer to real jobsite use.

It is not built around complicated automation. Its value comes from doing the essential things well: holding firmly to the pipe, delivering steady cutting power and giving the operator better control over the cutting process.

For contractors and fabrication teams that regularly prepare openings for mechanical tees and other branch fittings, a dedicated pipe hole cutting machine can turn a difficult handheld task into a much more controlled operation.
