Manual Hydraulic Roll Grooving Machine 2 Inch to 12 Inch (RG-H2X)

Manual Hydraulic Roll Grooving Machine 2 Inch to 12 Inch (RG-H2X)

Manual Hydraulic Roll Grooving Machine 2 Inch to 12 Inch (RG-H2X)
Manual Hydraulic Roll Grooving Machine 2 Inch to 12 Inch (RG-H2X)Manual Hydraulic Roll Grooving Machine 2 Inch to 12 Inch (RG-H2X)
RG-H2X manual roll grooving machine for 1 -12 steel pipe. Capable to adjust the machine height as needed on construction sites
Categories
Roll Grooving Machine
Brand
Gruvmaster & Welping
Model
RG-H2X
Fabrication Capacity
2"-12"(DN50-DN300) Steel Pipe
Max Wall Thickness
10mm
Packing Size
45*20*65cm
Gross Weight
67KG
FOB port
Shanghai/Ningbo
Terms of Payment
L/C, D/A, D/P, Western Union
Download
Update Time
Jun 19,2024
Detail Information
Pipe Roll Grooving Machine Video
Features of Manual Hydraulic Roll Groover Machine
● Model RG-H2X Manual Hydraulic Roll Grooving Assembly is designed to groove steel pipes by mounted power drive or horizontal threading machines
● It is heavy duty for grooving 2" to 12" steel pipe
● Compact design and rugged structure enables unit for mass fabrication duty on jobs
● The unique combination of the hydraulic feeding pump and the groove depth lock knob guarantees premium grooves and optimal efficiency.
Pipe Roll Grooving Machine Parameter
8inch roll groover
Model:
RG-H2X
Suitable materials:
Carbon Steel,SS Pipe
Fabrication Capacity:
2"-12"      SCH10/40
Max wall thickness:
10mm
Packing gross weight:
67kgs
Packing size:
45*20*65cm
Standard Parts of RG-H1X Roll Groover
Item Number
Description
Net weight
911022
Drive roller 2"~3" (Φ60~Φ89)
1.30kg
911021
Drive roller 3 1/2"~6" (Φ101~Φ168)
1.30kg
911020
Drive roller 8"-12" (Φ219-Φ325)
1.40kg
912010
Groove roller 2"~3" (Φ60~Φ89)
0.45kg
912009
Groove roller 3 1/2"~6" (Φ101~Φ168)
0.45kg
912008
Groove roller 8"-12" (Φ219-Φ325)
0.45kg
911018
Drive bar adapter
2.30kg
913006
Support Bench
2.20kg
Resources of RG-H2X Roll Grooving Machine
RG-H1X Breakdown Part List
RG-H2X Roll Grooving Tool Operating and maintenance instructions Manual
Roll Grooving Machine Configuration
8inch roll groover
Hydraulic pump
High-quality seal parts ensure long-term field usage without leaking
Fine-machined cylinder with accurate sizes
The proper-hardened piston rod of long-life
Built-in groove depth adjusting rod
8inch roll groover
Adapter plate
Adapter plate to fit on threading machine
Work with 2",3",4" pipe threading machine
8inch roll groover

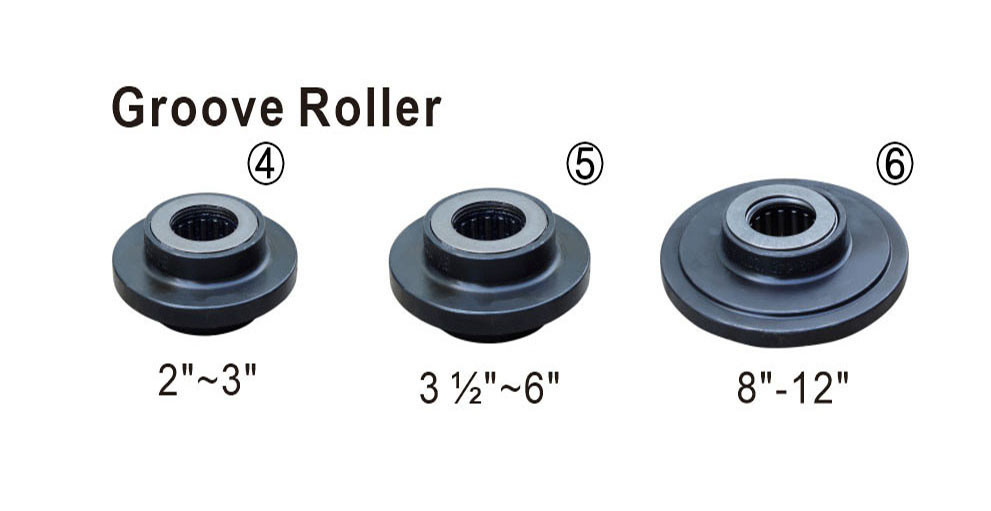

Groove Roller
one set 2"~3" (Φ60~Φ89)
one set 3 1/2"~6" (Φ101~Φ168)
one set 8"-12" (Φ219-Φ325)
roll groover machine

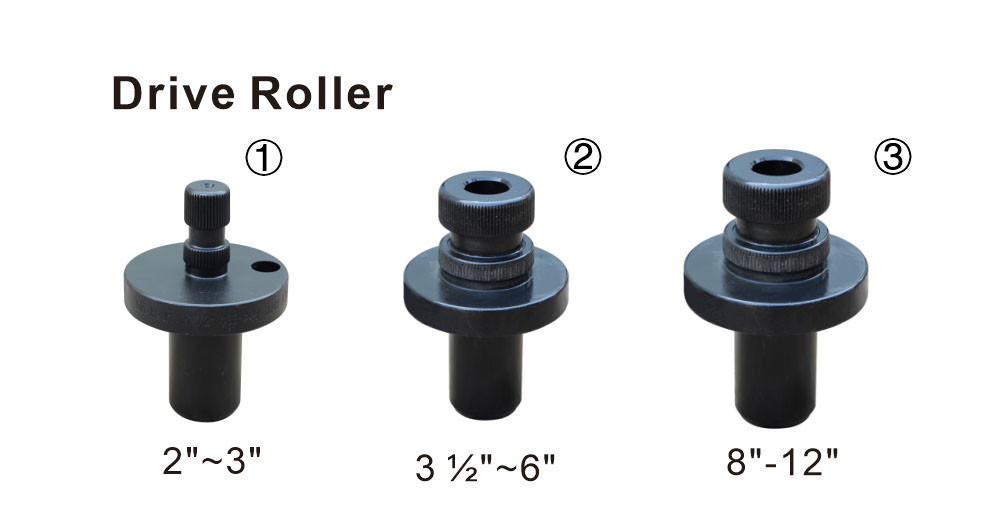

Drive roller
one set 2"~3" (Φ60~Φ89)
one set 3 1/2"~6" (Φ101~Φ168)
one set 8"-12" (Φ219-Φ325)
Pipe Roll Grooving Machine Comparasion
roll groover machine
