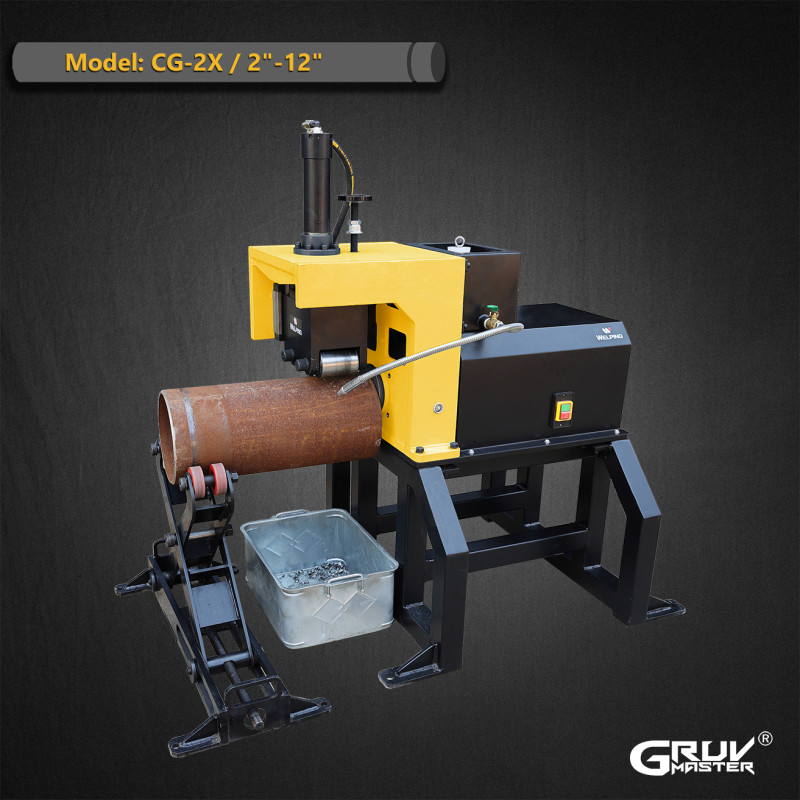

Hydraulic Roll Groove Cutting Machine for 2 Inch to 12 Inch Steel Pipes (CG-2X)
The Gruvmaster CG-2X cuts grooves into 2″–12″ heavy-walled steel pipes using HSS cutting tools. Designed for applications where conventional roll grooving is unsuitable, it forms grooves without flaring the pipe ends. Its robust construction and hydraulic system support demanding work on site and in the workshop.
Detail Information
CG-2X Electric Hydraulic Groove Cutting Machine
For 2″–12″ Heavy-Walled Steel Pipes | 6–35 mm Wall Thickness
CG-2X GROOVE CUTTING MACHINE FEATURES
● Designed for cutting grooves into 2″–12″ heavy-walled steel pipes with wall thicknesses of 6–35 mm. Suitable for applications where conventional roll grooving is not applicable.
● Forms grooves using cutting tools without flaring the pipe ends. Suitable for mining pipelines, power plants, petrochemical facilities, and heavy-duty mechanical systems.
● Robust construction and a reliable hydraulic system support demanding work on site and in the workshop.
● Equipped with size-specific HSS cutting tools for efficient groove cutting and extended tool life. A heavy-duty ratchet pipe stand comes standard to support large and heavy pipes.
Steel Pipe Roll Grooving Cutting Machine Parameters
Model: |
CG-2X
|
Pipe Size Range |
2″–12″ (Φ60–Φ325 mm)
|
Nominal Diameter: |
DN50–DN300
|
Max wall thickness: | 6-35mm |
Power supply: |
220V / 380V
|
Frequency: |
50HZ / 60HZ
|
Motor power: | 1100 W, Single-Phase 750 W, Three-Phase |
Output speed: | 23 RPM |
Gross weight | 340 KG |
Packing Size | 170*95*115 CM |
Standard Parts
Catalog No. | Description | Net weight |
|
911203
|
Drive roller 2"~3" （Φ60~Φ89)
|
5.00 KG
|
911204 | Drive roller 3 1/2"~12" （Φ101~Φ324) | 6.70 KG |
|
998149
|
Cut tool for 2" ~ 3 1/2" （Φ60~Φ101）
|
0.20 KG
|
|
998150
|
Cut tool for 4" ~ 6" （Φ114~Φ168）
|
0.20 KG
|
|
998154
|
Cut tool for 8"（Φ219）
|
0.20 KG
|
998151 | Cut tool for 10"~20"（Φ273~Φ508） | 0.20 KG |
912073 | Locating collar for 2" ~ 6" | 1.20 KG |
912074 | Locating collar for 8" ~ 12" | 1.20 KG |
998078 | Pipe support for 2" ~ 12" | 33.0 KG |
998153 | Foot switch | 1.50 KG |
CG-2X Design Features
Hydraulic System
Quality seals, a precision-machined cylinder, and a hardened piston rod help reduce leakage and wear for dependable operation.
Heavy-Duty Structure
A robust machine structure provides stable support for heavy-walled pipe grooving, both on site and in the workshop.
Size-Specific Drive Rolls
Two interchangeable drive rolls cover 2″–3″ and 3½″–12″ pipes, providing rotary drive for different pipe sizes during groove cutting.
Heavy-Duty Pipe Stand
An adjustable-height pipe stand supports heavy pipes, while support rollers allow smooth pipe rotation during groove cutting.

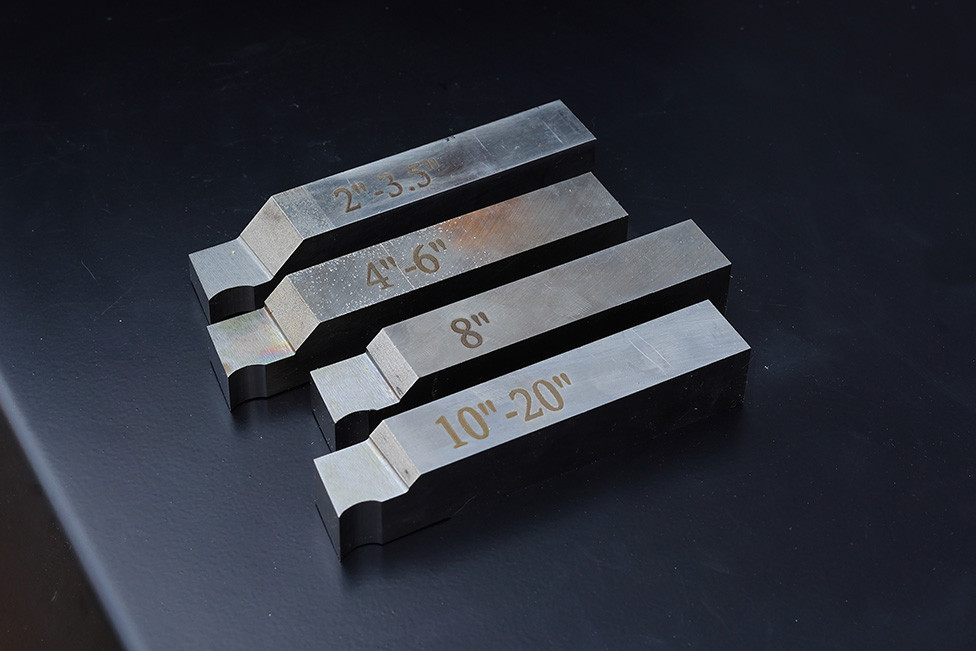

HSS Cutting Tools
Size-specific high-speed steel cutting tools cover the 2″–12″ pipe range, providing efficient cutting and extended tool life.
Groove Cutting Without Flaring
Forms grooves by removing material without flaring the pipe ends. Suitable for heavy-walled pipes where conventional roll grooving is not applicable.
