CG-4X Electric Hydraulic Groove Cutting Machine for 8″–32″ Steel Pipes
The Gruvmaster Electric Cut Grooving Machine is a motor-driven device for grooving 8" to 32" O.D. SCH40+ pipes in all materials. It has hydraulic fixing, manual feeding, and a cut blade for precise grooving. Ideal for heavy-duty job site and workshop use.
- Share
- Categories
- Groove Cutting Machine
- Brand
- Gruvmaster & Welping
- Model
- CG-4X
- Fabrication Capacity
- 8"~32"
- Pipe Wall Thickness
- 6-35mm
- Output Speed
- 19 R.P.M
- Power Supply
- 2200W 3Ph
- Gross Weight
- 450 kgs
- Packing Size
- 120*110*175cm
- Drive
- Electric hydraulic
- Suitable material
- SS pipe,steel pipe
- FOB port
- Shanghai
- Terms of Payment
- L/C, D/A, D/P, Western Union
Detail Information
CG-4X Electric Hydraulic Groove Cutting Machine
For 8″–32″ Heavy-Walled Steel Pipes | 6–35 mm Wall Thickness
CG-4X Groove Cutting Machine Features
CG-4X GROOVE CUTTING MACHINE FEATURES
● Designed for cutting grooves into 8″–32″ heavy-walled steel pipes with wall thicknesses of 6–35 mm. Suitable for applications where conventional roll grooving is not applicable.
● Forms grooves using cutting tools without flaring the pipe ends. Suitable for mining pipelines, power plants, petrochemical facilities, and heavy-duty mechanical systems.
● Robust construction and a reliable hydraulic system support demanding groove-cutting work on site and in the workshop.
● Equipped with size-specific HSS cutting tools for efficient cutting and extended tool life. A heavy-duty hydraulic pipe stand comes standard to support and position large, heavy pipes.
CG-4X Groove Cutting Machine Specifications
Model: |
CG-4X
|
Pipe Size Range: |
8"-32"（Φ219~Φ813）
|
Nominal Diameter: |
DN200–DN800
|
Pipe Wall Thickness: | 6–35 mm |
Power supply: |
380V, 3 Phase
|
Frequency: |
50/60 Hz
|
Motor power: | 2200W/3 Ph |
Output speed: | 19 R.P.M |
Gross weight | 450 kgs |
Packing Size | 120*110*175cm |
Standard Parts
Catalog No. | Description | Net weight |
|
911208
|
Drive roller 8"~32" （Φ219~Φ813)
|
13.20 KG
|
|
998154
|
Cut tool 8"（Φ219）
|
0.20 KG
|
998151 | Cut tool 10"~20"（Φ273~Φ508） | 0.20 KG |
998152 | Cut tool 22"~32"（Φ558~Φ813） | 0.20 KG |
912075 | Locating collar for 8" ~ 12" | 1.20 KG |
912076 | Locating collar for 14" ~ 16" | 1.20 KG |
912077 | Locating collar for 18" ~ 24" | 1.20 KG |
912078 | Locating collar for 26" ~ 32" | 1.20 KG |
Steel Pipe Roll Grooving Cutting Machine Configuration
Hydraulic System
A reliable hydraulic system supports extended operation under demanding working conditions.

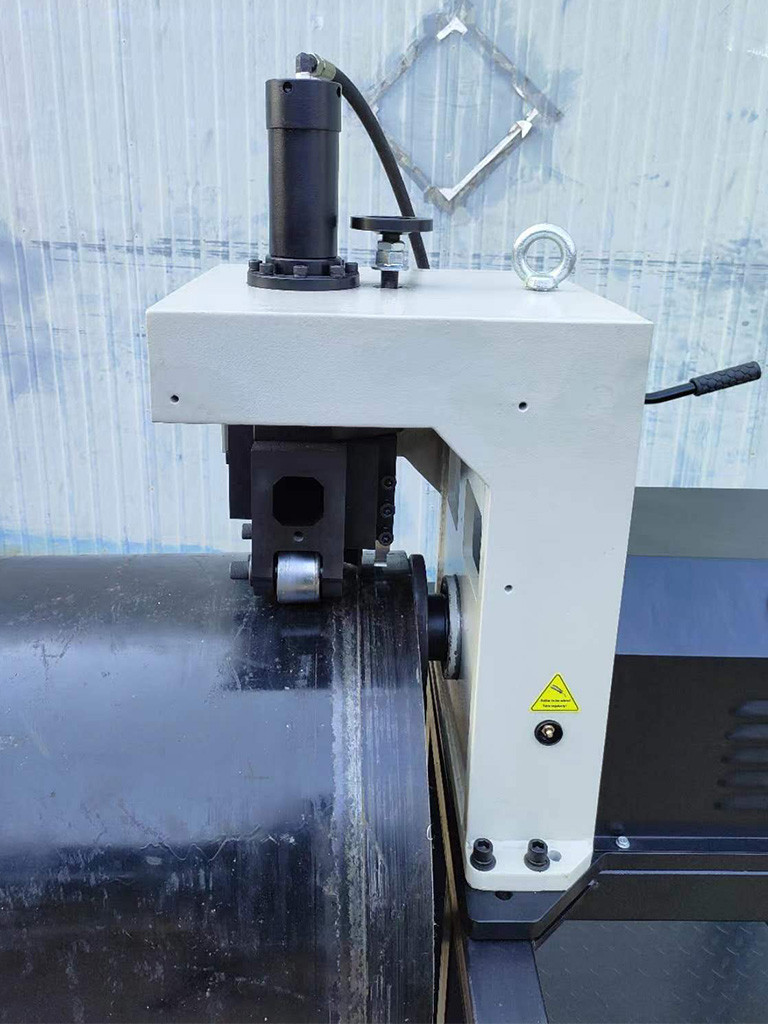

Heavy-Duty Structure
Robust construction provides stable support for large-diameter, heavy-walled pipe grooving on site and in the workshop.

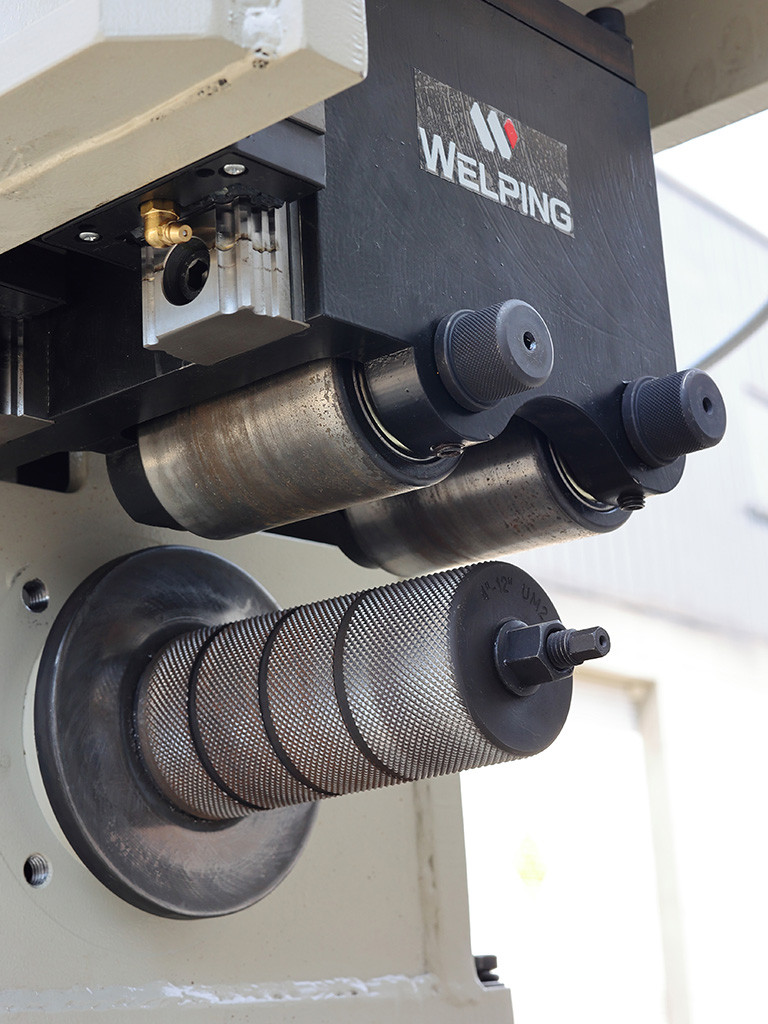

Drive Roll for 8″–32″ Pipes
A dedicated drive roll covers the 8″–32″ pipe range, driving pipe rotation during groove cutting.

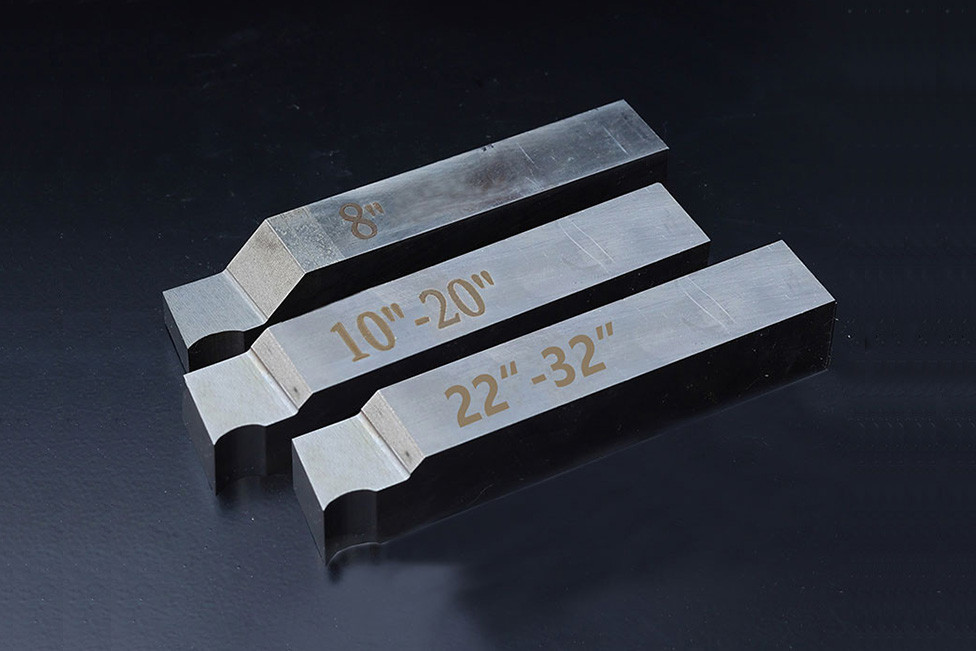

HSS Cutting Tools
Size-specific HSS cutting tools are available for 8″, 10″–20″, and 22″–32″ pipes, providing efficient cutting and long service life.

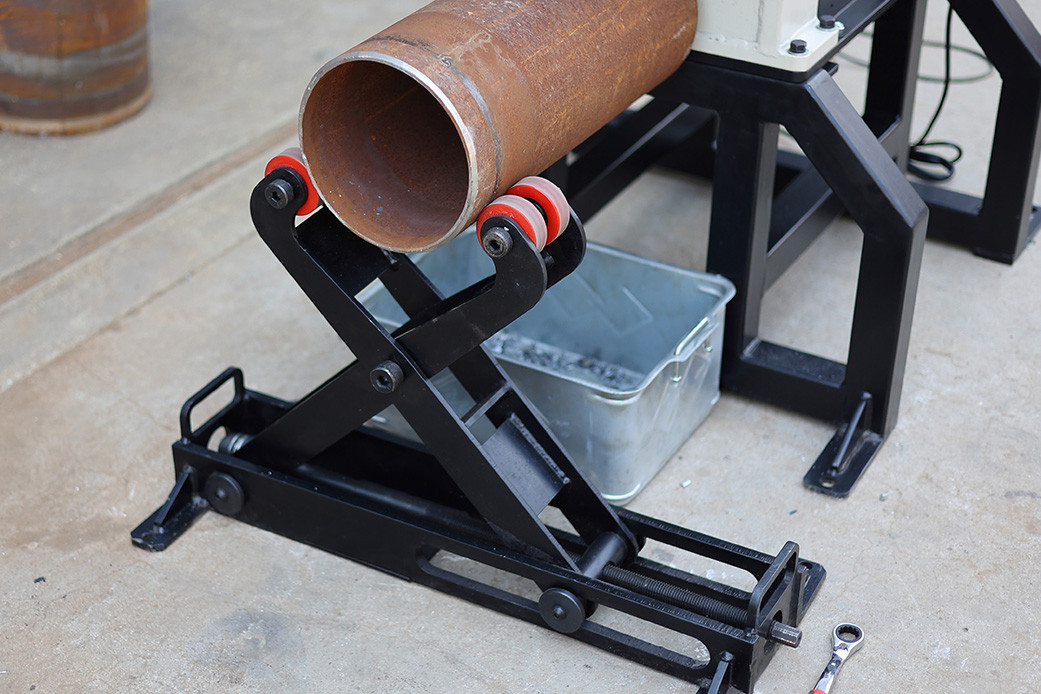

Hydraulic Pipe Stand
The standard heavy-duty hydraulic pipe stand allows convenient height adjustment to support and position large, heavy pipes.

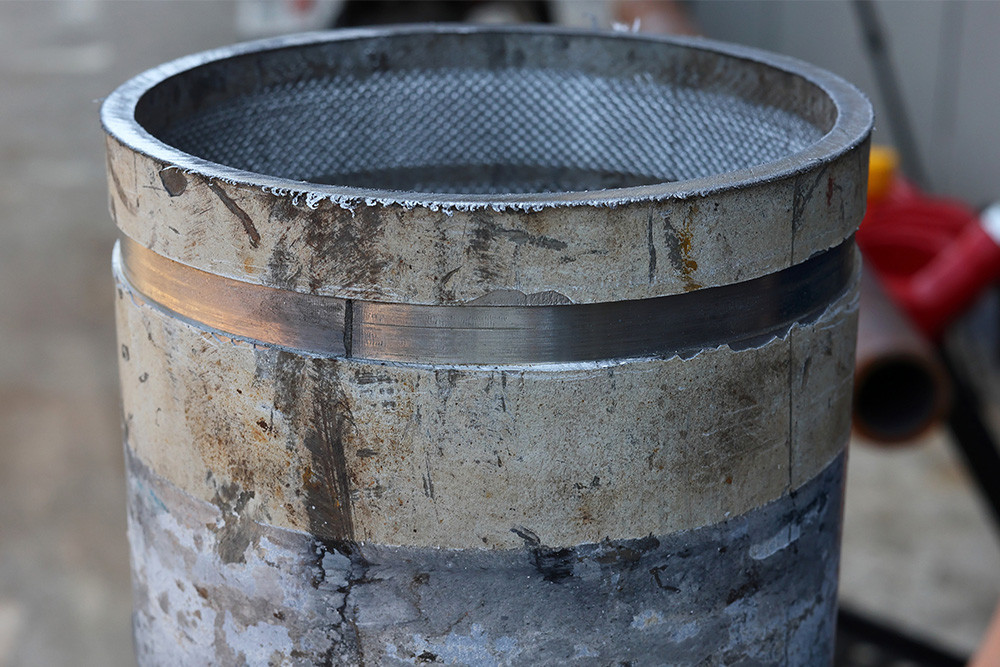

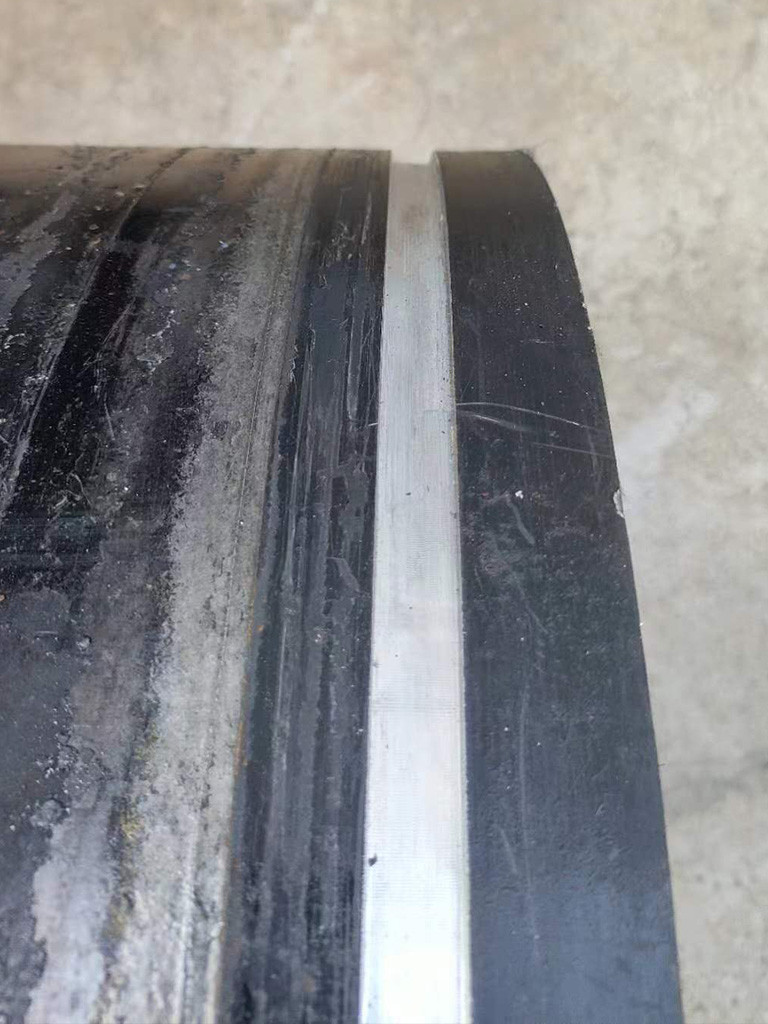

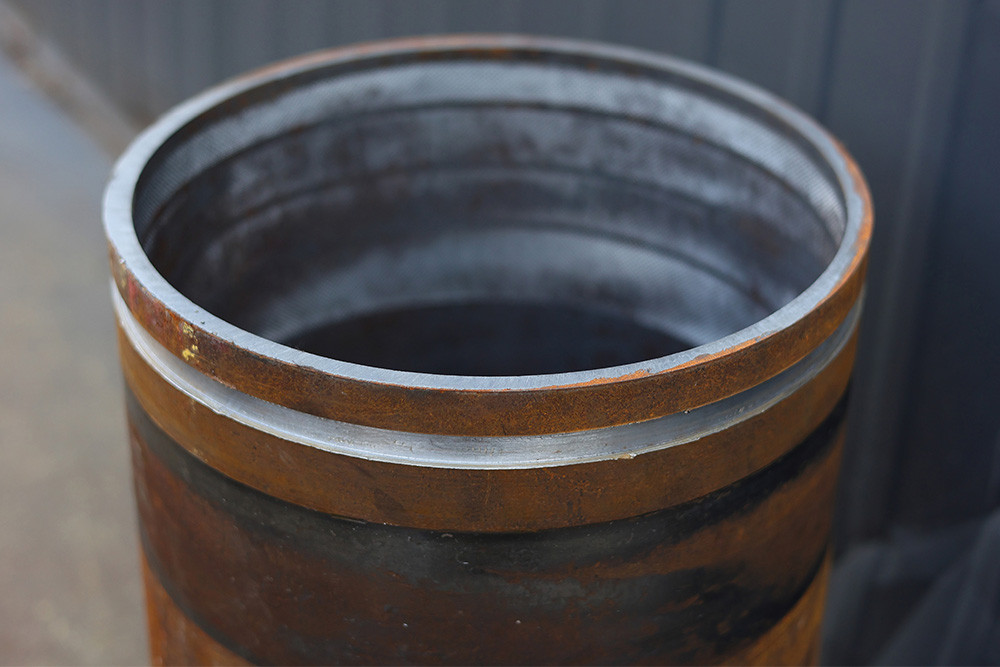

Groove Cutting Without Flaring
Forms grooves by removing material without flaring the pipe ends. Suitable for heavy-walled pipes where conventional roll grooving is not applicable.
