Semi-Automatically Pipe Hydraulic Roll Groover 8"-24" (AG-4X)

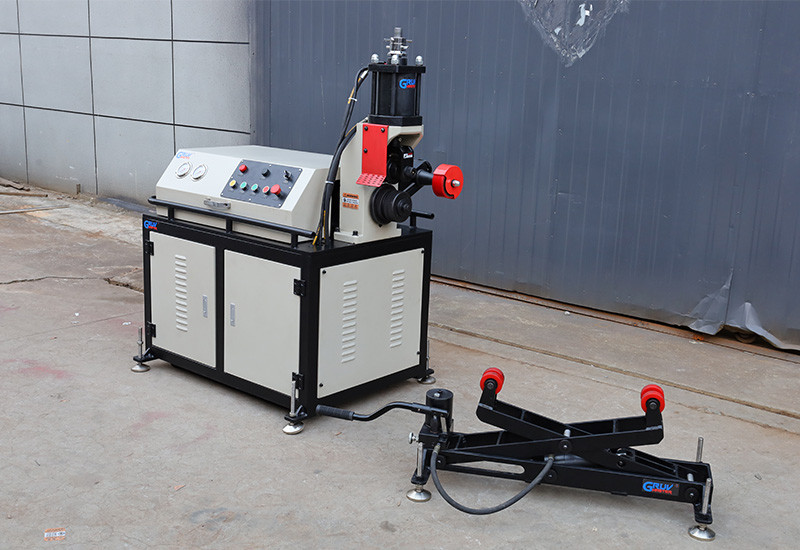

The fully-motorized, semi-automatic, electrohydraulic roll groover designed for 8"-24" steel pipes
Detail Information

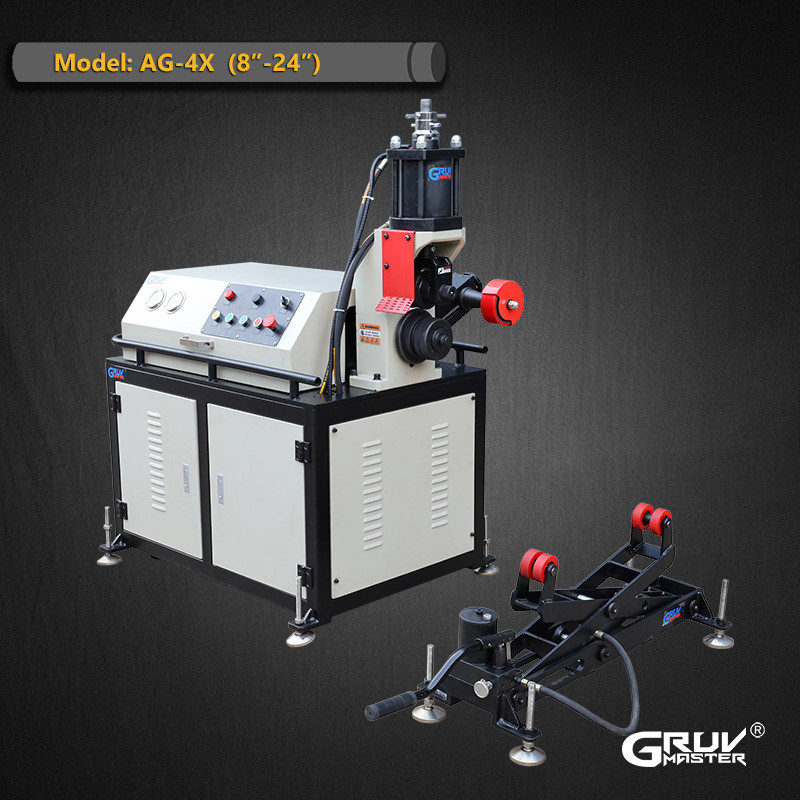

AG-4X Automatic Roll Grooving Machine
Designed for 8″–24″ Pipes with Optional AGS Roll Set
Features of AG-4X Heavy-Duty Roll Grooving Machine
Features of Semi-Automatical Roll Groover Machine 8-24inch
● Built for heavy-duty grooving jobs, model AG-4X is ideal for high-volume grooving of large-diameter steel pipes in workshop and construction sites.

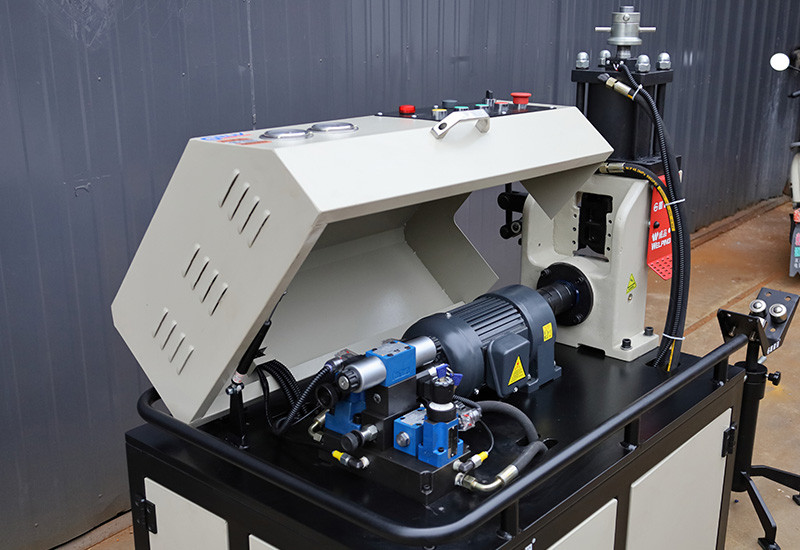

● Equipped with a high-power motor and high-strength gearbox, the machine is built for long-term, continuous operation.
● Heavy-duty groove rollers and drive rollers with interlocking structure ensures precise control of the pipe sealing surface length.

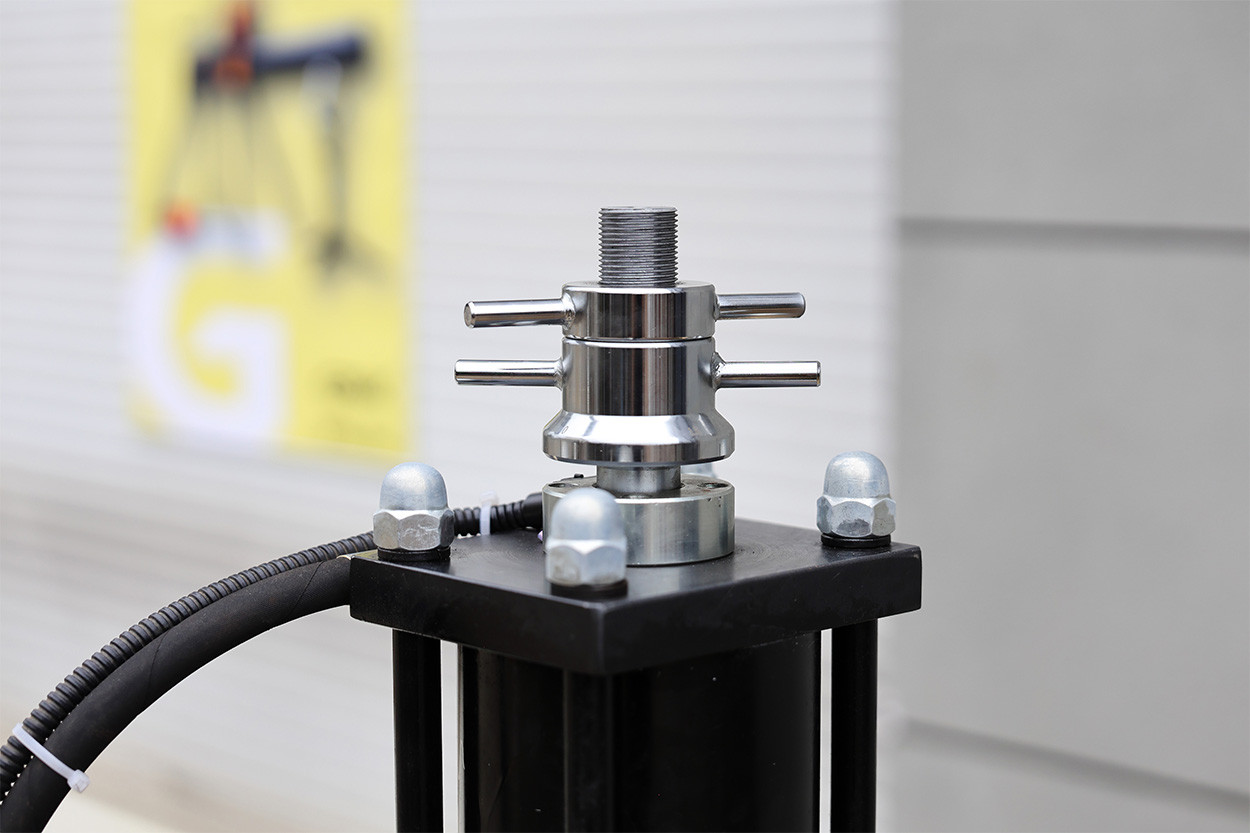

● Unique depth limiting device, the groove roller automatically resets after the groove depth is reached.
Note: the guide wheel can be optionally set to automatically
move back and forth for added convenience and speed
Pipe Roll Grooving Machine Parameter
Model: | AG-4X |
Suitable materials: | Carbon Steel,SS Pipe |
Fabrication Capacity: | 8"-24" Pipe |
Power supply: | 380V |
Frequency: | 50HZ |
Max wall thickness: | 13mm |
Motor power: | 2200W |
Output speed: | 23RPM |
Packing gross weight: | 1240kgs |
Packing size: | 195*110*120cm |

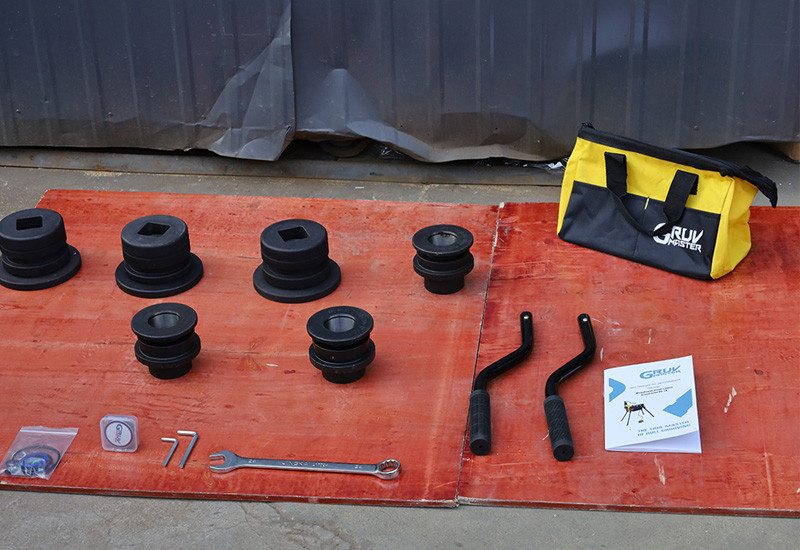

Standard Parts of AG-4X Roll Groover
Item Number | Description | Net weight | ||||
911087 | Drive roller 8"-12" (φ219-φ325) | 3.50 KG | ||||
911088 | Drive roller 14"-16"(φ355-φ426) | 3.50 KG | ||||
911089 | Drive roller 18"-24" (φ457-φ630) | 3.50 KG | ||||
912029 | Groove roller 8"-12" (φ219-φ325) | 1.40 KG | ||||
912030 | Groove roller 14"-16"(φ355-φ426) | 1.40 KG | ||||
912031 | Groove roller 18"-24" (φ457-φ630) | 1.40 KG | ||||
998038 | Pipe stand | 33.0 KG | ||||
Optional Parts of AG-4X Roll Groover
Item Number | Description | Net weight | ||||
911099 | AGS Drive roller 14"-24" (φ355-φ630) | 3.50 KG | ||||
912034 | AGS Groove roller 14"-24"(φ355-φ630) | 2.00 KG | ||||
Roll Grooving Machine Configuration
Groove Formation
Accurately processes grooves on steel pipes to ensure secure connections with coupling systems.
Compatibility
Handles various pipe diameters and wall thicknesses, making it suitable for diverse project requirements.
Support color customization
Balanced structure withstands tough jobs
Precise Groove Depth Control
The built-in depth limiting system automatically controls the groove depth and stops operation when the preset depth is reached, ensuring accurate and repeatable grooving results.

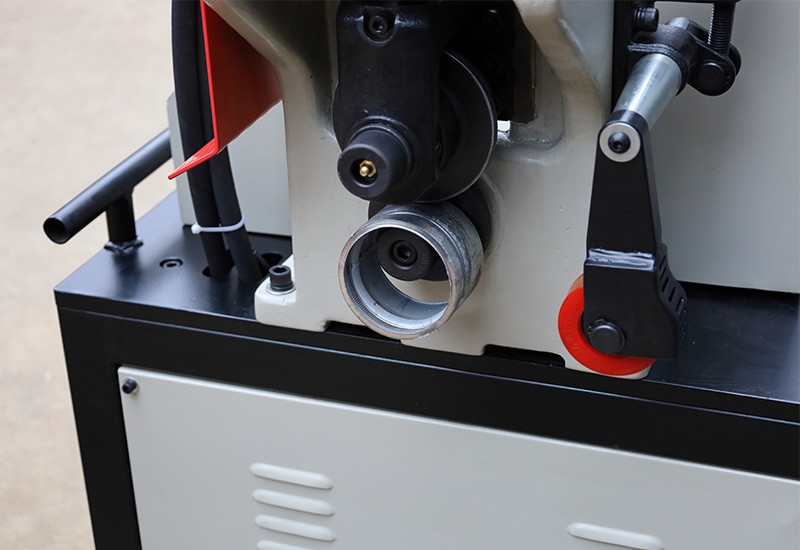

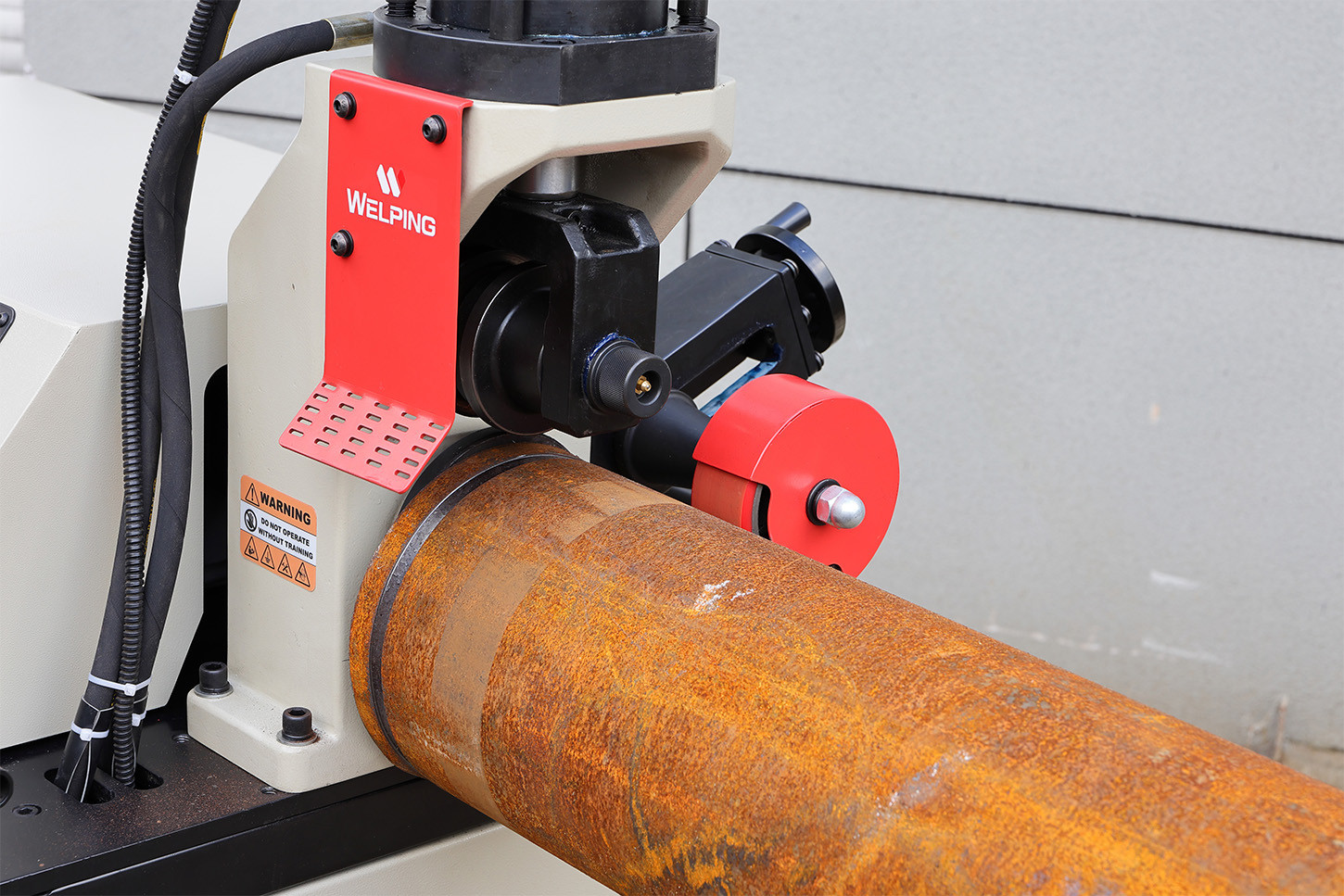

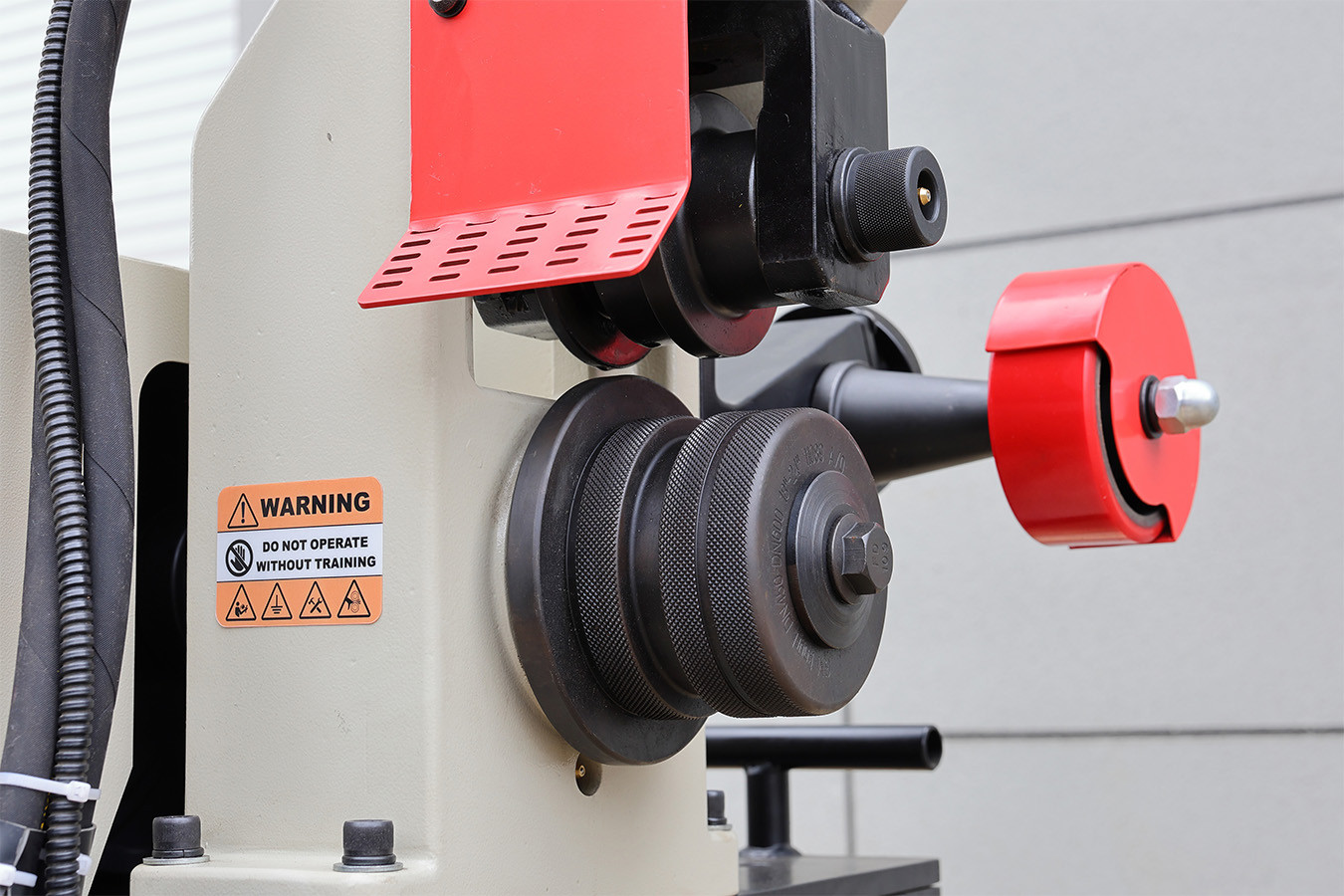

Interlocking Roller System
The specially designed interlocking drive roller and groove roller system ensures stable pipe engagement and smooth groove forming for reliable groove performance.
Semi-Automatic Operation
Combines manual control with automated processes to achieve precision and consistency while offering operational flexibility.
Adjustable Settings
Equipped with adjustable roller sets to accommodate different pipe specifications.

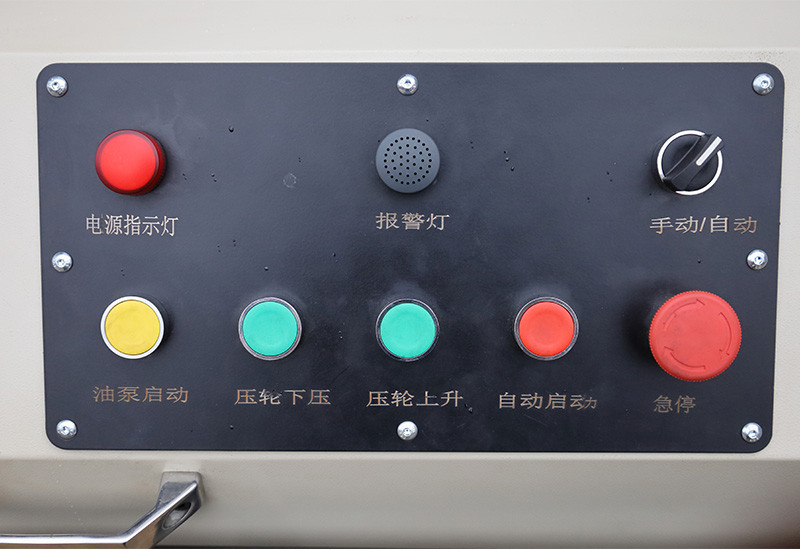

User friendly
Uses physical hard-key buttons for control, offering high reliability and durability.
Compared with a PLC touchscreen interface, it provides more stable operation and easier maintenance.

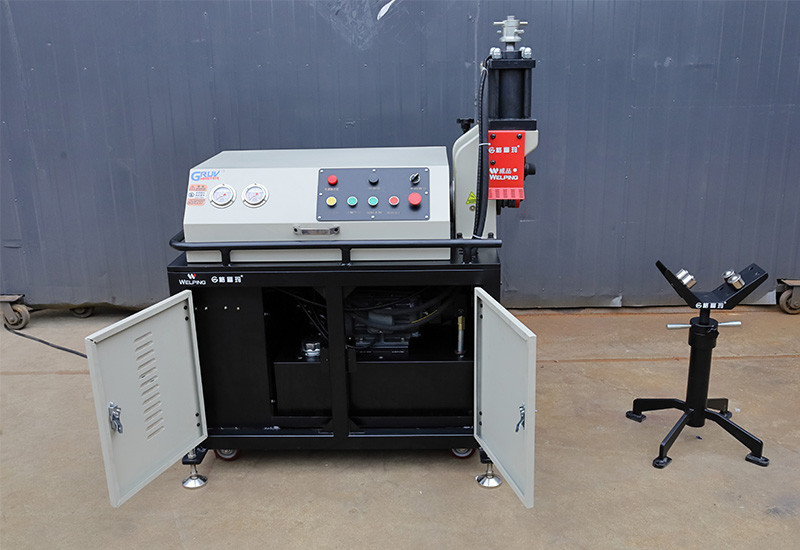

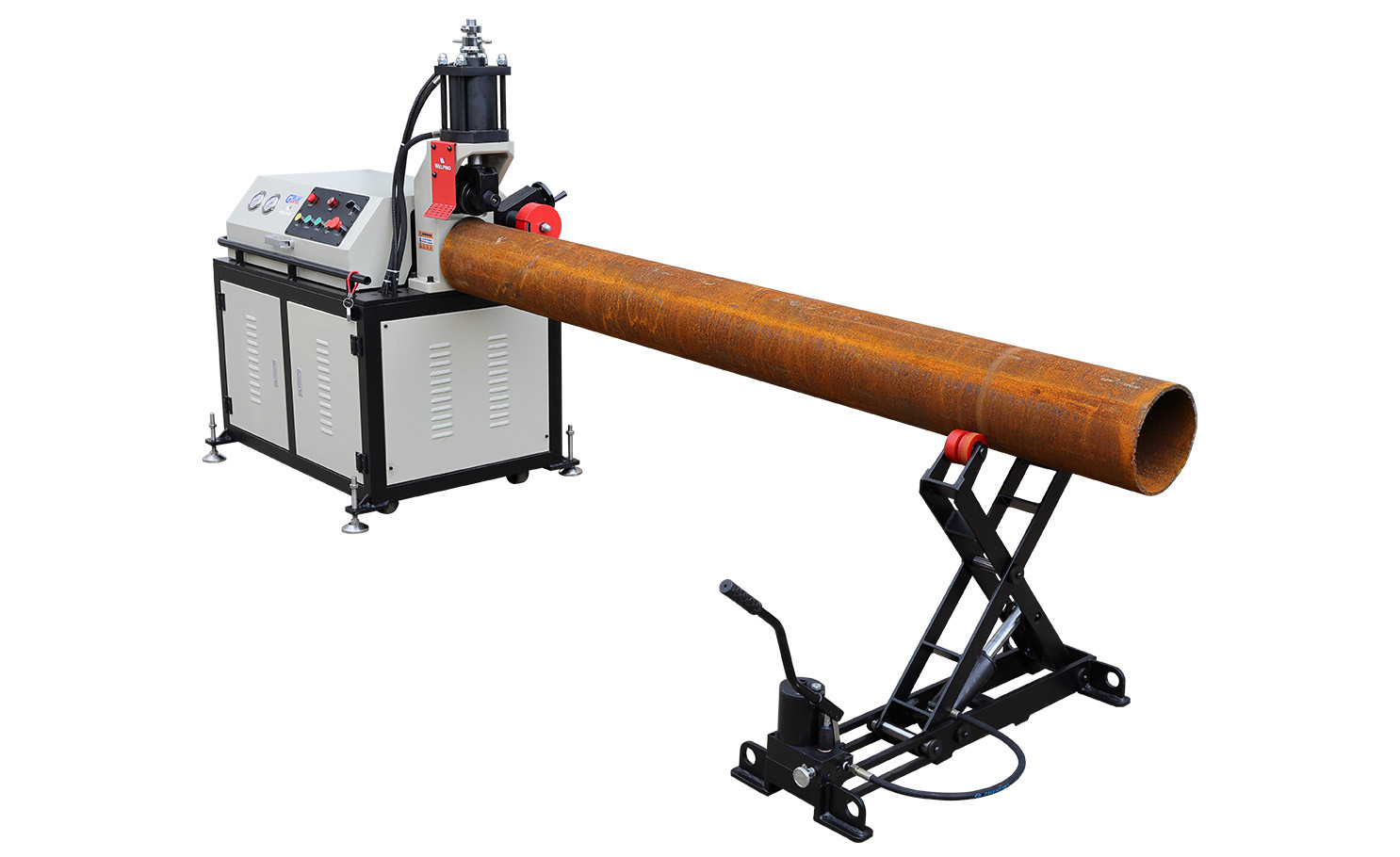

Semi-Automatically
The fully-motorized, semi-automatic, electrohydraulic tool comes complete with safety guards

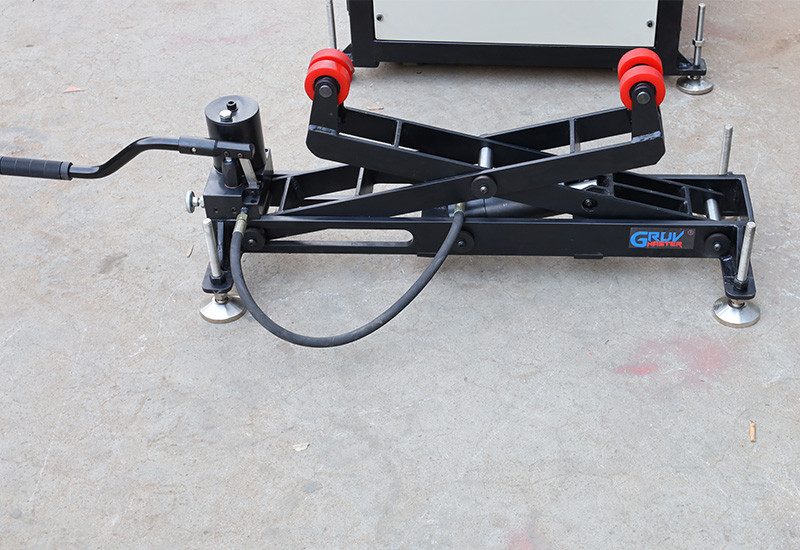

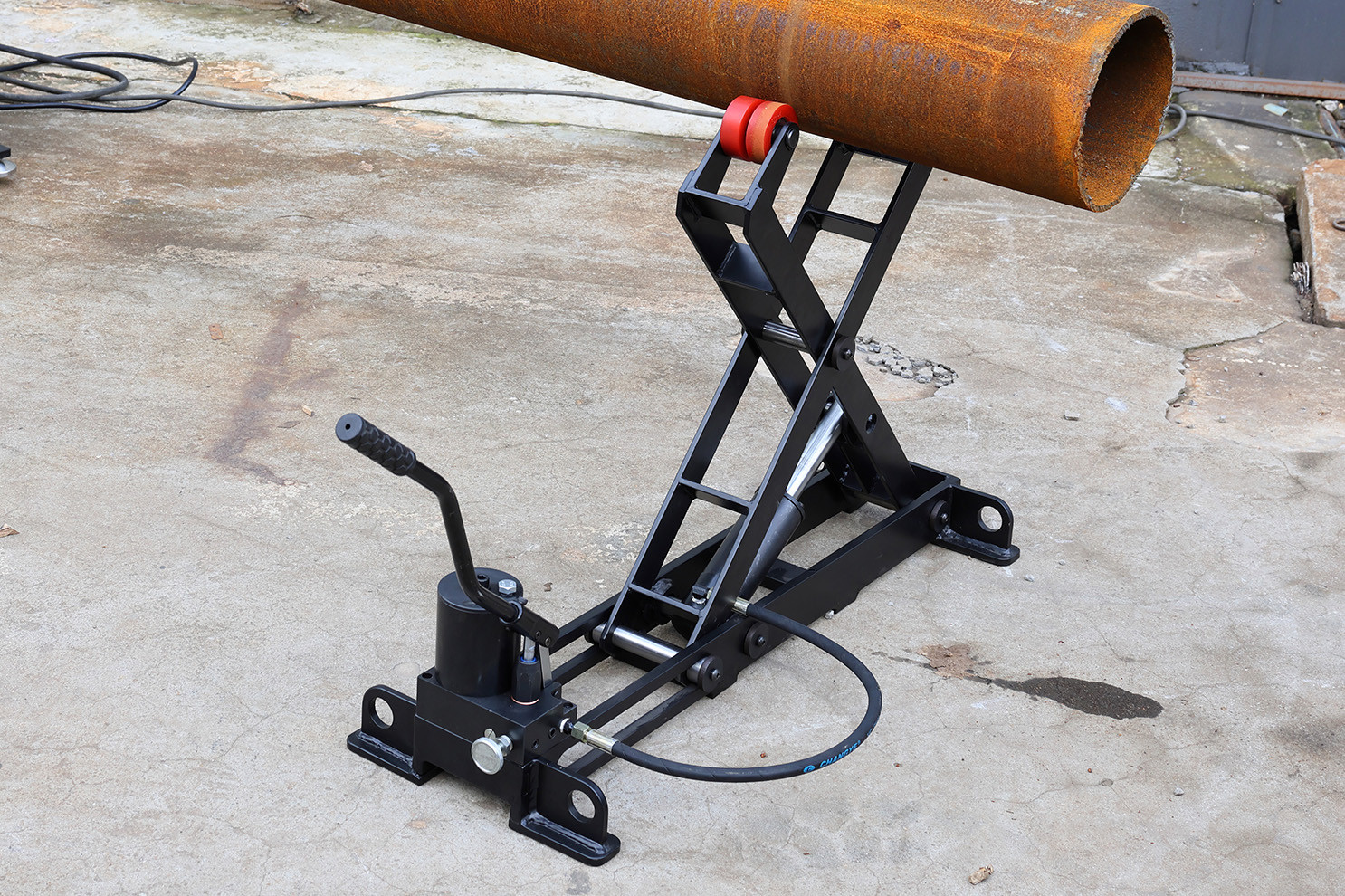

Pipe Stand
Pipe Stand for 8-24inch Pipes

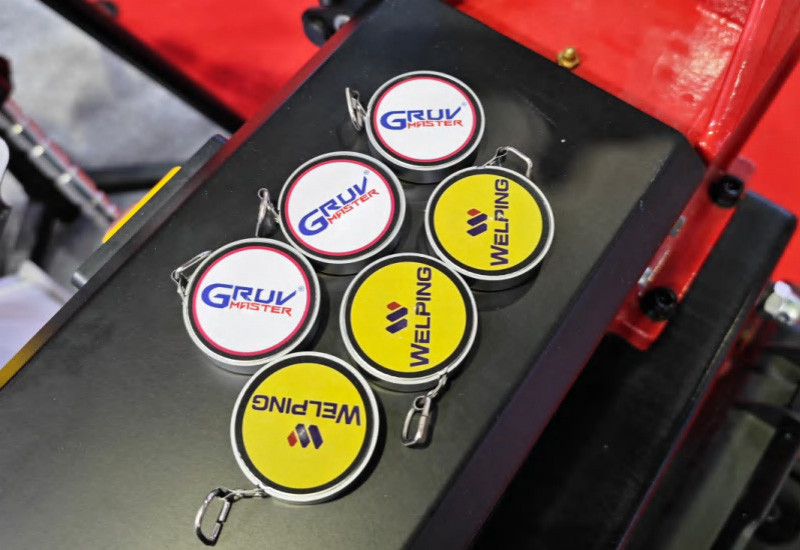

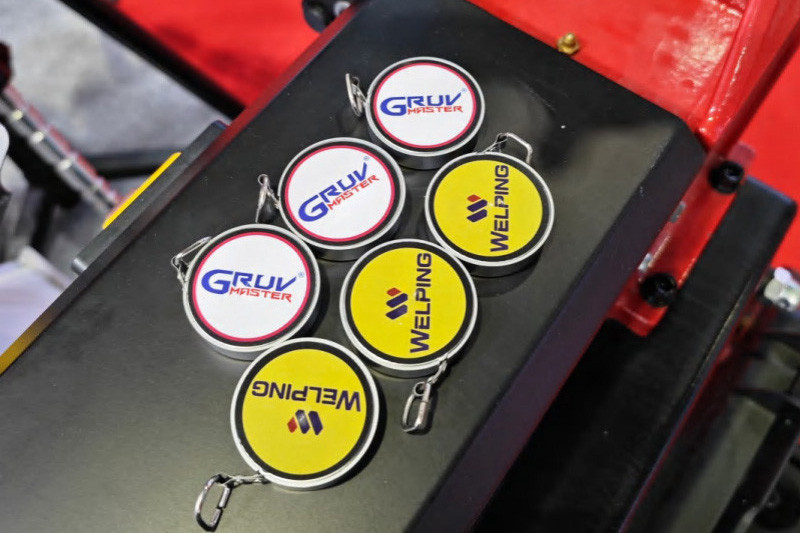

Groove Tape
The ideal tool for quick and reliable groove inspection,supports brand customization

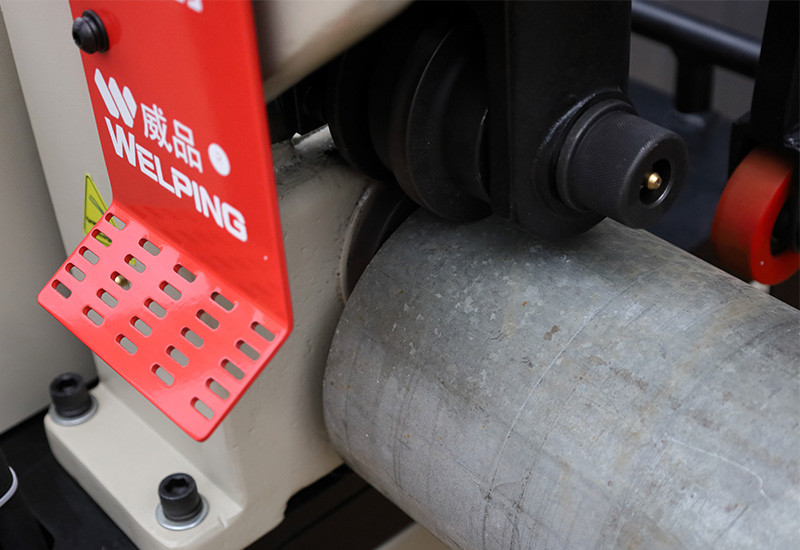

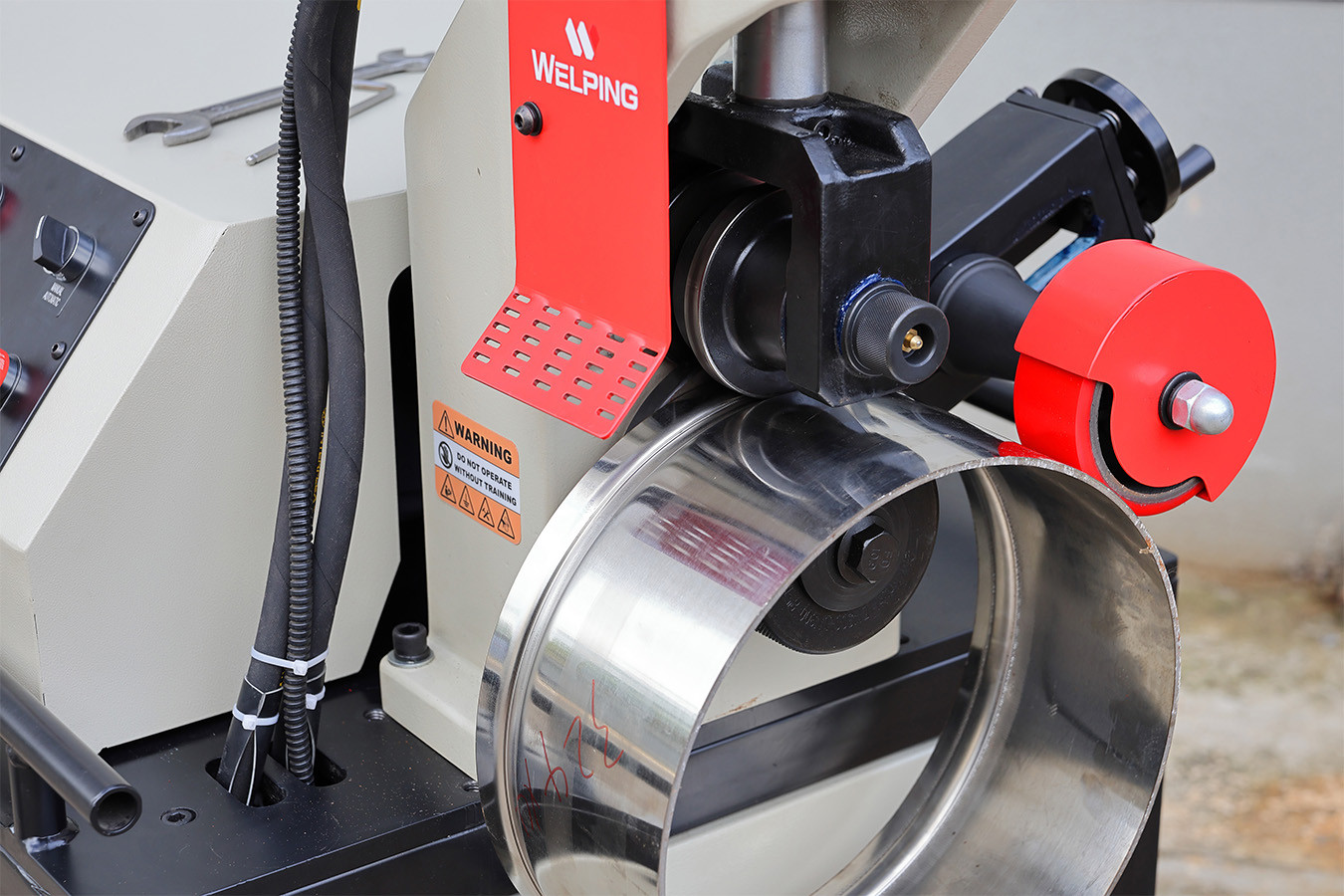

Precision Grooves for Reliable Connections
Resources of AG-4X Roll Grooving Machine
Pipe Roll Grooving Machine Comparasion
