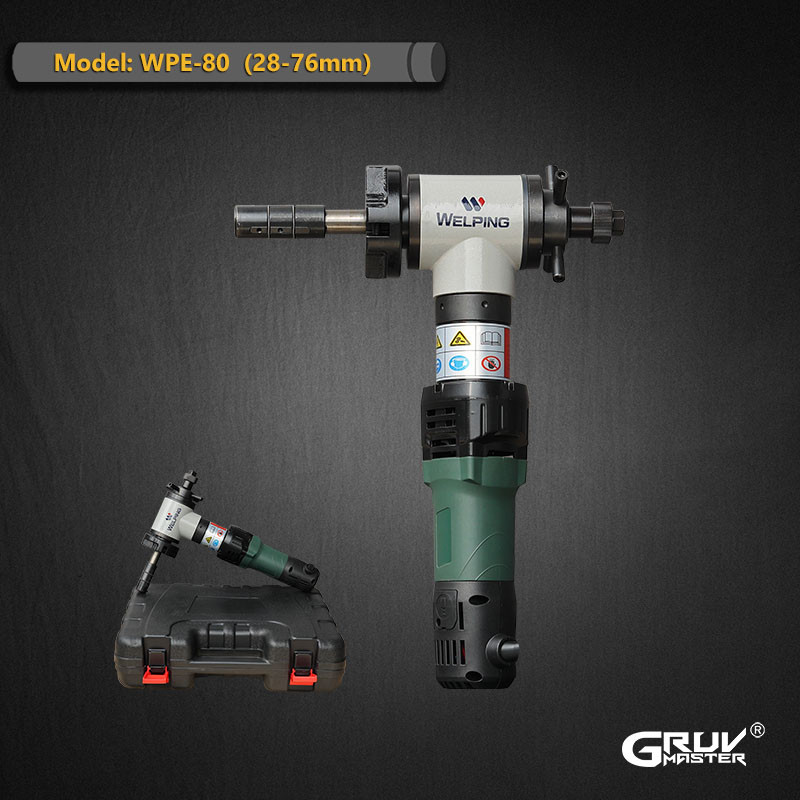

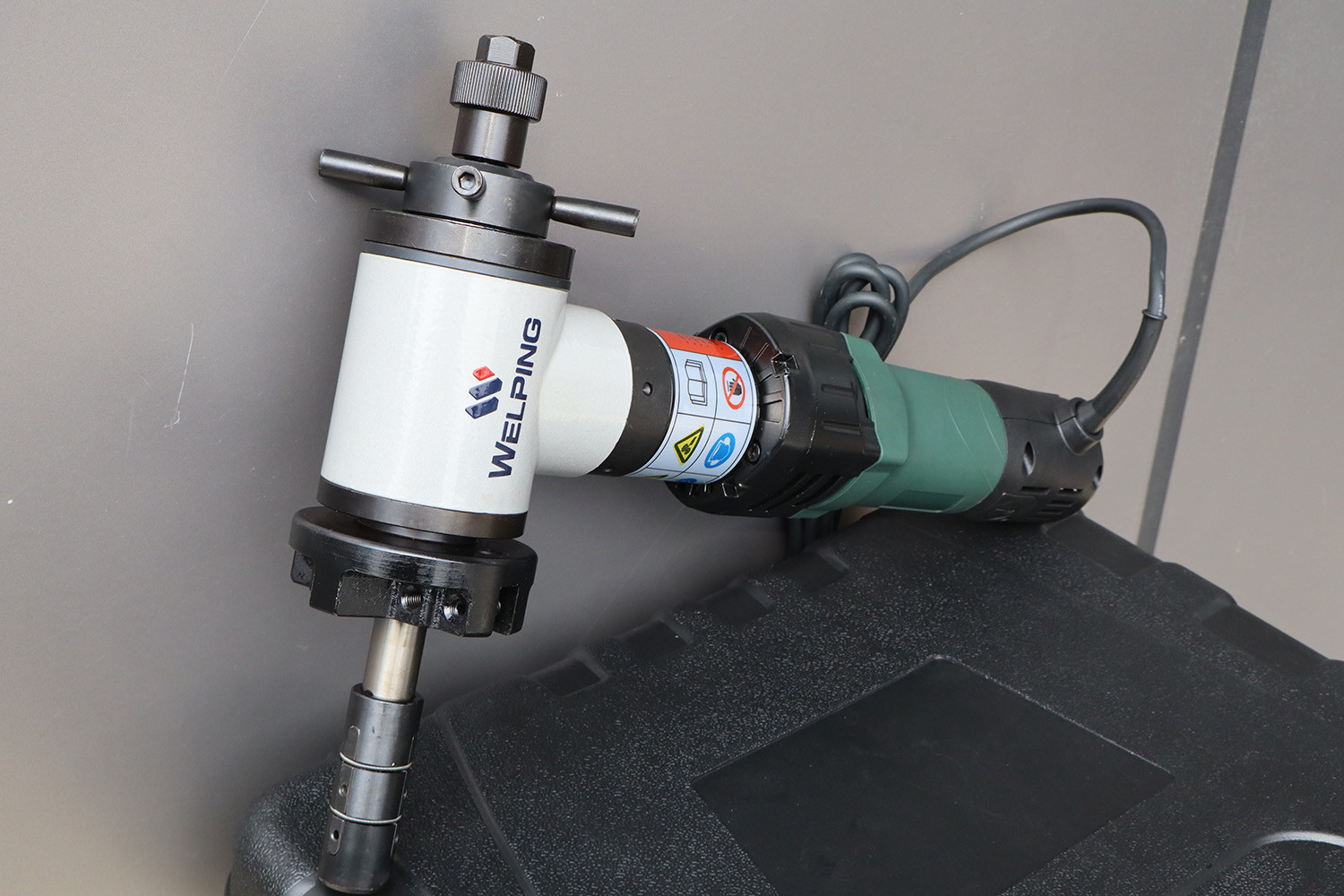

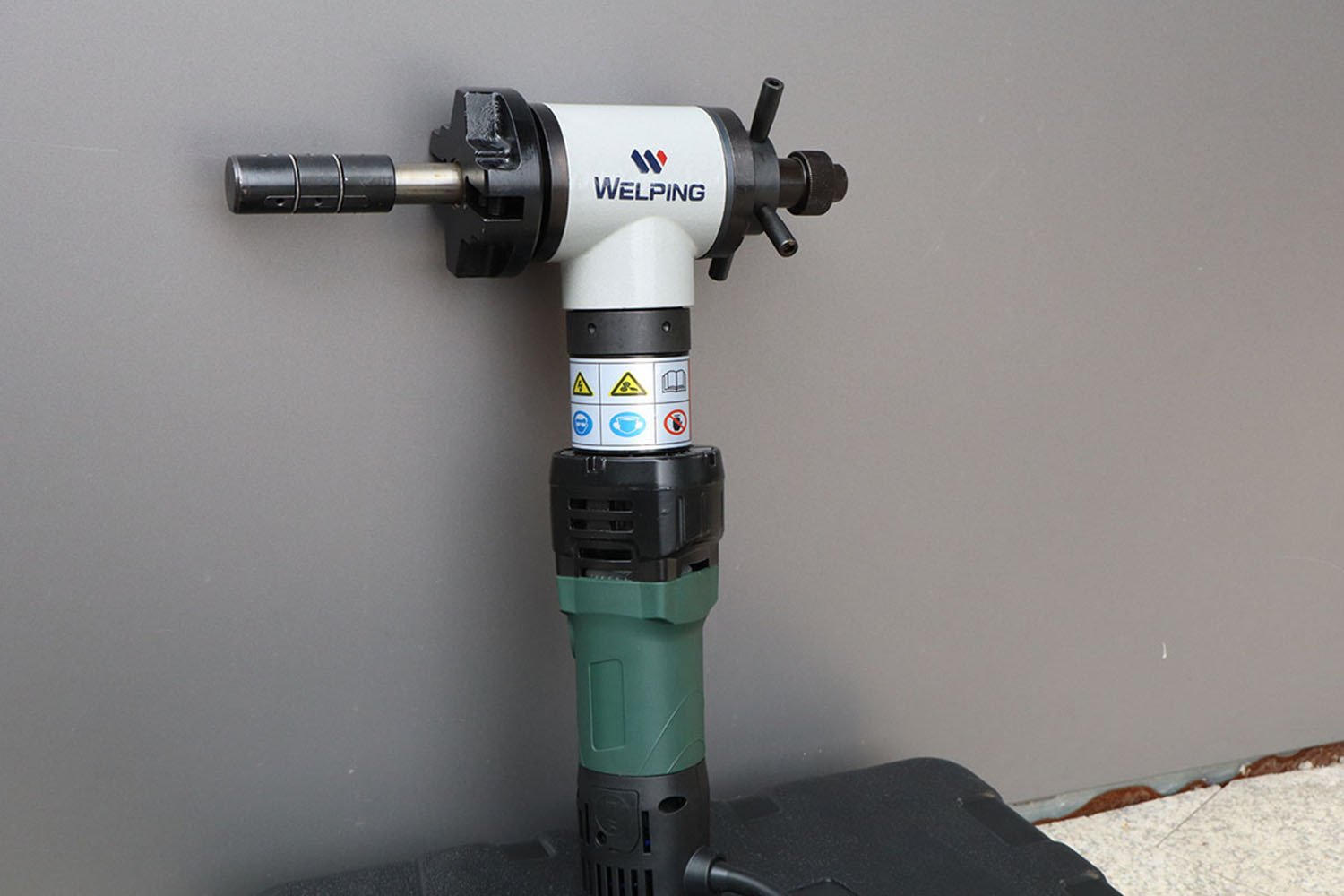

28-76 mm Electric ID Mounted Pipe Beveling Machine 1.2 KW Cold Cutting Beveling Machine (WPE-80)

The internal expansion pipe beveling machine processes the port groove of the pipe.

Categories: ID Mounted Pipe Beveling Machine

Brand: Gruvmaster & Welping

Model: WPE-80

Fabrication Capacity: 28-76 mm

Wall Thickness: 15mm

Rotating Speed: 55RPM

Power Supply: 1200W

Packing Size: 52*37*17cm

Gross Weight: 13KG

Drive: Electric

FOB port: Shanghai/Ningbo

Terms of Payment: L/C, D/A, D/P, Western Union, T/T

Update Time: Jul 7,2025

Contact Now

Detail Information

ID Mounted Electric Pipe Beveling Machine Features

Features of Electric ID Mounted Pipe Beveling Machine

● Automatic positioning center, fast and convenient installation;

● Applicable to a wide range of pipe diameters, modular design, pipe inner wall and deep hole processing;

● Cold cutting without changing the pipe material;

● It is suitable for groove of stainless steel, carbon steel, alloy steel and other multi specification materials, u-type, single V type, double V type, j-type weld groove, chamfer and flat mouth, and groove processing of convex flange and plane flange after butt welding;

● Lightweight, easy to carry

ID Mounted Electric Pipe Beveling Machine Parameter

Model:	WPE-80
Suitable materials:	Carbon Steel (SS Pipe)
Fabrication Capacity:	φ28-75mm
Power supply:	220V / 110V
Frequency:	50HZ / 60HZ
Max Wall thickness:	15mm
Motor power:	1200W
Output speed:	55RPM
Packing gross weight:	13kgs
Packing size:	523717cm

Standard Parts of WPE-80 Pipe beveler

Item Number	Description	Net weight
911042	Tool box	2kg
911043	0° cutting blade	0.30kg
911044	30° cutting blade	0.40kg
912011	37.5° cutting blade	0.40kg
