High Quality Pipe Roll Beveling Cutting Machine Od-mounted Type Compact Design Outside Pipe Cutting Beveling Tools(WPOE)

These series are external clamping full automatic beveling machine with compact design concept,which is designed forgroove processing of narrow working space and small diameter pipeline section. The external clamping type positioninginstallation is adopted and each specification and diameter pipe has a corresponding tensioning block which is automaticcentering ,firm clamping and convenient operation,

Categories: ID Mounted Pipe Beveling Machine

Brand: Gruvmaster & Welping

Model: WPOE

Fabrication Capacity: WPOE OD pipes

Wall Thickness: ≤30mm /50mm or ≤110mm

Voltage: 220V-240V

Power Supply: 1500W-2000W

Drive: Electric

Working Current: 8-10A

FOB port: Shanghai/Ningbo

Terms of Payment: L/C, D/A, D/P, Western Union, T/T

Update Time: Jul 19,2025

Contact Now

Detail Information

OD Mounted Electric Pipe Beveling Machine Features

Features of Electric OD Mounted Pipe Beveling Machine

* Light weight and easy carry.

* Modular design.

* Cold cutting without changing the pipe material.

* Can work on stainless steel,carbon steel,carbon steel,alloy steel and other multi specification materials,u,single V, double V,J-type weld groove,chamfer and flat mouth,and groove processing of convex flange and plane flange after butt fusion welding,light weight and easy carry.

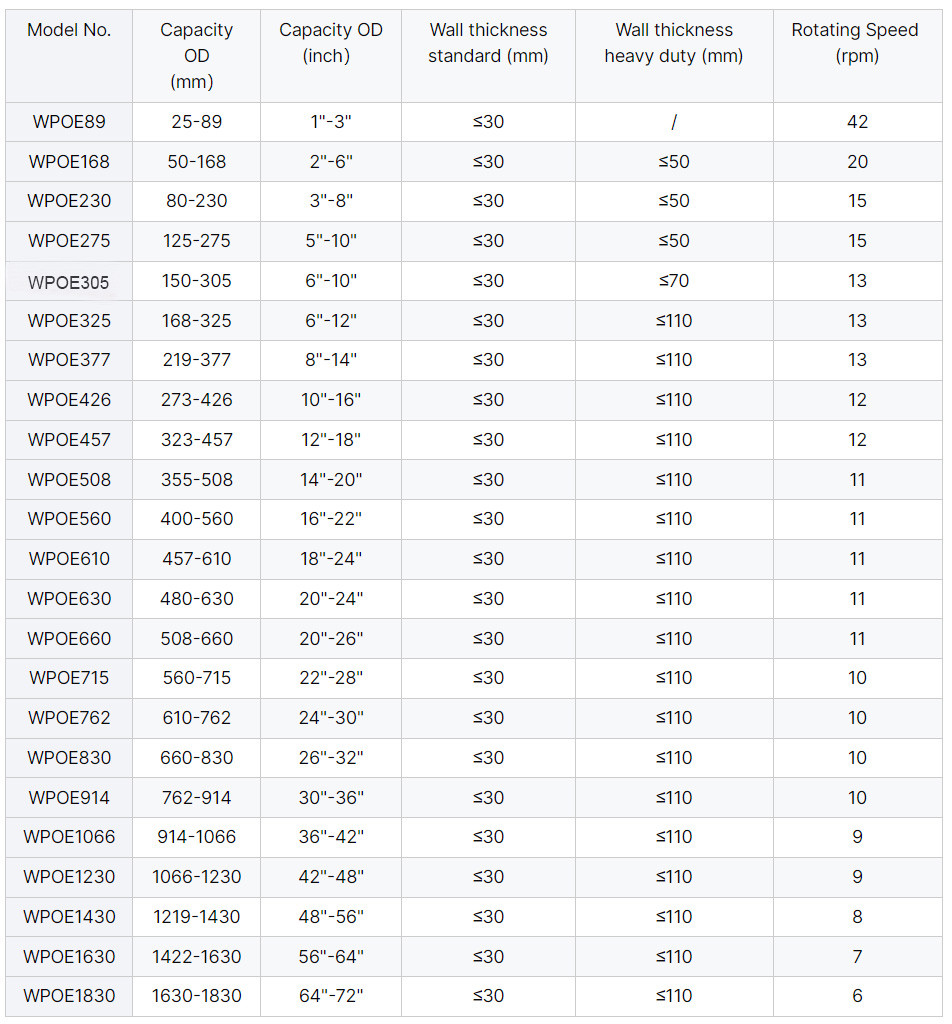

ID Mounted Electric Pipe Beveling Machine Parameter

Model:	WPOE
Suitable materials:	Carbon Steel (SS Pipe)
Working Current:	8-10A
Power supply:	220V / 240V
Frequency:	50HZ / 60HZ
Max Wall thickness:	≤30mm /50mm or ≤110mm
Motor power:	1500W /2000W
Output speed:	30RPM
Drive	Electric
