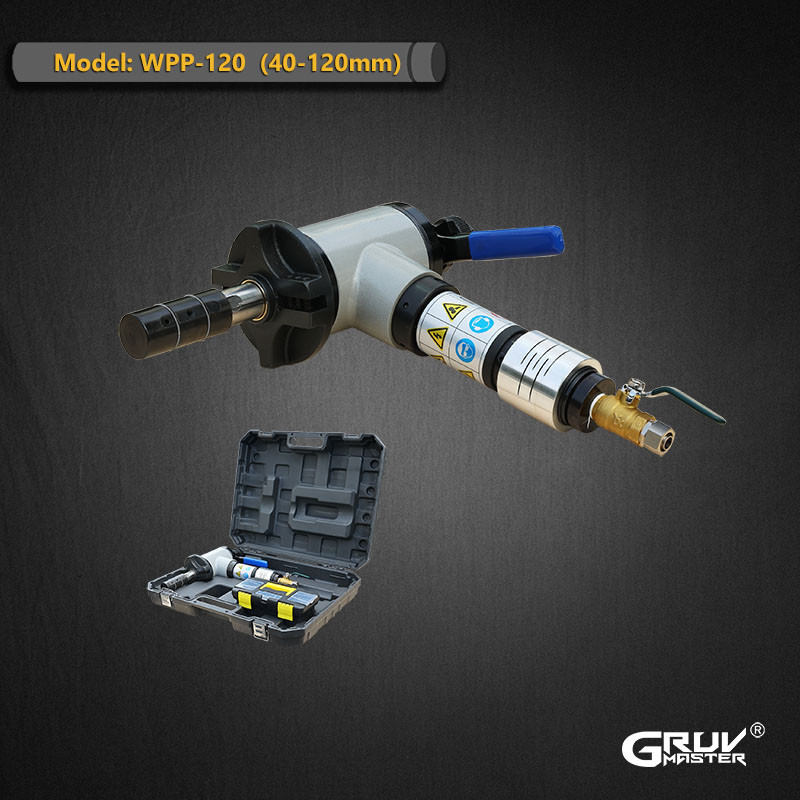

40-120 mm Pneumatic ID Mounted Pipe Beveling Machine 1.4 KW Cold Cutting Beveling Machine (WPP-120)

The internal expansion pipe beveling machine processes the port groove of the pipe.

Categories: ID Mounted Pipe Beveling Machine

Brand: Gruvmaster & Welping

Model: WPP-120

Fabrication Capacity: 40-120 mm

Wall Thickness: 15mm

Rotating Speed: 30RPM

Power Supply: 1400W

Packing Size: 60*48*20cm

Gross Weight: 28KG

Drive: Pneumatic

FOB port: Shanghai/Ningbo

Terms of Payment: L/C, D/A, D/P, Western Union, T/T

Update Time: Jul 8,2025

Contact Now

Detail Information

ID Mounted Pneumatic Pipe Beveling Machine Features

Features of Pneumatic ID Mounted Pipe Beveling Machine

● Automatic positioning center, fast and convenient installation;

● Applicable to a wide range of pipe diameters, modular design, pipe inner wall and deep hole processing;

● Cold cutting without changing the pipe material;

● It is suitable for groove of stainless steel, carbon steel, alloy steel and other multi specification materials, u-type, single V type, double V type, j-type weld groove, chamfer and flat mouth, and groove processing of convex flange and plane flange after butt welding;

● Lightweight, easy to carry

ID Mounted Pneumatic Pipe Beveling Machine Parameter

Model:	WPE-120
Suitable materials:	Carbon Steel (SS Pipe)
Fabrication Capacity:	φ40-120mm
Power supply:	/
Frequency:	/
Max Wall thickness:	15mm
Motor power:	/
Output speed:	30RPM
Packing gross weight:	28kgs
Packing size:	604820cm

Standard Parts of WPE-120 Pipe beveler

Item Number	Description	Net weight
911042	Tool box	2kg
911043	0° cutting blade	0.30kg
911044	30° cutting blade	0.40kg
912011	37.5° cutting blade	0.40kg
