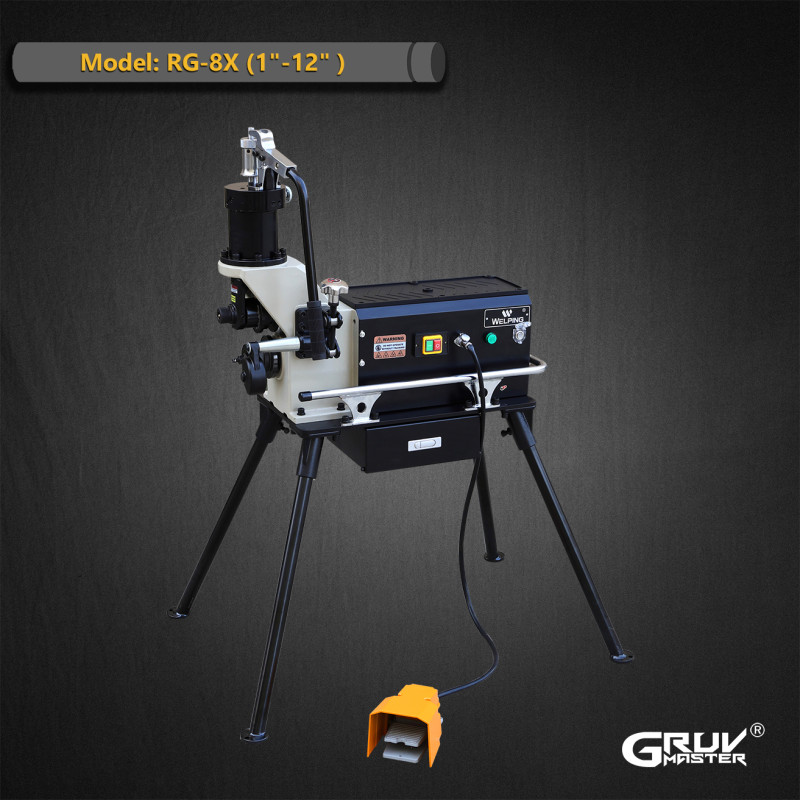

Hydraulic Roll Grooving Machine 1"–12" with TitanSeal™ Hydraulic System | Gruvmaster RG-8X
RG-8X hydraulic roll grooving machine for 1"–12" steel pipes. Features TitanSeal™ dual-seal system and One-Push™ fast feeding for efficient heavy-duty operation.
- Categories
- Hydraulic Roll Grooving
- Trademark/Brand
- Gruvmaster & Welping
- Model
- RG-8X
- Fabrication Capacity
- 1"-12"(DN25-DN300) SCH10/40 Steel Pipe
- Max Wall Thickness
- 10mm
- Output Speed
- 32RPM
- Power Supply
- 1500W
- Gross Weight
- 142KG
- Voltage
- 110V/220V
- FOB port
- Shanghai/Ningbo
- Terms of Payment
- L/C, D/A, D/P, Western Union
- Update Time
- Oct 29,2025
Detail Information
Pipe Roll Grooving Machine Video
Features of Electric Hydraulic Roll Groover Machine

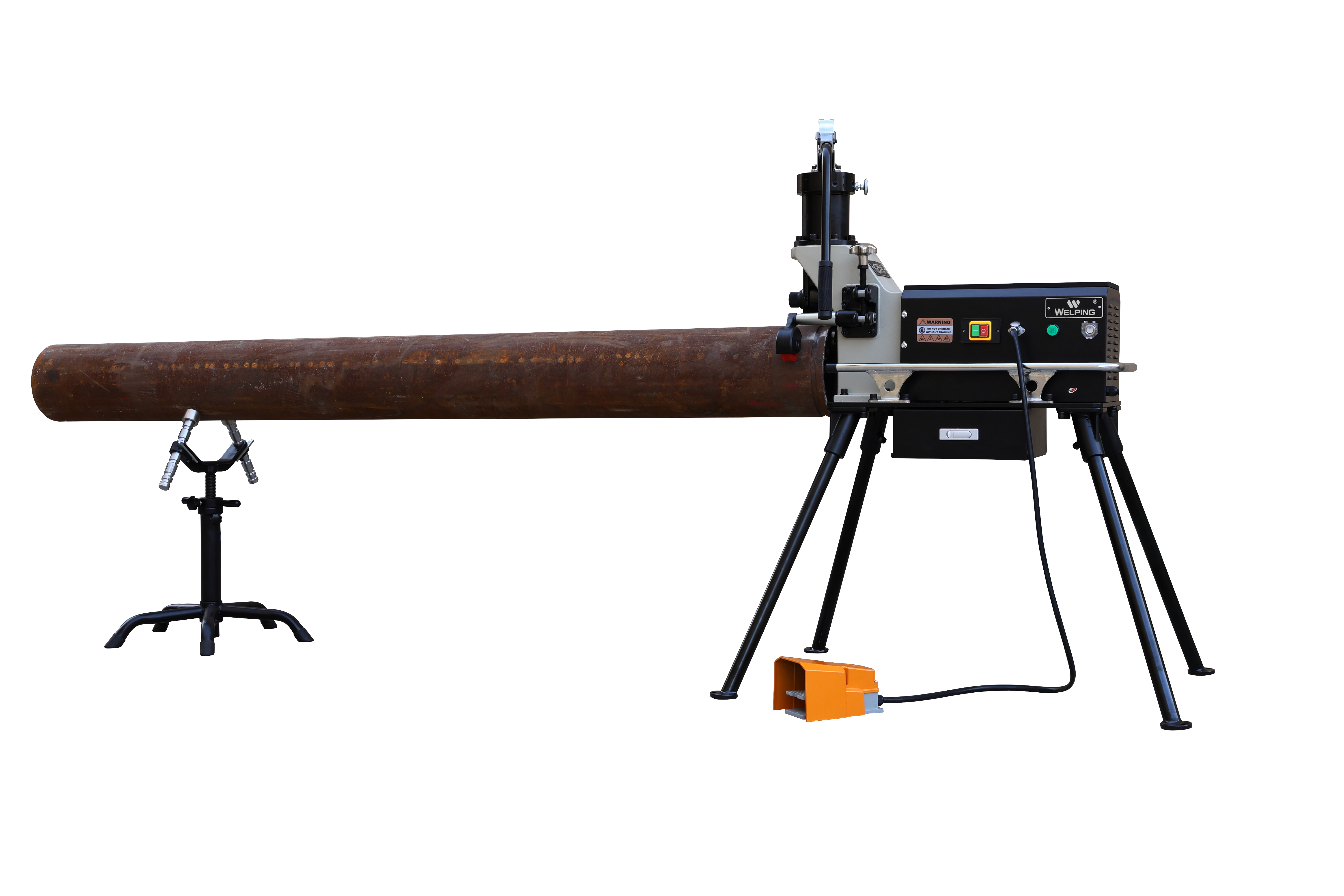

● Built for heavy-duty grooving jobs, model RG-8X is ideal for high-volume grooving of various size steel pipes in workshop and construction sites.

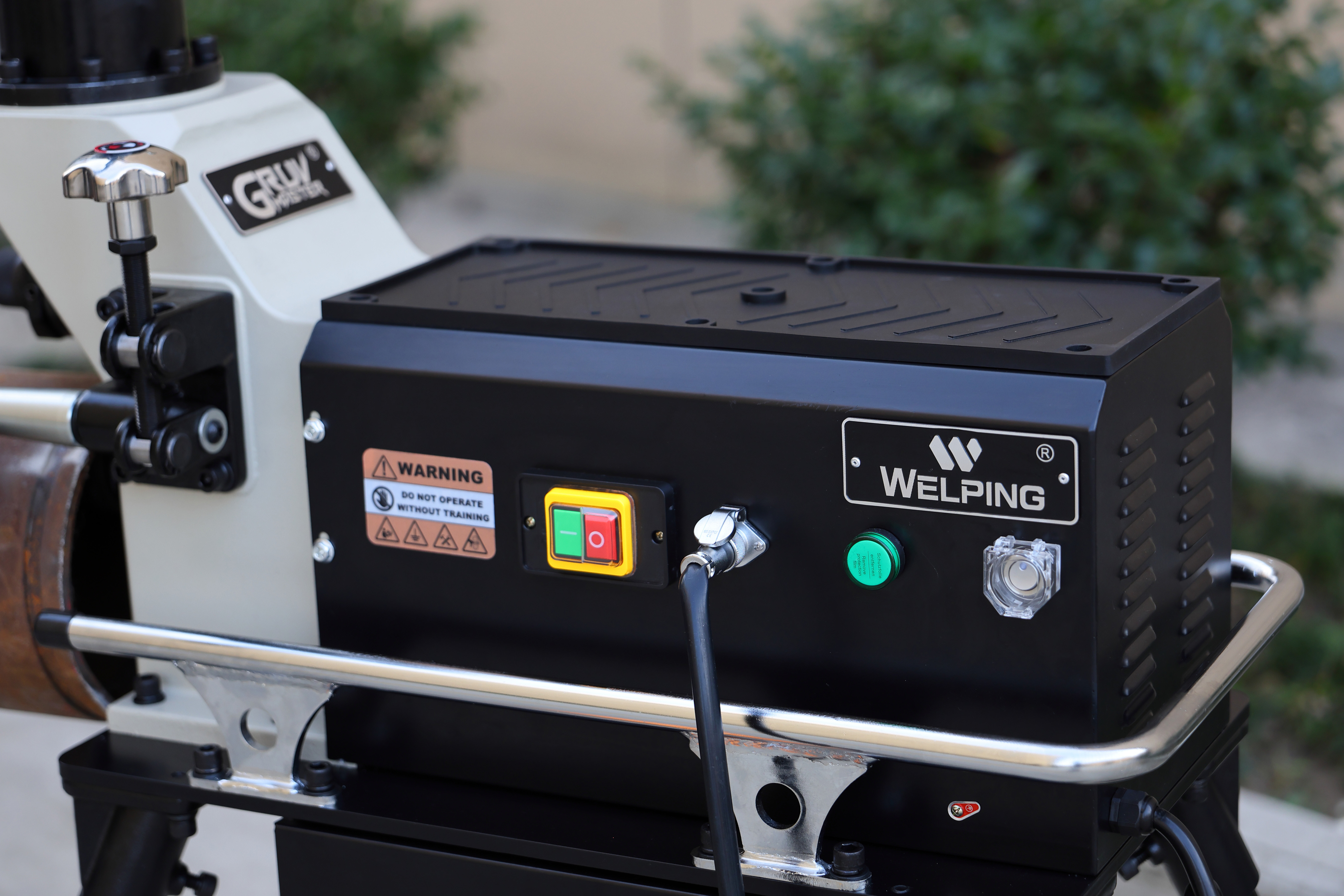

● Equipped with a high-power motor and high-strength gearbox, the machine is built for long-term, continuous operation.
● One-Push™ groove roller system: instant pipe engagement with a single press, quick and effortless operation.
● Heavy-duty groove rollersand drive rollers (standard 1"-12", can choose 14" for option)with interlocking structure ensures precise control of the pipe sealing surface length.
● Titanseal™ fully enclosed hydraulic pump with innovations: ultra-fast feed, dual oil-reservoir structure, and multi-seal protection — doubling efficiency and ensuring ultra-long service life without oil changes.
● Working speed up to 32 RPM, boosting efficiency by 39%.
Pipe Roll Grooving Machine Parameter
Model: | RG-8X |
Suitable materials: | Carbon Steel,SS Pipe |
Fabrication Capacity: | 1"-12" Pipe SCH10/SCH40 |
Power supply: | 220V/110V |
Frequency: | 50HZ /60HZ |
Max wall thickness: | 10mm |
Motor power: | 1500W |
Output speed: | 32RPM |
Packing gross weight: | 142kgs |
Standard Parts of RG-8X Roll Groover
Item Number | Description | Net weight | ||||
911283 | Drive Roller 1"–1½"(Φ33–Φ48) | 1.13kg | ||||
911284 | Drive Roller 2"–3"(Φ60–Φ89) | 1.30kg | ||||
911285 | Drive Roller 3½"–6"(Φ101–Φ168) | 1.30kg | ||||
911286 | Drive Roller 8"–12"(Φ219–Φ325) | 1.40kg | ||||
912133 | Groove Roller 1"–1½"(Φ33–Φ48) | 0.45kg | ||||
912134 | Groove Roller 2"–3"(Φ60–Φ89) | 0.45kg | ||||
912135 | Groove Roller 3½"–6"(Φ101–Φ168) | 0.45kg | ||||
912136 | Groove Roller 8"–12"(Φ219–Φ325) | 0.45kg | ||||
Optional Parts of RG-8X Roll Groover
Item Number | Description | Net weight | ||||
912137 | Groove Roller 14"–16" | 0.45kg | ||||
911287 | Groove roller for SCH10 Anti-flare(14"~16") | 0.45kg | ||||
Drive Unit of RG-8X Roll Groover
Catalog No. | Phase | Power | Voltage | Frequency |
Gruv-X | Single | 1500W | 220V | 50/60Hz |
Gruv-X | Single | 1500W | 110V | 50/60Hz |
Resources of RG-8X Roll Grooving Machine
Roll Grooving Machine Configuration

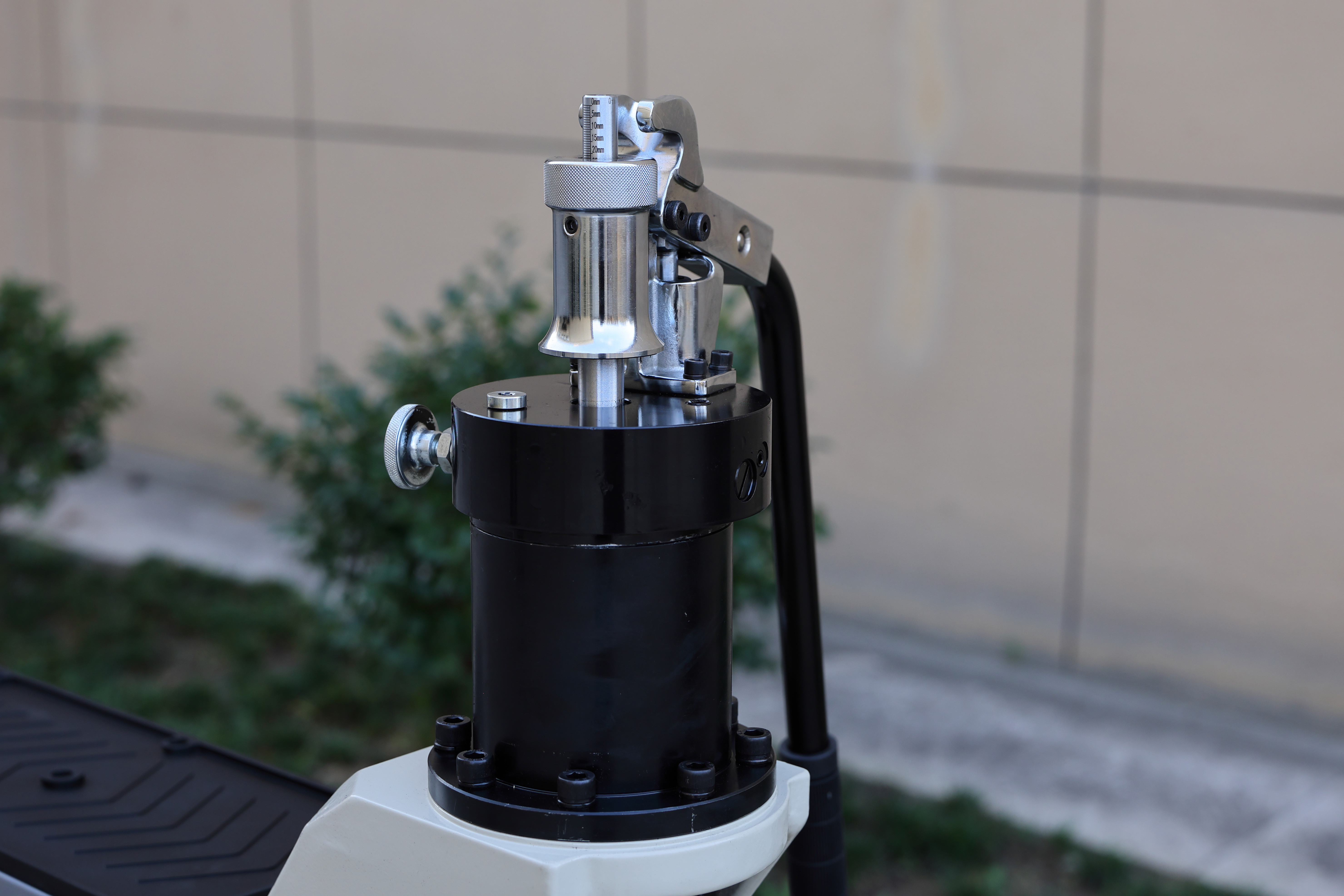

Hydraulic pump
High quality seal parts ensure long-term field usage without leaking
Fine-machined cylinder with accurate sizes
Proper-hardened piston rod of long-life
Built-in groove depth adjusting rod
Casting part
Reinforced cast iron housing for hydraulic pump, roller sets, pipe stabilizer
Support color customization
Balanced structure withstands tough jobs
Base & Parts
Pipe stabilizer to prevent pipe slipping
The complete steel base plate is High-strength, solid, and deformation-resistant.

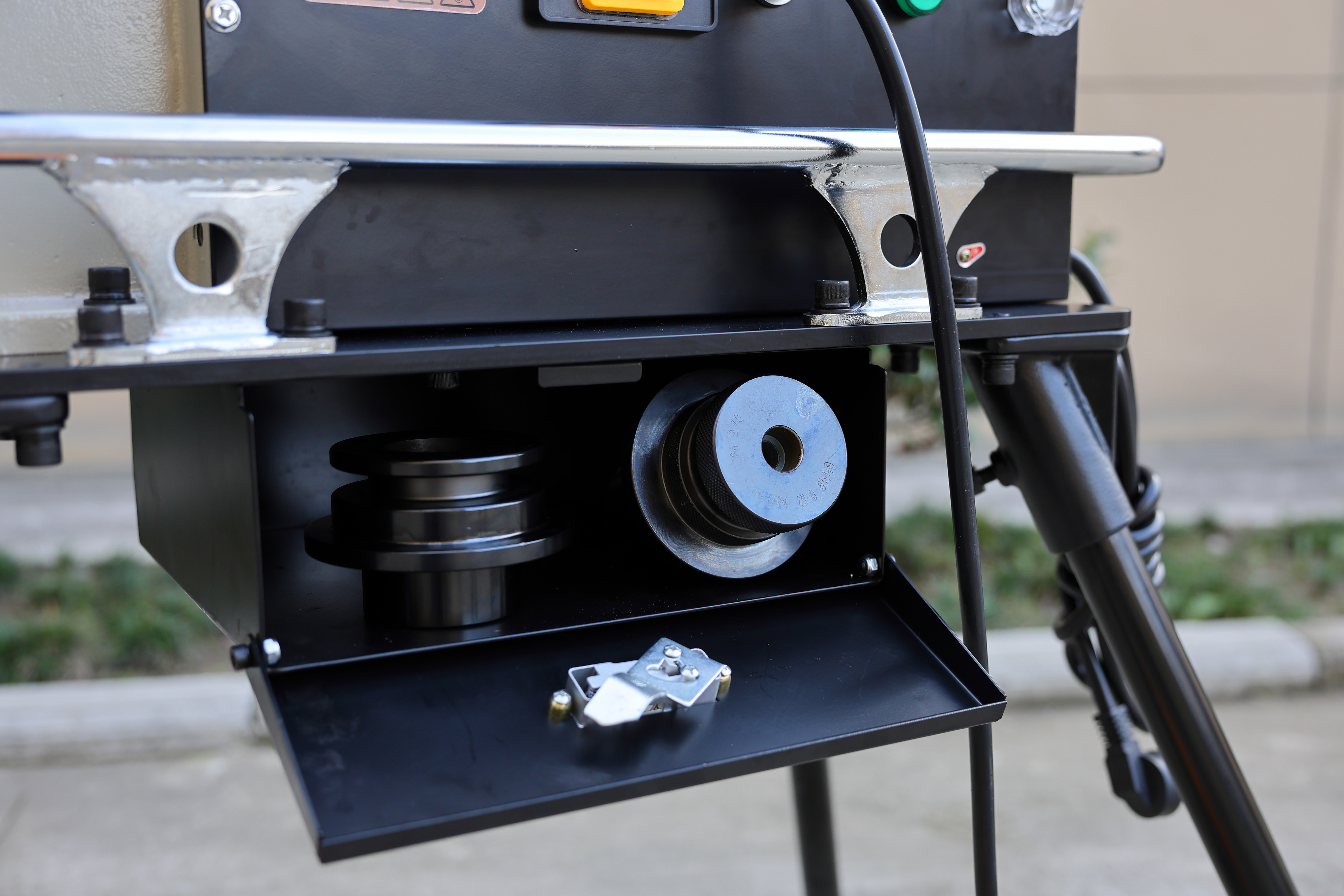

Tool box * for easy stock of roll sets, tools, and parts

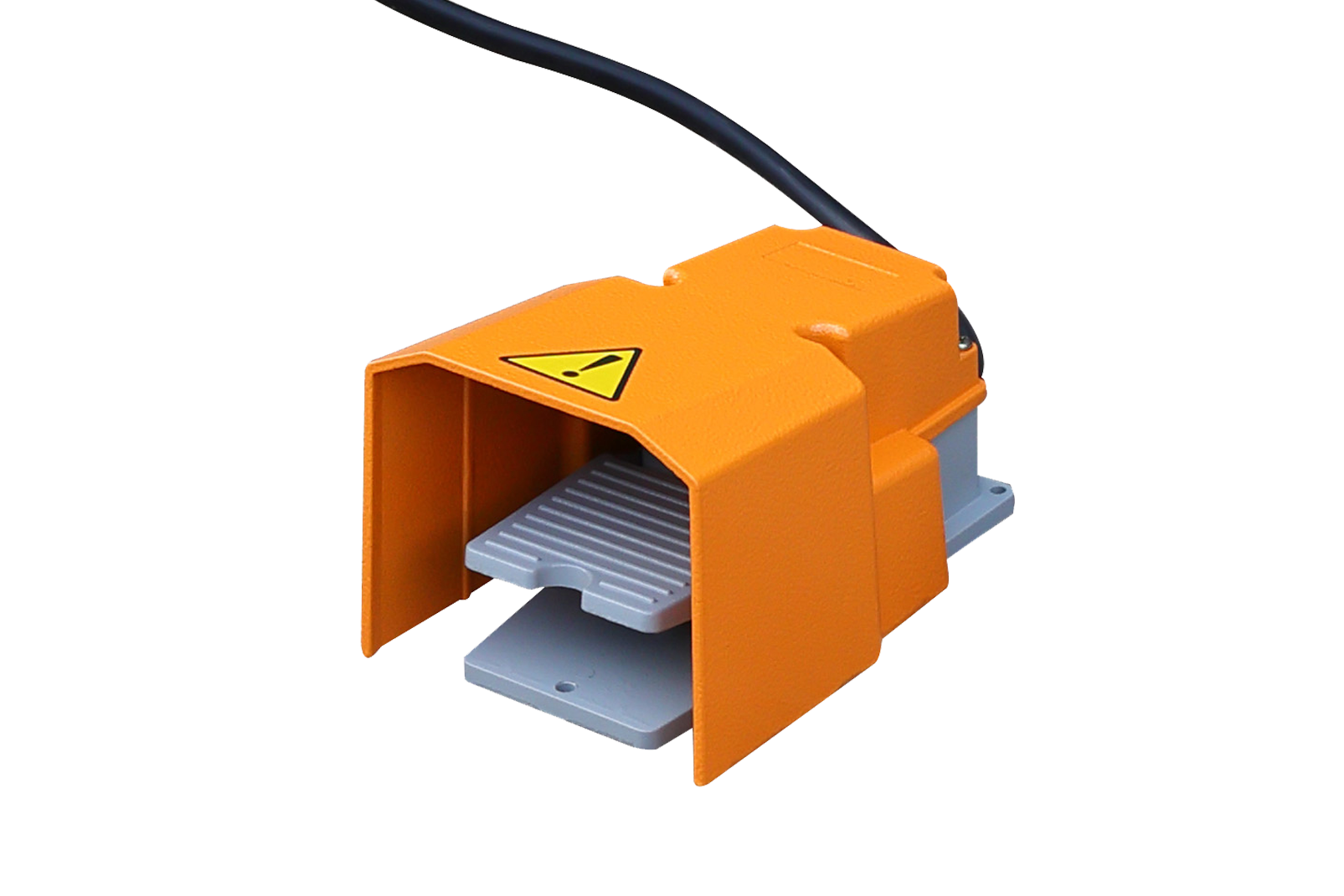

Foot Switch
Removable foot switch with cable and plug
Safety operation choice
Light-weight and reliable

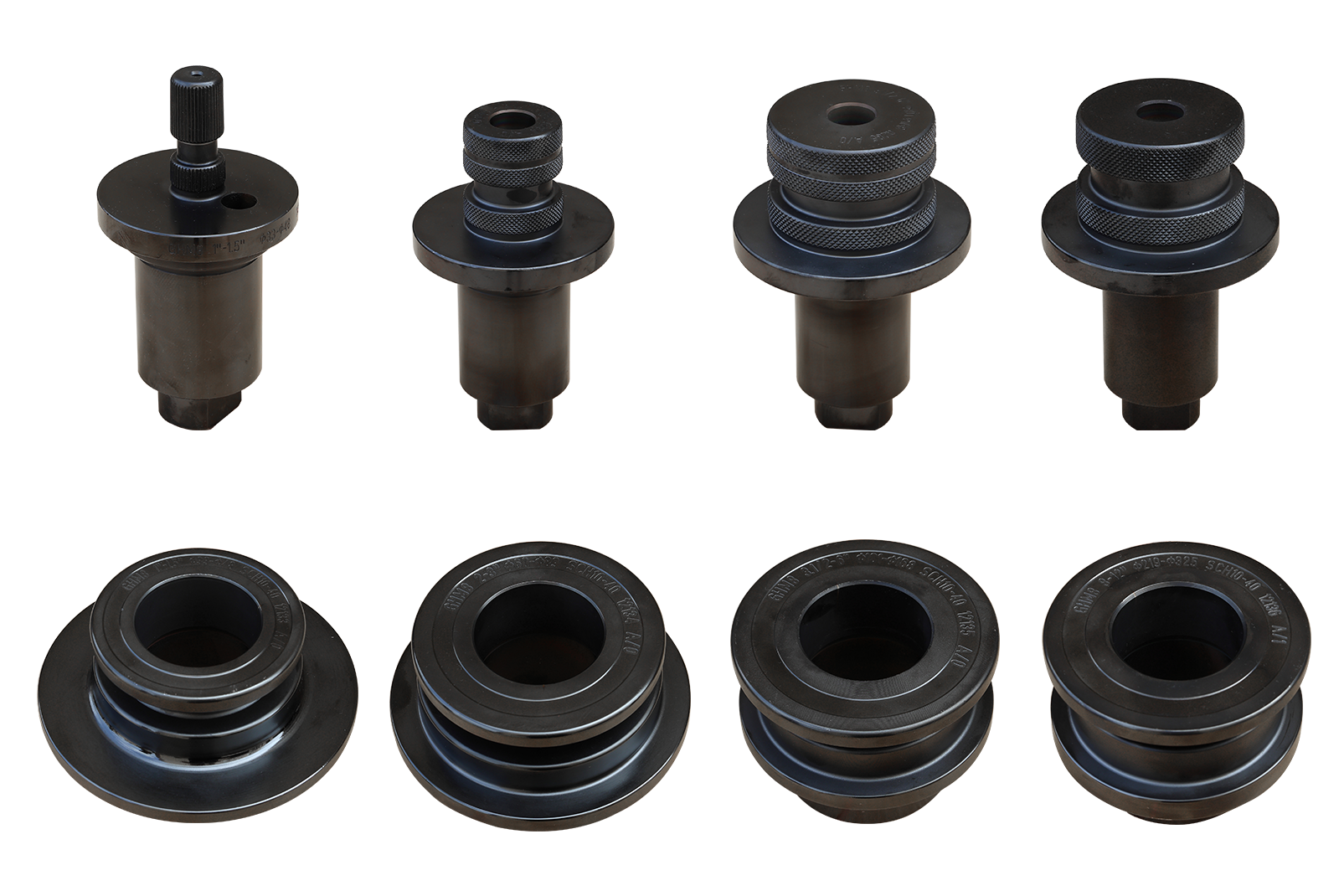

Roll Sets
Available in sizes:
1"~1 ½"，2"~3",3 ½"-6"，8"-12"
For Steel pipe 1"-12" SCH10/40
High strength steel, hardened to withstand long-time usage

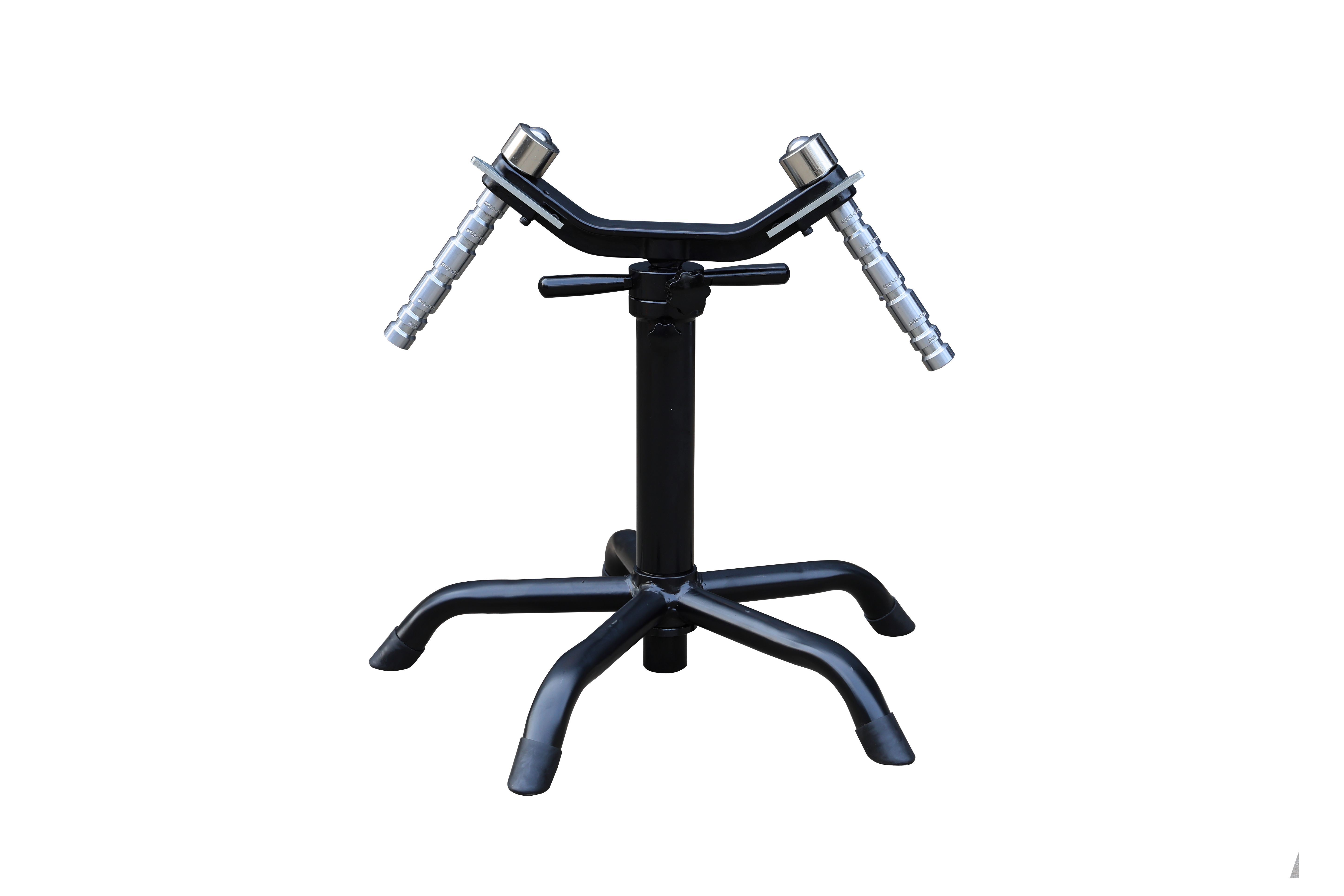

Pipe Stand
Fine-machined steel body, bearing heavy weight Nylon roller heads, for smooth rotation,
Adjustable height to suit different size pipes 1"-12"
