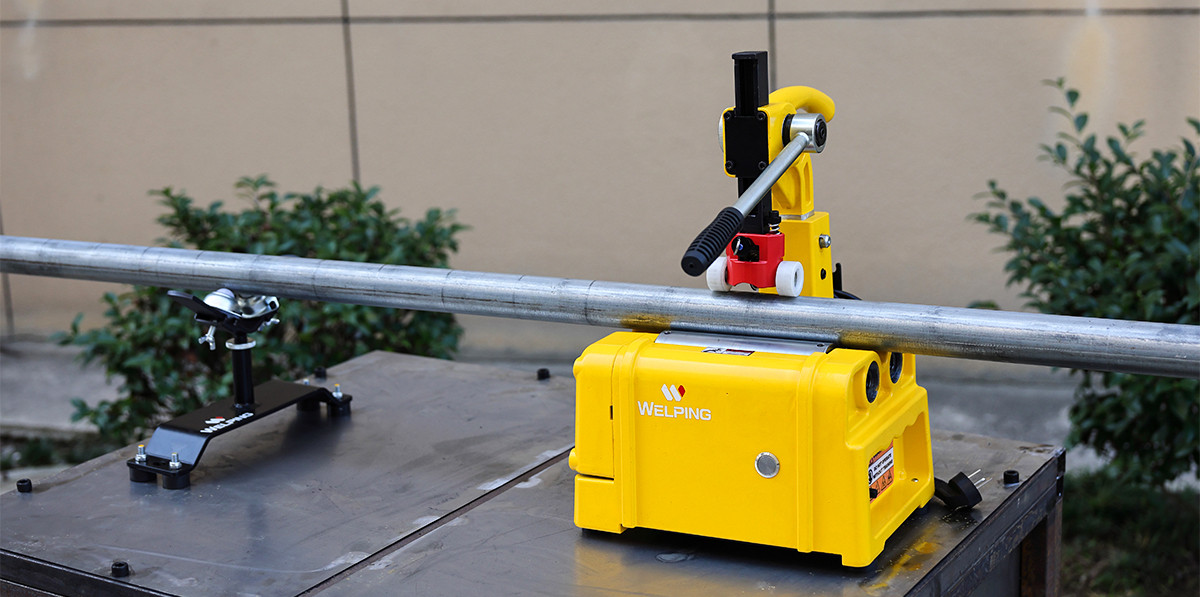

PTC140 Bench-Top Pipe Cutting Machine for Metal Pipes
PTC140 is a compact desktop pipe cutting machine designed for efficient cutting of thin-wall metal and PVC pipes from 15 to 141 mm. With a rigid all-aluminum body, high-speed performance up to 350 RPM, and a lever-operated system with three height adjustment levels, it is well suited for workshop and batch cutting applications requiring accuracy, consistency, and easy operation.
Detail Information
PTC140 Desktop Pipe Cutting Machine
Cutting Range: 15–141 mm | Thin-Wall Metal & PVC Pipe Cutting
Product Overview
Pipe Cutting Machine — PTC140
· Cutting Capacity: 15mm – 141mm
· Max Pipe Wall Thickness: 3mm
· Output Speed: 0 – 350 RPM
· Motor: 220V / 500W / 1Ph
· Net Weight: 20 kg
· Applicable Materials: thin-wall steel, stainless steel, copper, aluminum, and PVC pipes
Design & Operation
| Model NO. | PTC140 | Automation | Manual |
| Warranty | 1 Year | Transport Package | Carton |
| Trademark | Welping | Origin | China |
| HS Code | 8461500090 | Manufacturing Capacity | 2000pieces/Year |
Packing Size: | 37*35*56cm | Gross weight: | 32.000kg |
Key Features

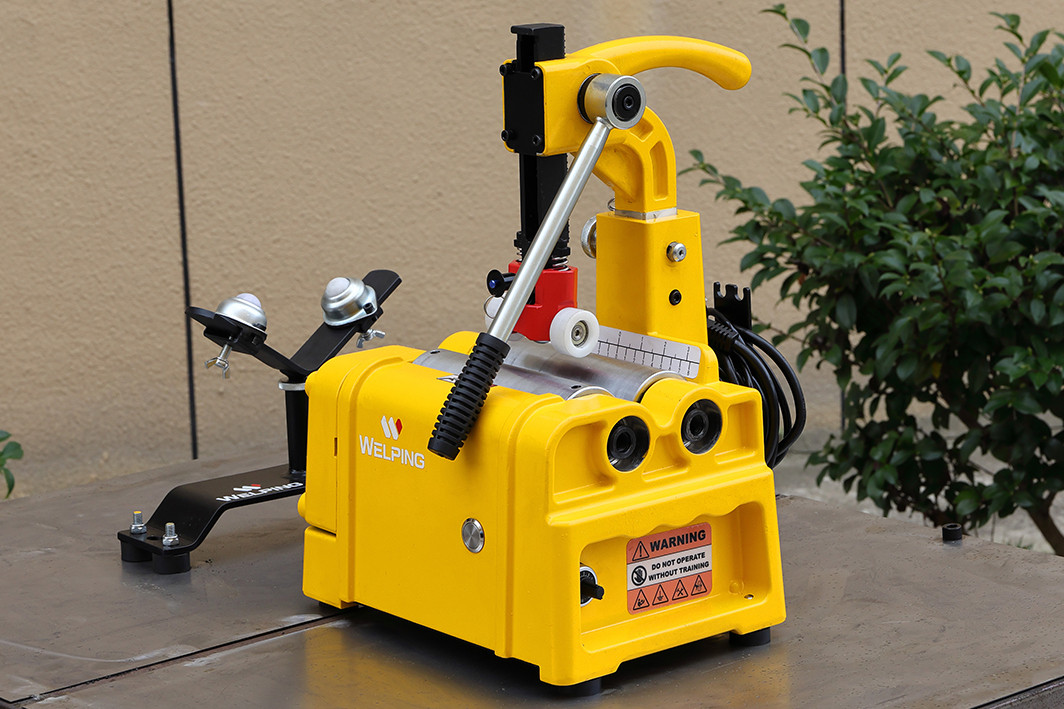

Compact Structure & Rigid Aluminum Body
· Compact design for desktop and workbench use, easy for single-person handling
· All-aluminum integrated body ensures structural rigidity and long-term reliability
· Supports color customization and private branding
High Cutting Efficiency
· Small-diameter pipes are suitable for high-speed cutting, max speed of up to 350 RPM
· 10-level stepless speed control switchprovides optimized cutting speeds for pipesof different diameters

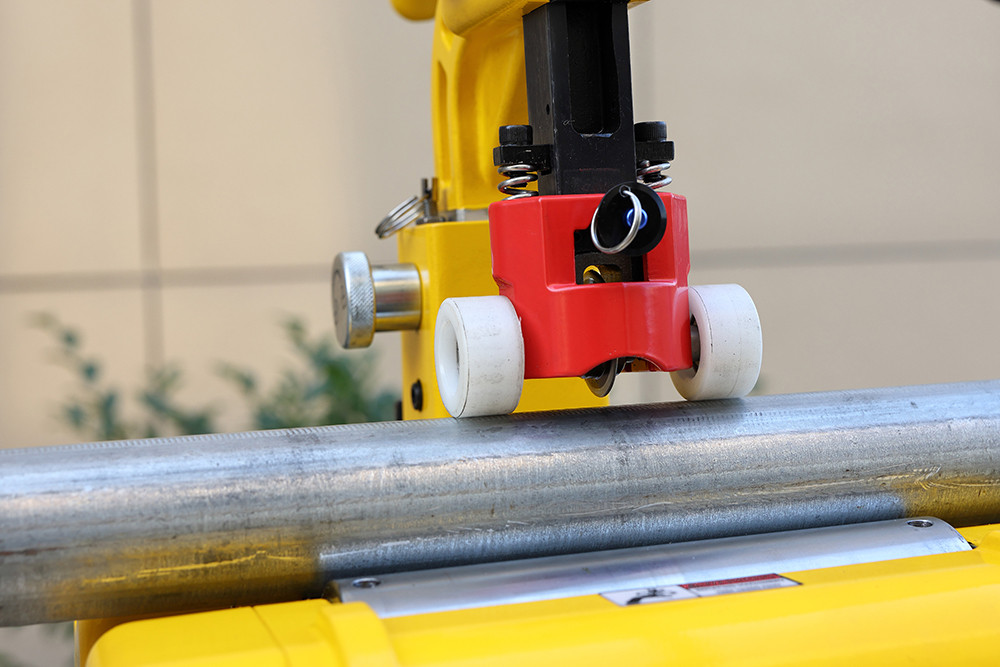

· The cutter head features a quick-releasedesign, allowing fast replacement
Fast Operation & Adjustable Cutting Control

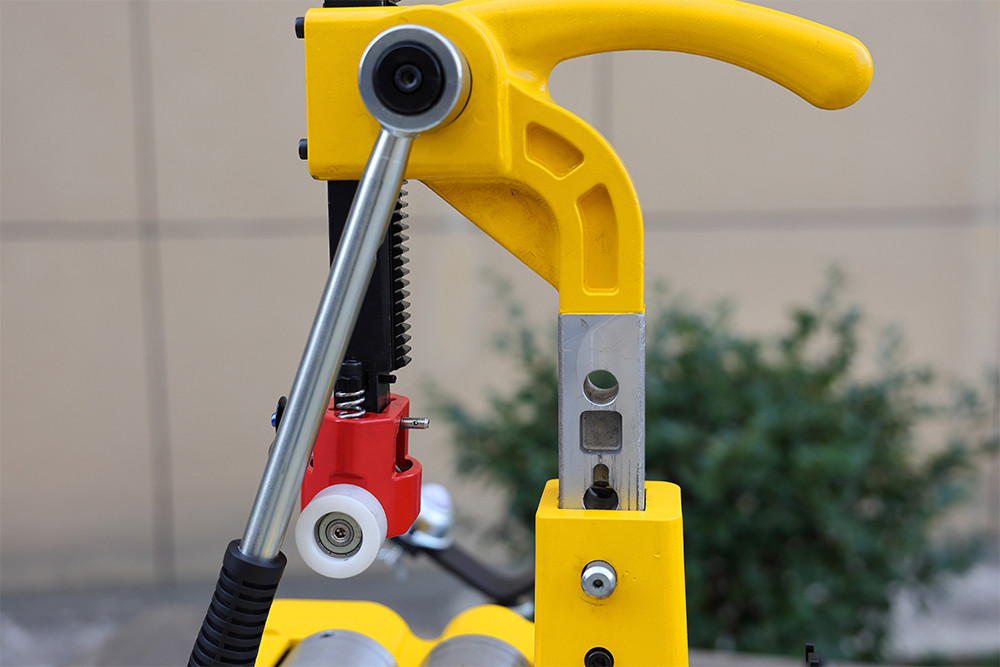

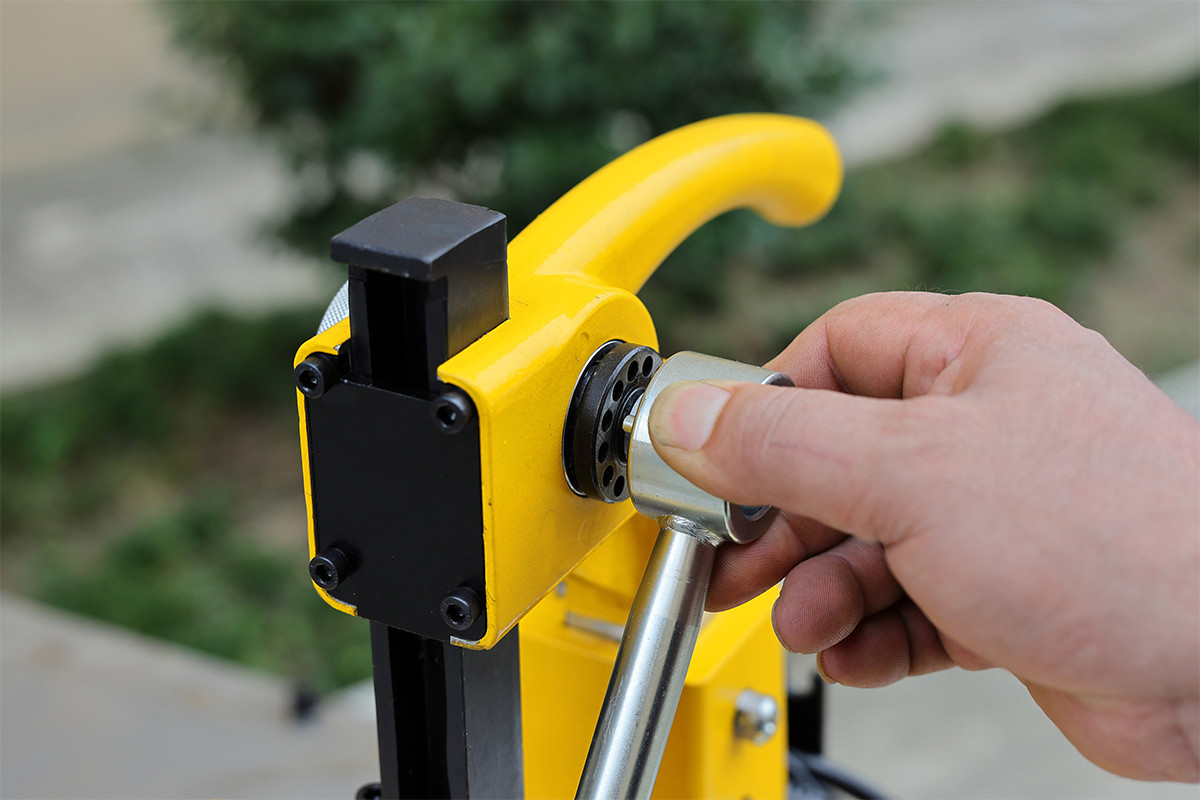

· The handle features an adjustable structure. When the handle position is not suitable for cutting, it can be pulled out sideways for quick adjustment.
Wide Compatibility for Thin-Wall Pipes
· Suitable for various thin-wall pipes, including steel, stainless steel, copper, aluminum, and PVC

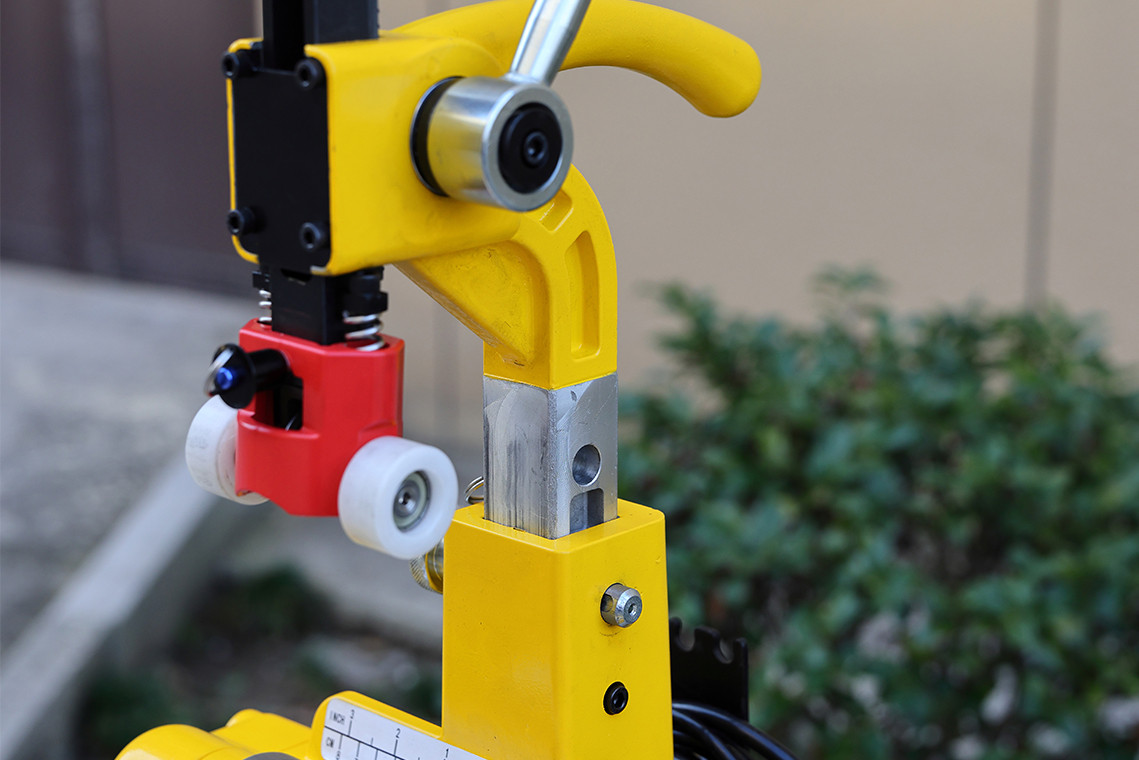

· Three adjustable height levels adapt easily to different pipe sizes
Dual Power Modes
· Operates with AC power or a lithium battery
· Battery-powered version suitable for explosion-sensitive cutting environments（the current battery interface fits MAKITA batteris）
Adjustable Cutting Speed
· Cutting speed can be adjusted according to pipe diameter; high speed is recommended for small pipes, and low speed for large pipes.
Product Demonstration
