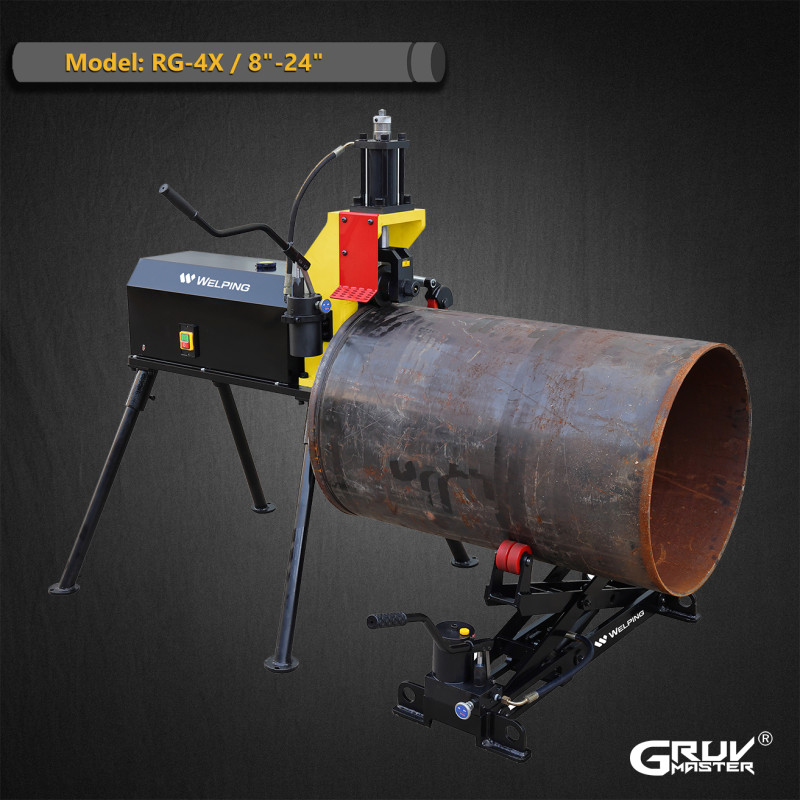

Hydraulic Roll Grooving Machine for 8 Inch to 24 Inch Steel Pipes (RG-4X)
· For 8″–24″ steel and stainless steel pipes.
· Heavy-duty construction for demanding applications.
· Separate hydraulic pump and cylinder.
· Optional AGS rollers for 14″–24″ pipes.
· Heavy-duty construction for demanding applications.
· Separate hydraulic pump and cylinder.
· Optional AGS rollers for 14″–24″ pipes.
Detail Information
RG-4X Heavy-Duty Roll Grooving Machine
Hydraulic Grooving for 8–24″ Steel Pipes
RG-4X Heavy-Duty Roll Grooving Machine
Key Features
· Designed for 8″–24″ (DN200–DN600) steel and stainless steel pipes.
· Heavy-duty construction for workshop and jobsite applications.
· Separate hydraulic pump and cylinder with a fully enclosed pump design for reduced maintenance.
· Interlocking drive and groove rollers help maintain consistent groove positioning.
Steel Pipe Roll Grooving Machine Parameters
Model: |
RG-4X |
Suitable materials: |
Carbon steel;Stainess steel |
Capacity: |
"8"-"24" steel pipe |
Power supply: |
220V/110V |
Frequency: |
50/60 HZ |
Motor power: | 2200 W |
Max wall thickness: | 13 mm |
Output speed: | 20 RPM |
Gross weight | 285 KG |
Packing Size | 110*75*99 CM |
Standard Parts
Item Number |
Description |
Net Weight |
|
911087 |
Drive roller 8"~12" (Φ219~Φ325） |
3.50 KG |
|
911088 |
Drive roller 14"~16" （Φ355~Φ426） |
3.50 KG |
|
911089 |
Groove roller 18"~24" （Φ457~Φ630） |
3.50 KG |
|
912029 | Groove roller 8"-12" （Φ219~Φ325） | 2.00 KG | |
912030 | Groove roller 14"-16" （Φ355~Φ426） | 2.00 KG | |
912031 | Groove roller 18"-24" （Φ457~Φ630） | 2.00 KG | |
998038 | Pipe stand for 8"~24" （Φ219~Φ630） | 33.0 KG | |
998026 | Foot Switch | 1.50 KG | |
Optional parts
Item Number | Description | Net Weight | |
911099 | AGS Groove roller 14"~24" (Φ355~Φ630) | 3.50 KG | |
912034 | AGS Drive roller 14"~24" (Φ355~Φ630) | 2.00 KG | |
Steel Pipe Roll Grooving Machine Configuration
Heavy-Duty Frame
The robust frame provides stable support for large-diameter pipe grooving in workshops and on jobsites.
Split-Type Hydraulic System
The hydraulic pump and cylinder are separately mounted for easy maintenance and servicing.
Interlocking Roller Set
Interlocking drive and groove rollers help maintain consistent groove positioning. Three standard roller sets cover 8″–24″ pipes.
Fully Enclosed Hydraulic Pump
The fully enclosed pump requires no breather hole, helping extend hydraulic oil change intervals and pump service life.
Hydraulic Feed Cylinder
The hydraulic cylinder applies downward force to the groove roller to form the pipe groove.
Adjustable Pipe Stand
The height-adjustable stand supports 8″–24″ pipes and helps align the pipe with the machine during grooving.
