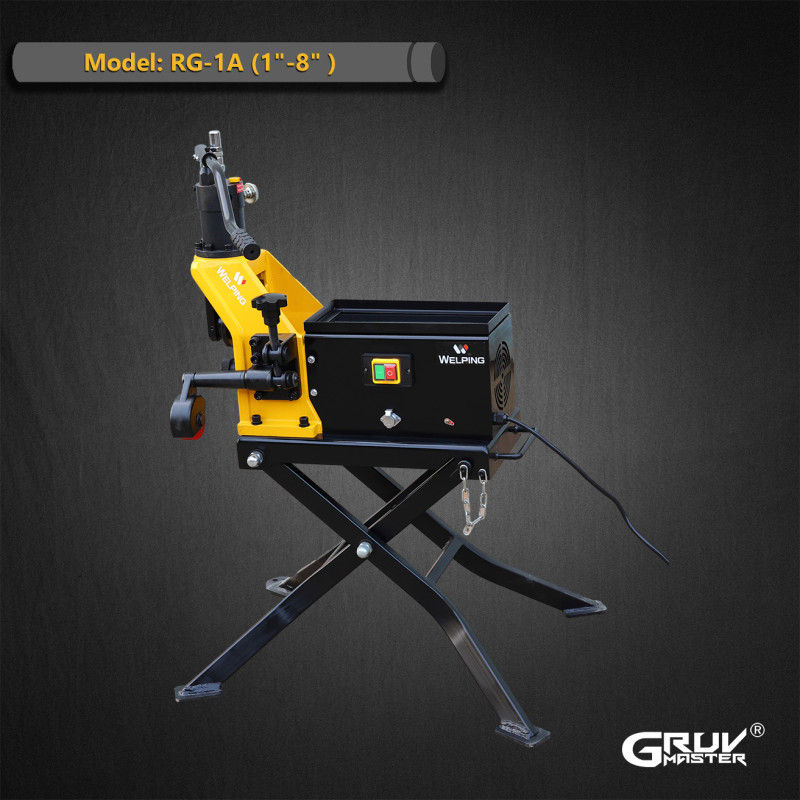

Hydraulic Electric Roll Grooving Machine with Foldable Legs for 1 Inch to 8 Inch Steel Pipes (RG-1A)
Hydraulic Electric Roll Grooving Machine with Foldable Legs for 1 Inch to 8 Inch Steel Pipes (RG-1A)
![Hydraulic Electric Roll Grooving Machine with Foldable Legs for 1 Inch to 8 Inch Steel Pipes (RG-1A)](https://icdn.tradew.com/file/202402/1576146/jpg/8055771.jpg?x-oss-process=image/resize,m_pad,l_800/quality,Q_90)
![Hydraulic Electric Roll Grooving Machine with Foldable Legs for 1 Inch to 8 Inch Steel Pipes (RG-1A)](https://icdn.tradew.com/file/202402/1576146/jpg/8055771.jpg?x-oss-process=image/resize,m_pad,l_100/quality,Q_90)
![Hydraulic Electric Roll Grooving Machine with Foldable Legs for 1 Inch to 8 Inch Steel Pipes (RG-1A)](https://icdn.tradew.com/file/202402/1576146/jpg/8055522.jpg?x-oss-process=image/resize,m_pad,l_100/quality,Q_90)
![Hydraulic Electric Roll Grooving Machine with Foldable Legs for 1 Inch to 8 Inch Steel Pipes (RG-1A)](https://icdn.tradew.com/file/202402/1576146/jpg/8061626.jpg?x-oss-process=image/resize,m_pad,l_100/quality,Q_90)
![Hydraulic Electric Roll Grooving Machine with Foldable Legs for 1 Inch to 8 Inch Steel Pipes (RG-1A)](https://icdn.tradew.com/file/202402/1576146/jpg/8061625.jpg?x-oss-process=image/resize,m_pad,l_100/quality,Q_90)
![Hydraulic Electric Roll Grooving Machine with Foldable Legs for 1 Inch to 8 Inch Steel Pipes (RG-1A)](https://icdn.tradew.com/file/202402/1576146/jpg/8061624.jpg?x-oss-process=image/resize,m_pad,l_100/quality,Q_90)
Steel roll grooving machine for 1 inch -8 inch steel pipe for for piping systems & fire protection
- Categories
- Electric Hydraulic Roll Groover
- Brand
- Gruvmaster & Welping
- Model
- RG-1A
- Fabrication Capacity
- 1"-8"(DN25-DN200)SCH10/40 Steel Pipe
- Max Wall Thickness
- 8mm
- Output Speed
- 23RPM
- Power Supply
- 800W
- Packing Size
- 73*40*77cm
- Gross Weight
- 85KG
- FOB port
- Shanghai/Ningbo
- Terms of Payment
- L/C, D/A, D/P, Western Union
- Update Time
- Jul 27,2024
Detail Information
Pipe Roll Grooving Machine Video
Features of Electric Hydraulic Roll Groover Machine
● Model RG-1A Electric Hydraulic Roll Grooving Machine is designed to roll grooves on steel pipes and stainless steel from 1"-8" (DN25~DN200) SCH10/SCH40.
● Appropriate for various daily tasks involving fire-fighting pipes,this roll groover is a comprehensive tool that includes a motor, hydraulic feeding pump, foot switch, and pipe stand.
● The motor's built-in high-performance gear reduction system enables a compact design and reduced noise levels.
● The unique combination of the hydraulic feeding pump and the groove depth lock knob guarantees premium grooves and optimal efficiency.
● The roll grooving machine is equipped with a frame and swivel wheels for easy movement and transport.
● The pipe roll groover machine comes with foldable legs,easy for transportation
Pipe Roll Grooving Machine Parameter
![8inch roll groover](https://icdn.tradew.com/file/202402/1576146/jpg/8061628.jpg?x-oss-process=image/quality,Q_90)
Model: | RG-1A |
Suitable materials: | Carbon Steel,SS Pipe |
Fabrication Capacity: | 1"-8" Pipe SCH10/SCH40 |
Power supply: | 220V/110V |
Frequency: | 50HZ /60HZ |
Max wall thickness: | 8mm |
Motor power: | 800W |
Output speed: | 23RPM |
Packing gross weight: | 85kgs |
Packing size: | 98*66*87cm |
Standard Parts of RG-1C Roll Groover
Item Number | Description | Net weight | ||||
911042 | Drive roller 1"-1 1/2"(φ33-φ48) | 1.10kg | ||||
911043 | Drive roller 2"-6"(φ60-φ168) | 1.30kg | ||||
911044 | Drive roller 8" (φ219) | 1.40kg | ||||
912011 | Groove roller 1"-1 1/2"(φ33-φ48) | 0.40kg | ||||
912012 | Groove roller 2"-6"(φ60-φ168) | 0.45kg | ||||
912013 | Groove roller 8" (φ219) | 0.45kg | ||||
998078 | Pipe stand | 6.90kg | ||||
998033 | Pipe Stabilizer | 2.80kg | ||||
998026 | Foot Switch | 1.50kg |
Resources of RG-1A Roll Grooving Machine
Roll Grooving Machine Configuration
![8inch roll groover](https://icdn.tradew.com/file/202402/1576146/jpg/8042040.jpg?x-oss-process=image/quality,Q_90)
Hydraulic pump
High quality seal parts ensure long-term field usage without leaking
Fine-machined cylinder with accurate sizes
Proper-hardened piston rod of long-life
Built-in groove depth adjusting rod
![8inch roll groover](https://icdn.tradew.com/file/202402/1576146/jpg/8061634.jpg?x-oss-process=image/quality,Q_90)
Casting part
Reinforced cast iron housing for hydraulic pump, roller sets, pipe stabilizer
Support color customization
Balanced structure withstands tough jobs
![8inch roll groover](https://icdn.tradew.com/file/202402/1576146/jpg/8061631.jpg?x-oss-process=image/quality,Q_90)
Tool Box
The toolbox above the roll groover machine body facilitates users to place wrenches and other tools ,easy stock of roll sets, tools and parts
![roll groover machine](https://icdn.tradew.com/file/202402/1576146/jpg/8061636.jpg?x-oss-process=image/quality,Q_90)
Foldable Legs
Folding legs for easy storage of the roll groove machine, also facilitating transportation for workers.
![roll groover machine](https://icdn.tradew.com/file/202402/1576146/jpg/8041961.jpg?x-oss-process=image/quality,Q_90)
Roll Sets
Available in sizes:1"-1 1/2", 2"-6",8"
For Steel pipe 1"-8" SCH10/40
High strength steel, hardened to withstand long-time usage
![roll groover machine](https://icdn.tradew.com/file/202402/1576146/jpg/8041962.jpg?x-oss-process=image/quality,Q_90)
Pipe Stand
Quick size adjustable rods, fine-machined slots with latch
Steel ball heads,for smooth rotation,forward-backward moving of pipe
Adjustable height to suit different size pipes:1"-8"
![roll groover machine](https://icdn.tradew.com/file/202402/1576146/jpg/8042072.jpg?x-oss-process=image/quality,Q_90)
Foot Switch
![roll groover machine](https://icdn.tradew.com/file/202402/1576146/jpg/8042104.jpg?x-oss-process=image/quality,Q_90)
Pipe Stablizer
Pipe Roll Grooving Machine Comparasion
![roll groover machine](https://icdn.tradew.com/file/202402/1576146/jpg/8054994.jpg?x-oss-process=image/quality,Q_90)
