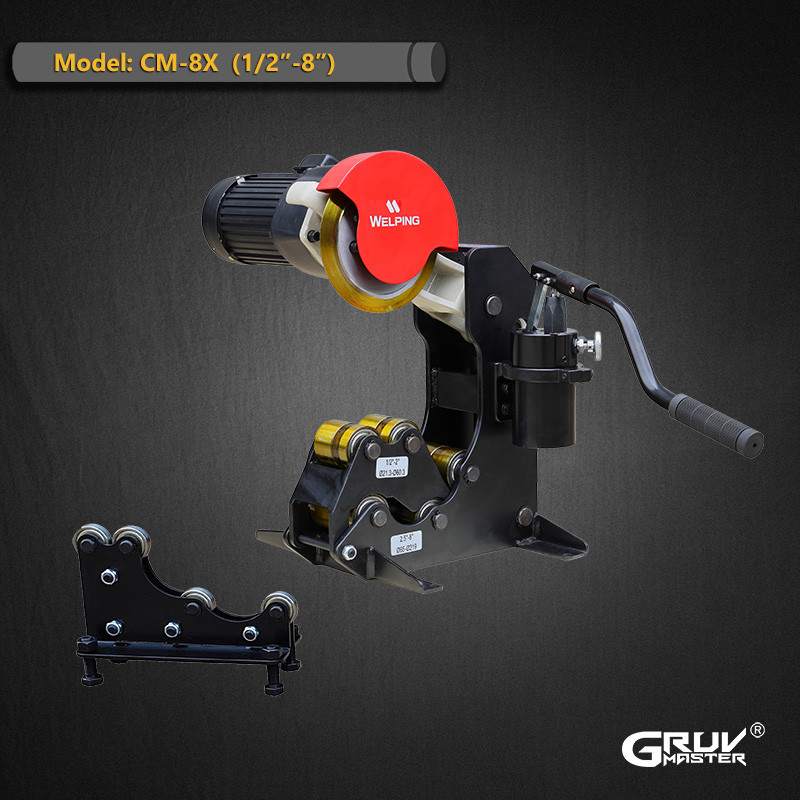

Electric Hydraulic Pipe Cutting Machine for Steel Pipe 1/2"-8" (CM-8X)
Electric Hydraulic Pipe Cutting Machine for Steel Pipe 1/2"-8" (CM-8X)
Gruvmaster offer a full range of cold cutting machines & equipment from 1/2" to 20" for fabrication and pipeline applications.
- Categories
- 1/2"-8" Pipe Cutting Machine
- Brand
- Gruvmaster & Welping
- Model
- CM-8X
- Grooving Capacity
- 1/2-8inch
- Power Supply
- 700W
- Output Speed
- 30RPM
- Max Wall Thickness:
- 6mm
- FOB port
- Shanghai/Ningbo
- Terms of Payment
- L/C, D/A, D/P, Western Union, T/T, Paypal
- Update Time
- Nov 1,2024
Detail Information
Hydraulic Pipe Cutter Machine Video
Features of Electric Hydraulic Pipe Cutting Machine
● Model CM-8X Electric Hydraulic Pipe Cutting Machine is designed to cut steel pipes and stainless steel from 1/2"-8" (DN15~DN200) .
● It can cut a wide range of pipes, including steel pipes, stainless steel pipes, PE pipes, making it suitable for diverse industrial applications.
● Electric hydraulic systems provide high accuracy in cutting, ensuring clean and precise cuts every time. This is crucial for industries where accuracy is paramount.
● Constructed with high-quality materials and components, electric hydraulic pipe cutting machines are robust and durable, capable of withstanding heavy-duty usage in industrial environments.
● The electric pipe cutting machine operates through a cold cutting process, ensuring that no sparks are generated during the cutting of steel pipes. This characteristic is particularly advantageous in environments where the presence of sparks could pose safety hazards, such as in oil and gas facilities or areas with flammable materials.
● Cold cutting not only eliminates the risk of fire but also helps maintain the integrity of the material being cut by avoiding heat-affected zones and preserving the structural properties of the steel. As a result, electric pipe cutting machines provide a safe and efficient solution for industries requiring precise and spark-free cutting of steel pipes.
Pipe Cutting Machine Parameter
Model: | CM-8X |
Suitable materials: | Carbon Steel,SS Pipe |
Fabrication Capacity: | 1/2"-8" Steel Pipe |
Power supply: | 220V/110V |
Frequency: | 50HZ /60HZ |
Max wall thickness: | 6mm |
Motor power: | 700W |
Output speed: | 30RPM |
Packing gross weight: | 68kgs |
Packing size: | 65*45*70cm |
Ordering Information
Item Number | Phase | Power | ||||
900060 | Single | 700W,220V,50/60HZ | ||||
900061 | Single | 700W,110V,50/60HZ |
Standard Parts of CM-8X Pipe Cutter
Item Number | Description | Net weight | ||||
998161 | Pipe stand for 1/2"-8" | 6.00kg | ||||
912019 | Cutting Wheel | 1.25kg |
Optional Parts of CM-8X Pipe Cutter
Item Number | Description | Net weight | ||||
912019 | Stainless steel cutting wheel | 1.25kg |
Resources of CM-8X Pipe Cutter machine
Pipe Cutting Machine Configuration
Wide Application
It can cut a wide range of pipes, including steel pipes, stainless steel pipes, PE pipes, making it suitable for diverse industrial applications.
Roller Support for 1/2"-2" Pipe
The roller support can meet the cutting processing of smaller sizes, such as cutting small diameter pipes from 1/2 inch to 2 inches
Roller Support for 2"-8" Pipe
Suitable for supporting pipe diameter above 2inch. The combination of the two types of roller makes the pipe cutting machine more diversified, enabling processing from small to large sizes.
Pipe Stand
Stability and Safety.By securely holding the pipes in place, the pipe supports prevent damage due to external forces such as vibration
Cutting Wheel
Available in sizes:1/2"-20"
For Steel pipe 1/2"-20" SCH10/40
High strength steel, hardened to withstand long-time usage
Stainless Steel Cutting Wheel (For Option)
manufactured from high-quality stainless steel alloys, providing excellent strength and toughness. This enables them to cut through tough materials with ease, including stainless steel pipes
Pipe Cutting Machine Comparasion
