Electric Hydraulic Roll Grooving Machine for 1″–8″ Steel Pipes with Mobile Stand（RG-1C）
· Grooves 1″–8″ steel and stainless steel pipes
· Manual hydraulic feed for controlled grooving
· Four-wheel stand with a transport handle
· Adjustable groove depth stop for repeatable results
· Manual hydraulic feed for controlled grooving
· Four-wheel stand with a transport handle
· Adjustable groove depth stop for repeatable results
Detail Information

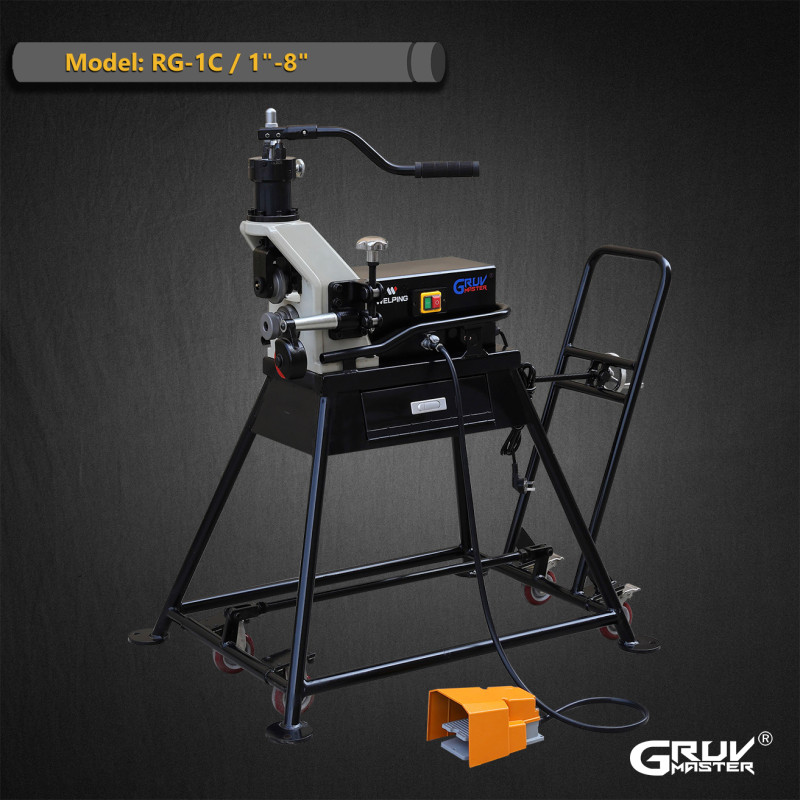

RG-1C Electric Hydraulic Roll Grooving Machine
For 1″–8″ Pipes | Four-Wheel Mobile Stand with Transport Handle
RG-1C Roll Grooving Machine Overview
Controlled Hydraulic Grooving with Easy Mobility
· The RG-1C grooves 1″–8″ (DN25–DN200) steel and stainless steel pipes, with interchangeable rollers for different pipe sizes.
· A gear reduction motor drives pipe rotation, while the manual hydraulic pump allows gradual, controlled roller feeding.
· The four-wheel mobile stand and transport handle make it easy to move and reposition the machine around the workshop.
· An adjustable groove depth stop helps maintain consistent groove depth when processing pipes of the same specification.
Pipe Roll Grooving Machine Parameter
Model: | RG-1C |
Suitable materials: | Carbon Steel, SS Pipe |
Fabrication Capacity: | 1"-8" Pipe SCH10/SCH40 |
Power supply: | 220V / 110V |
Frequency: | 50HZ / 60HZ |
Max wall thickness: | 8mm |
Motor power: | 800W |
Output speed: | 23RPM |
Packing gross weight: | 128kgs |
Packing size: | 100*74*130cm |
Standard Parts of RG-1C Roll Groover
Item Number | Description | Net Weight | ||||
911042 | Drive roller 1"-1 ½" (Φ33-Φ48) | 1.10 KG | ||||
911043 | Drive roller 2"-6" (Φ60-Φ168) | 1.30 KG | ||||
911044 | Drive roller 8" (Φ219) | 1.40 KG | ||||
912011 | Groove roller 1"-1 ½" (Φ33-Φ48) | 0.40 KG | ||||
912012 | Groove roller 2"-6" (Φ60-Φ168) | 0.45 KG | ||||
912013 | Groove roller 8" (Φ219) | 0.45 KG | ||||
998078 | Pipe stand for 1"~8" (Φ33~Φ219) | 6.90 KG | ||||
998026 | Foot Switch | 1.50 KG | ||||
Resources of RG-1B Roll Grooving Machine
Roll Grooving Machine Configuration

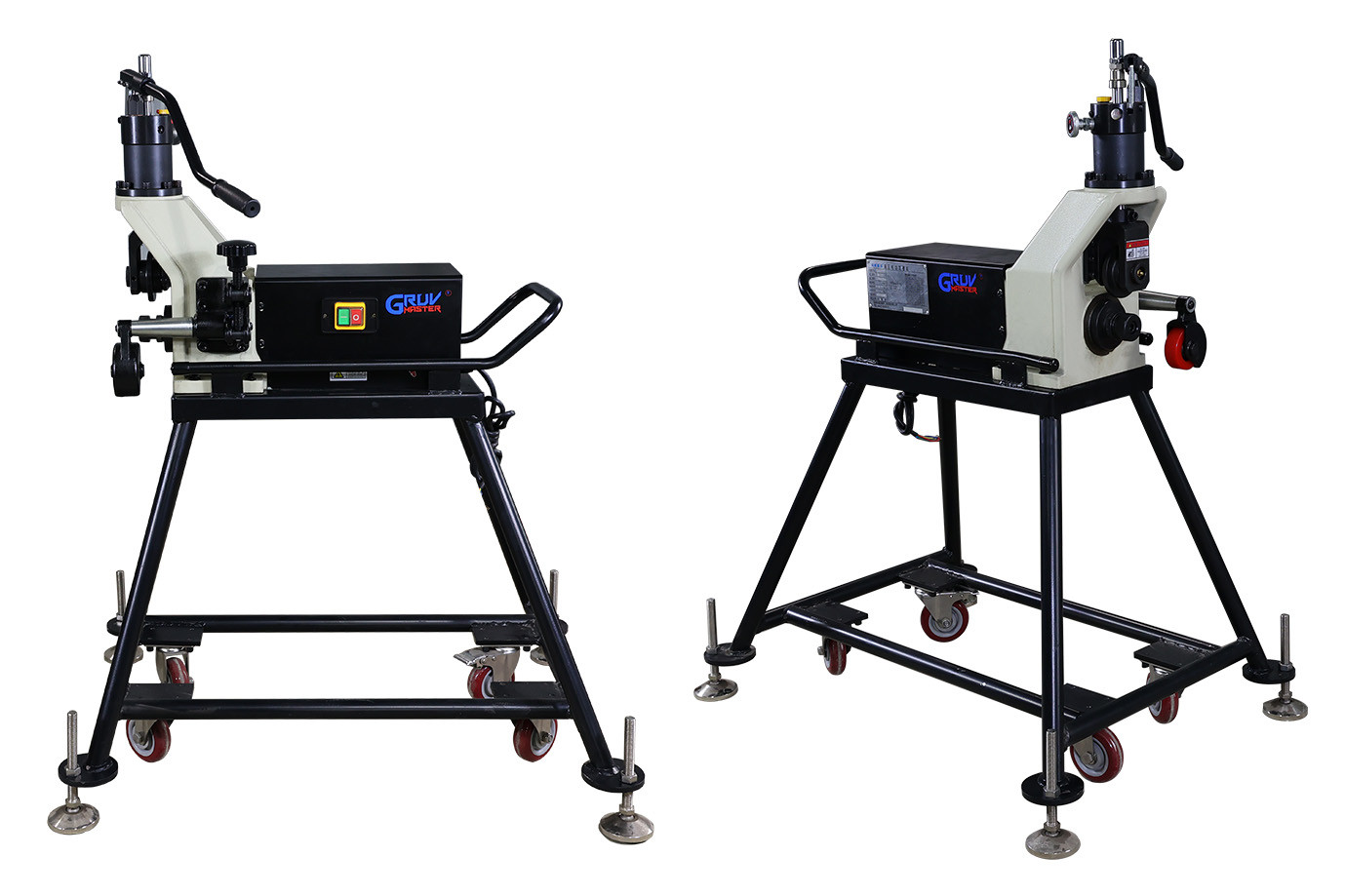

Four-Wheel Mobile Stand
Four wheels and a transport handle make it easy to move and reposition the machine around the workshop.

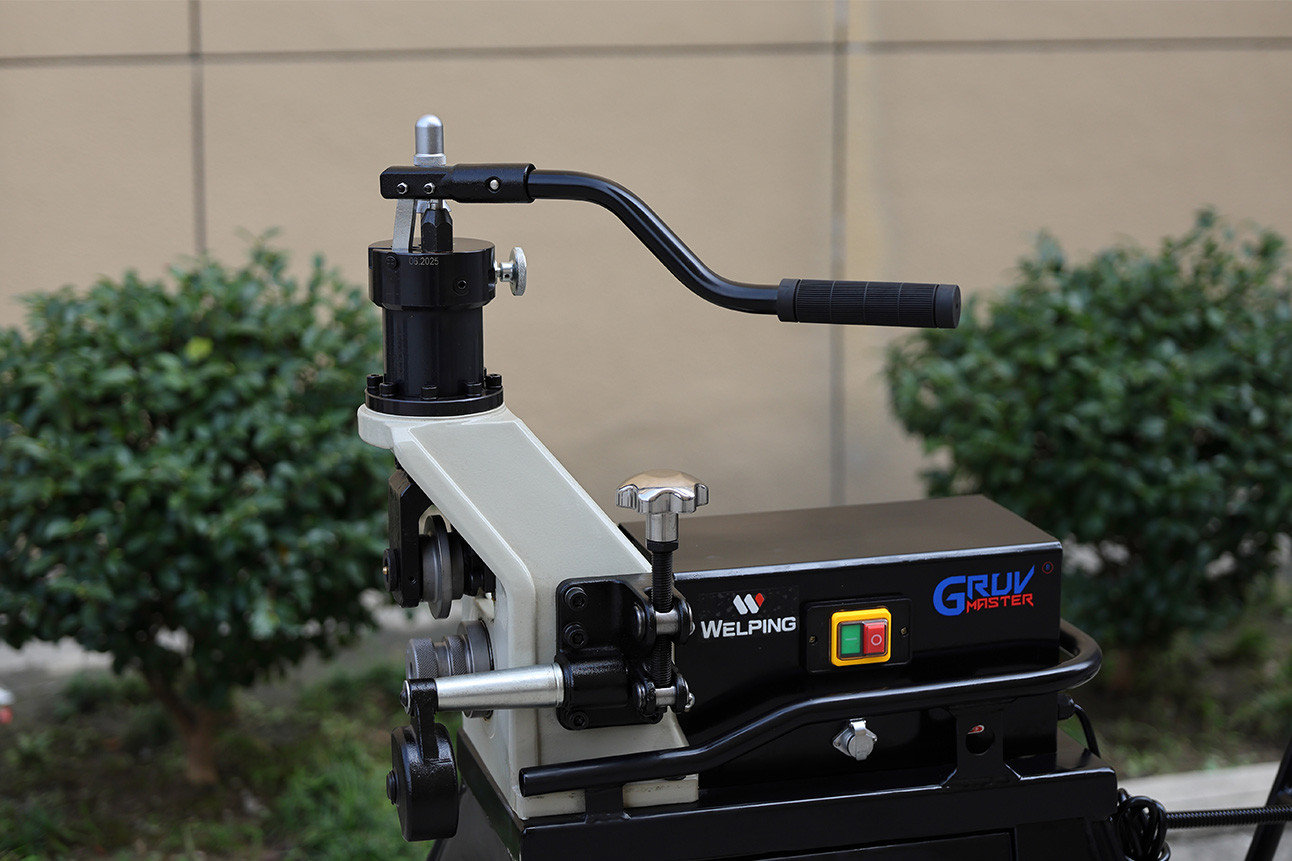

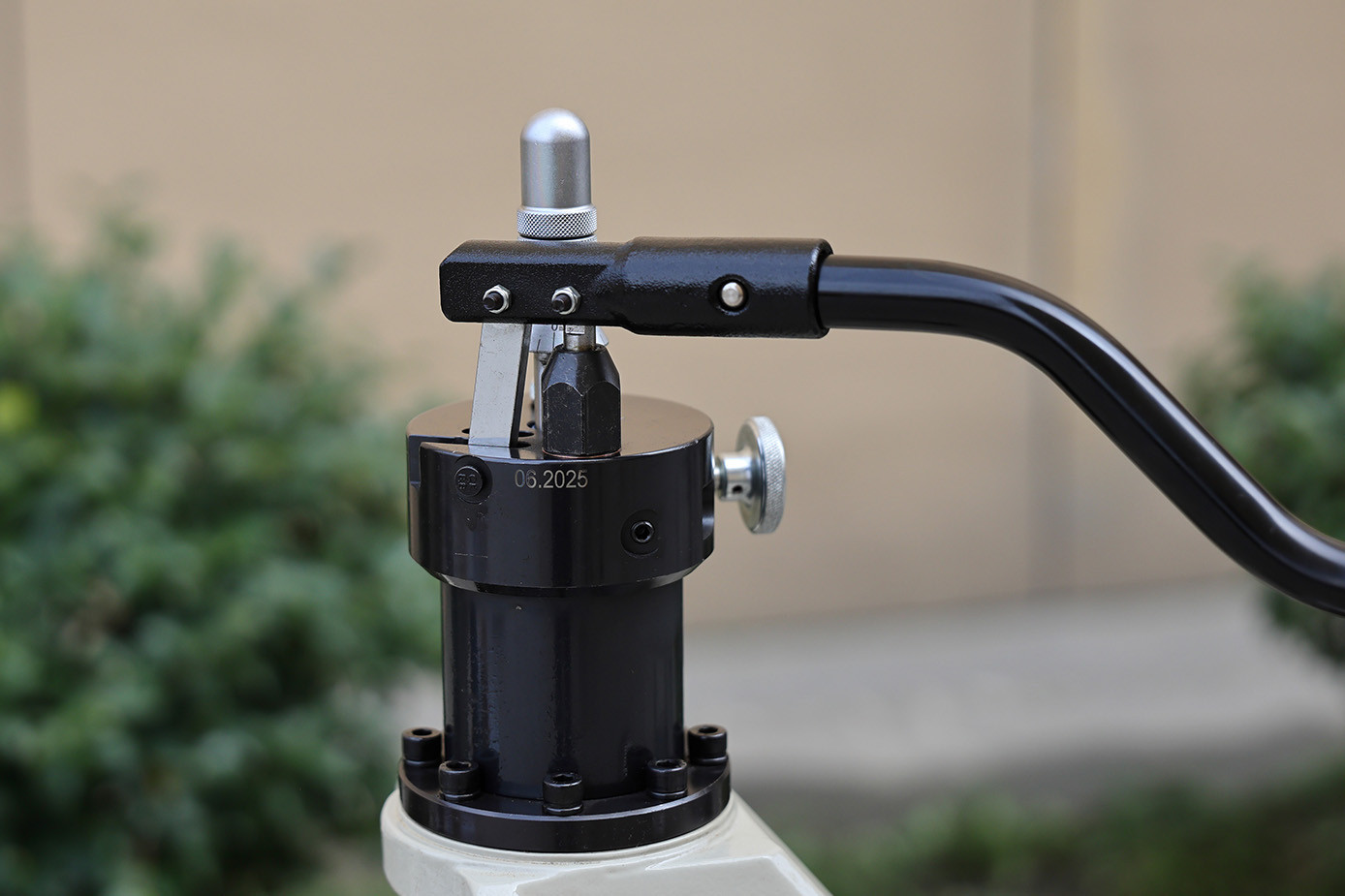

Manual Hydraulic Feed
The manual hydraulic pump gradually lowers the upper roller, allowing controlled feeding to suit the pipe being grooved.
Adjustable Groove Depth Stop
The adjustable depth stop simplifies groove depth setting and reduces repeated adjustments when processing pipes of the same specification.

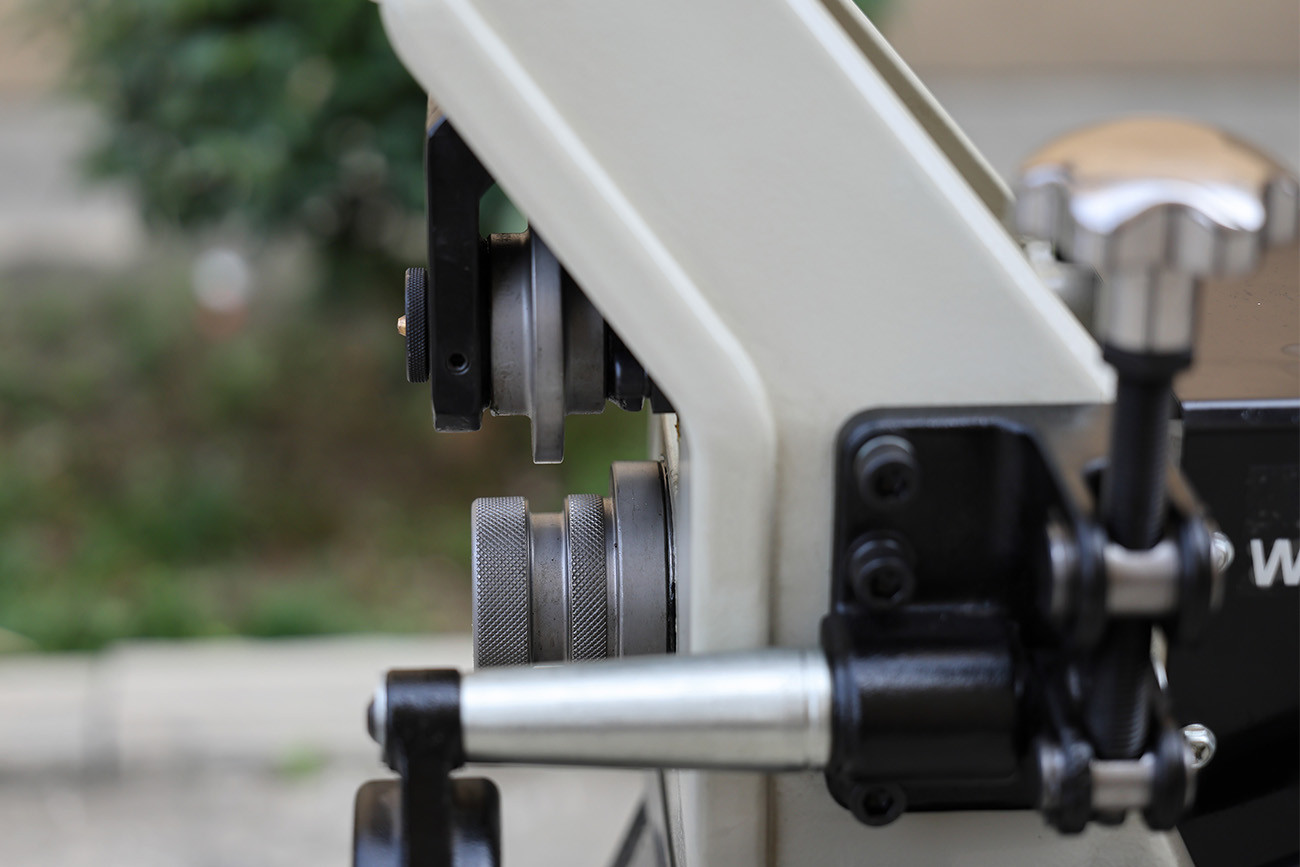

Interlocking Roller Design
The interlocking roller design helps maintain the relative position of the upper and lower rollers for more stable grooving.

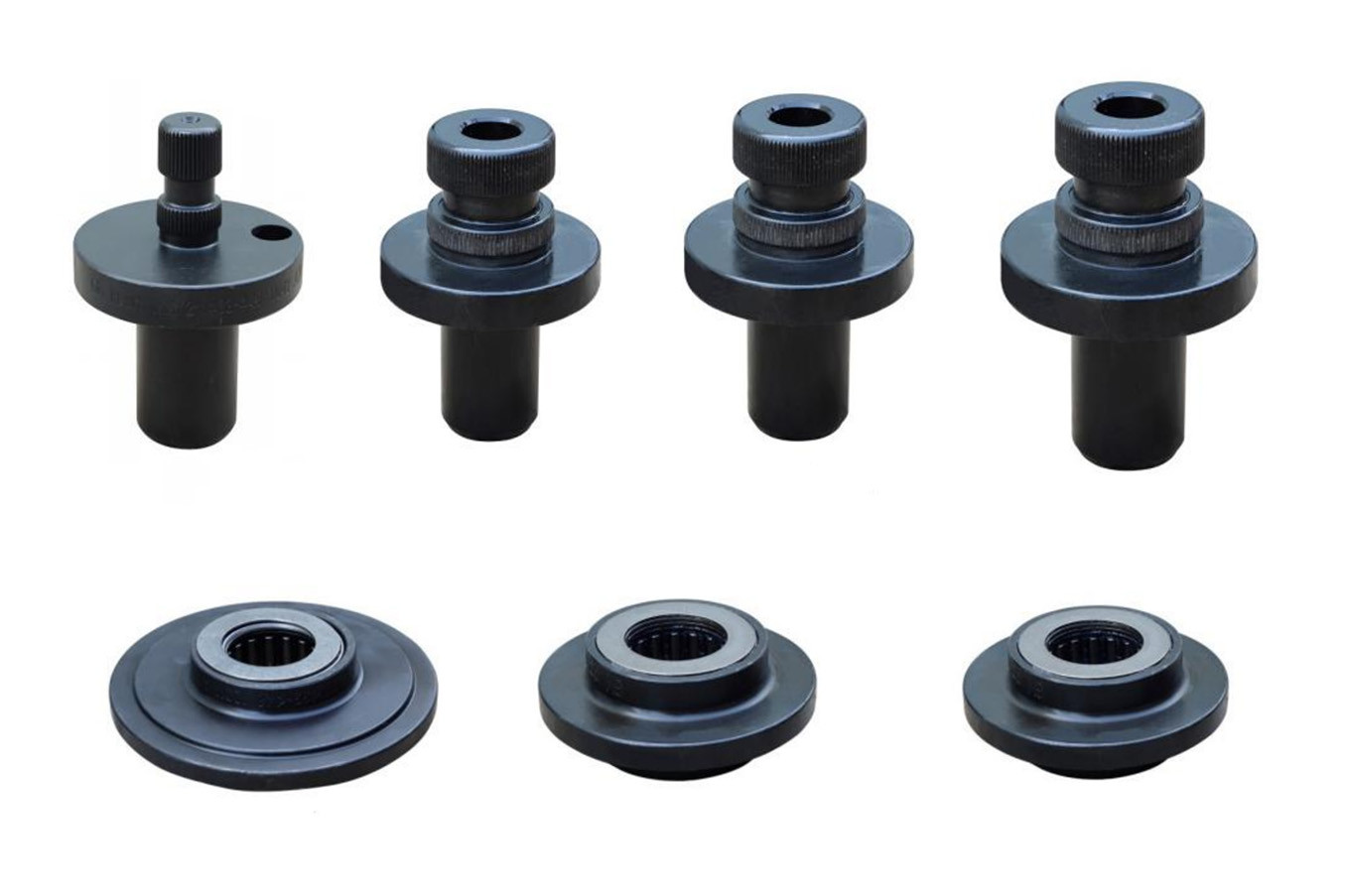

Interchangeable Roller Sets
Interchangeable drive and groove rollers accommodate pipe sizes from 1″ to 8″, with matched sets for different pipe sizes.

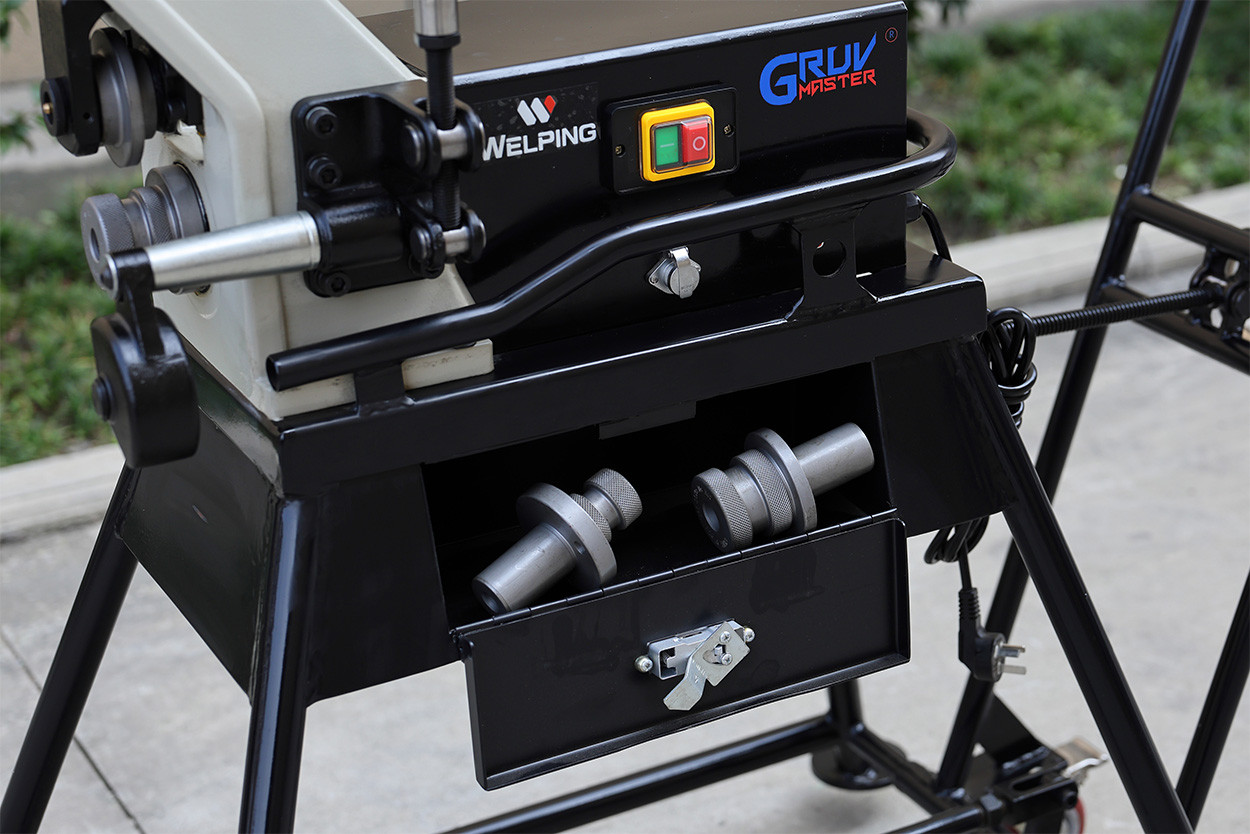

Built-In Roller Storage
A built-in toolbox keeps replacement roller sets organized and within easy reach.

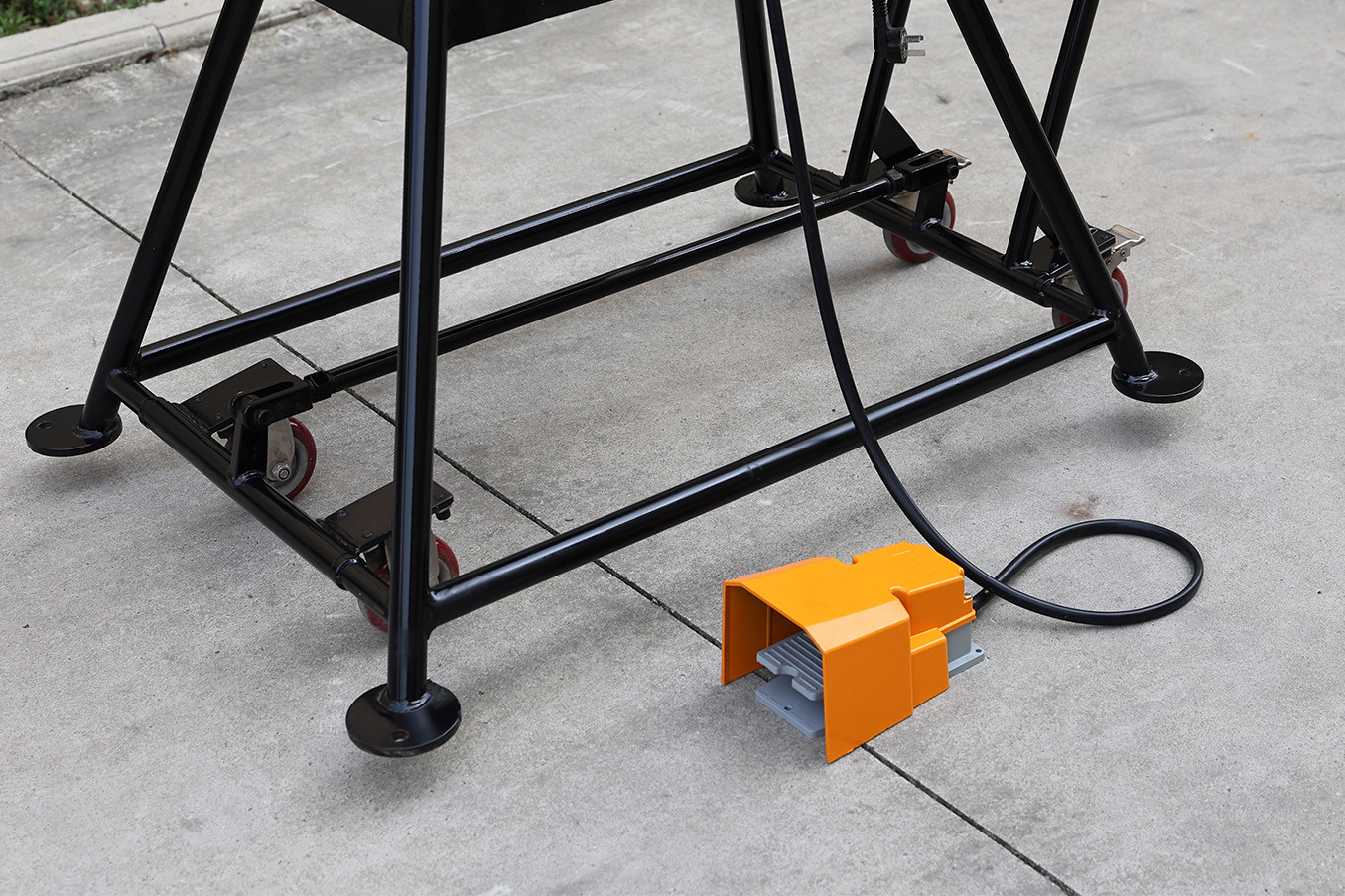

Press-to-Run Foot Switch
Press the pedal to run the machine and release it to stop. Foot control allows convenient stopping without reaching for the power switch.

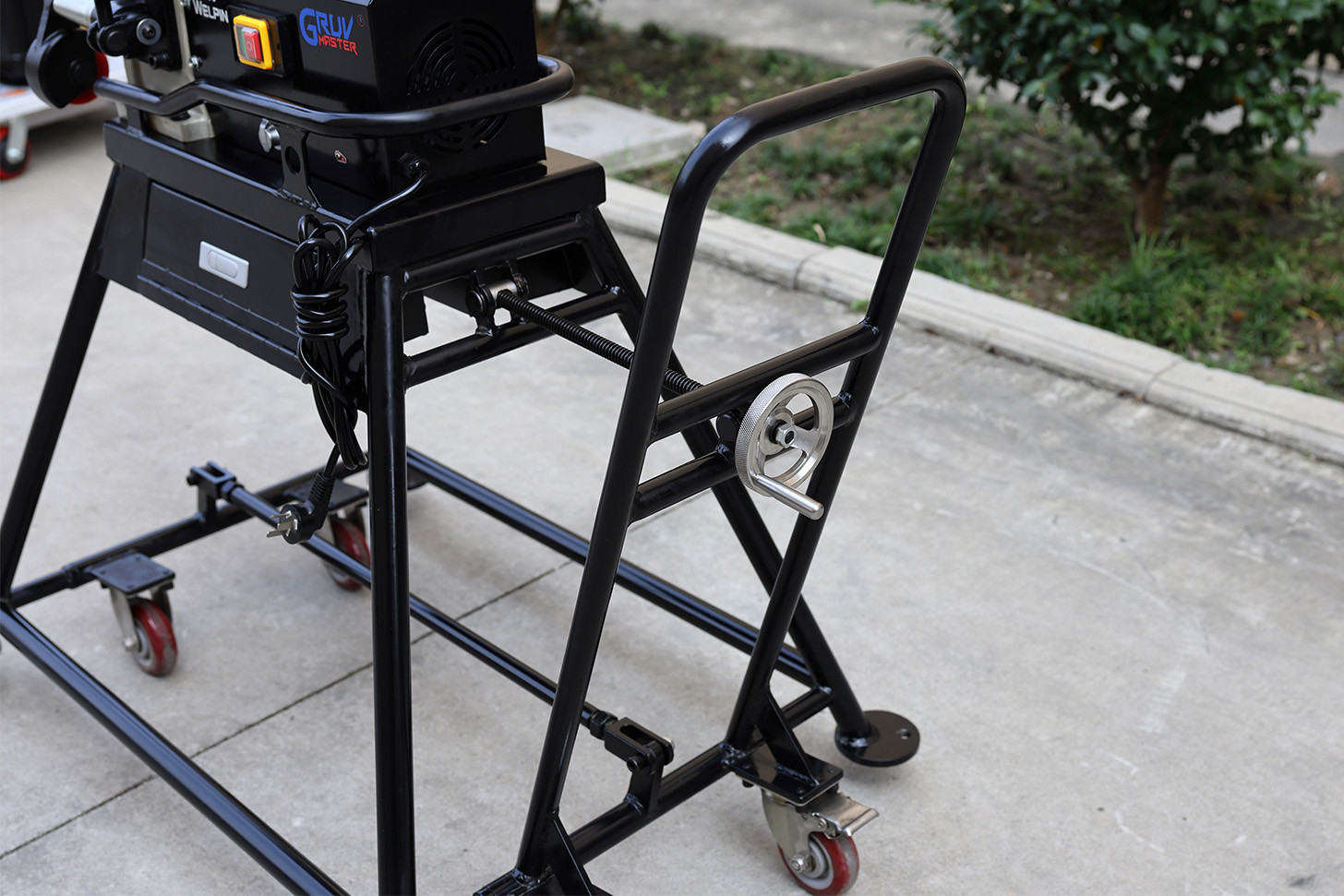

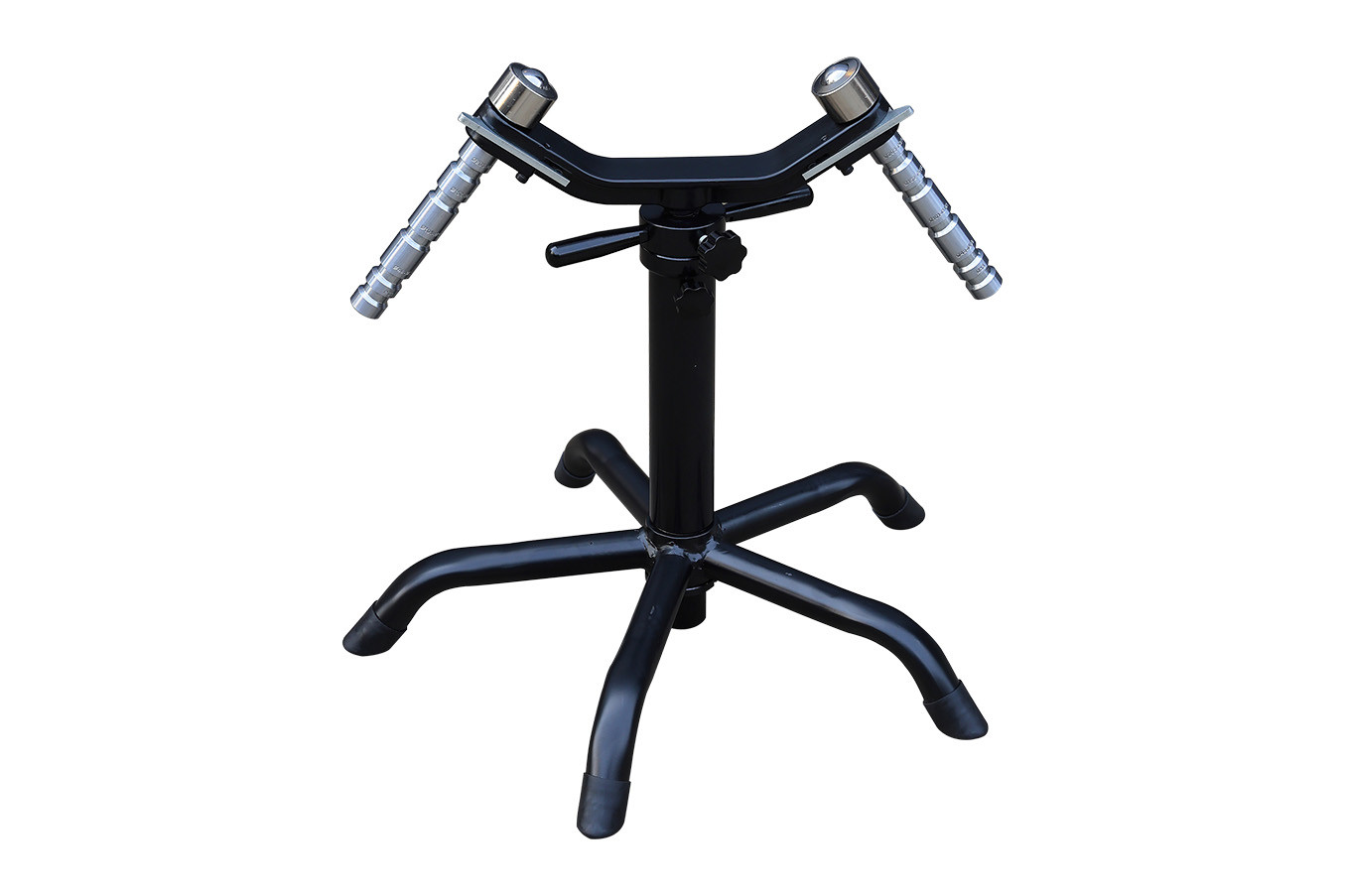

Height-Adjustable Pipe Stand
The height-adjustable pipe stand supports the pipe and helps align it with the machine’s working height.
Pipe Roll Grooving Machine Comparasion
